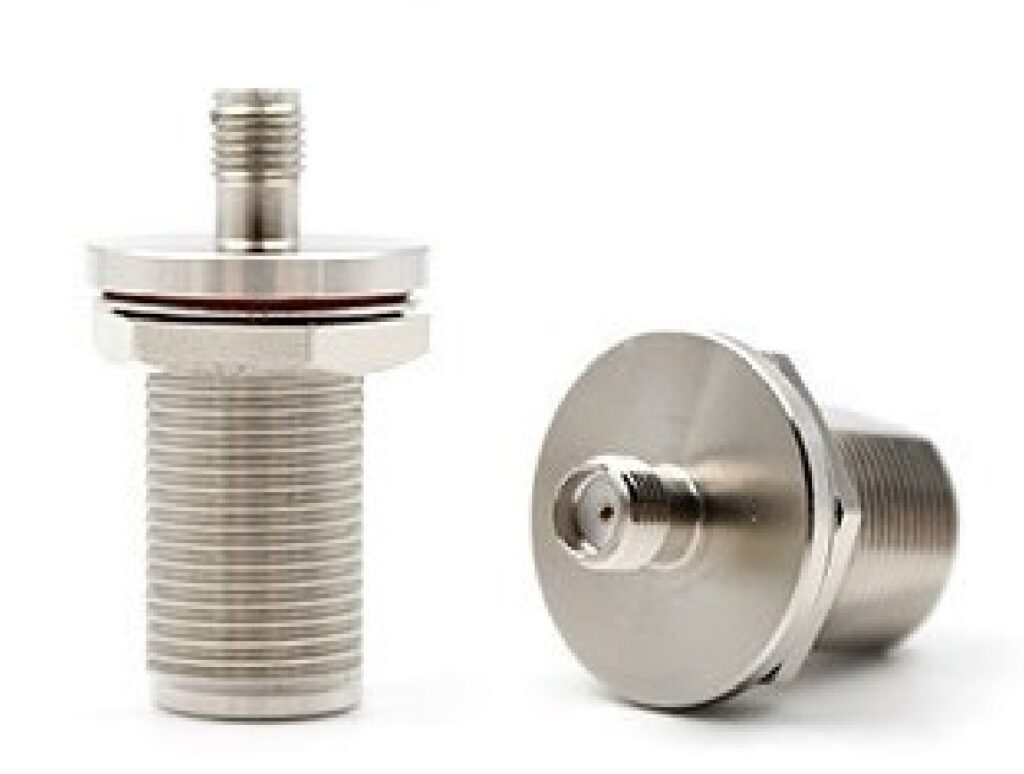

N to SMA Adaptor
ADNS052
RF Adaptor to convert between N Female to SMA Female Bulkhead Adaptor.
| Electrical | |
| Impedance | 50Ω |
| Frequency Range | DC ~ 11GHz |
| Dielectric Withstanding Voltage | 1000V |
| Insulation Resistance | ≧5000MΩ |
| VSWR | ≦1.20@6GHz |
| Durability | >500 cycles |
| Mechanical | |
| Connector Dimensions | 34.4mm * Ø21.5mm |
| Connector 1 Type | N Female |
| Connector 2 Type | SMA Female |
| Salt Spray | MIL-STD-202, Method 101, Cycle repeated 48hrs |
| Environmental | |
| Hazardous Material Regulation | RoHS compliant |
| Operating Temperature | -55°c to +125°c |
-
Type: RF Adapters
