Calvus

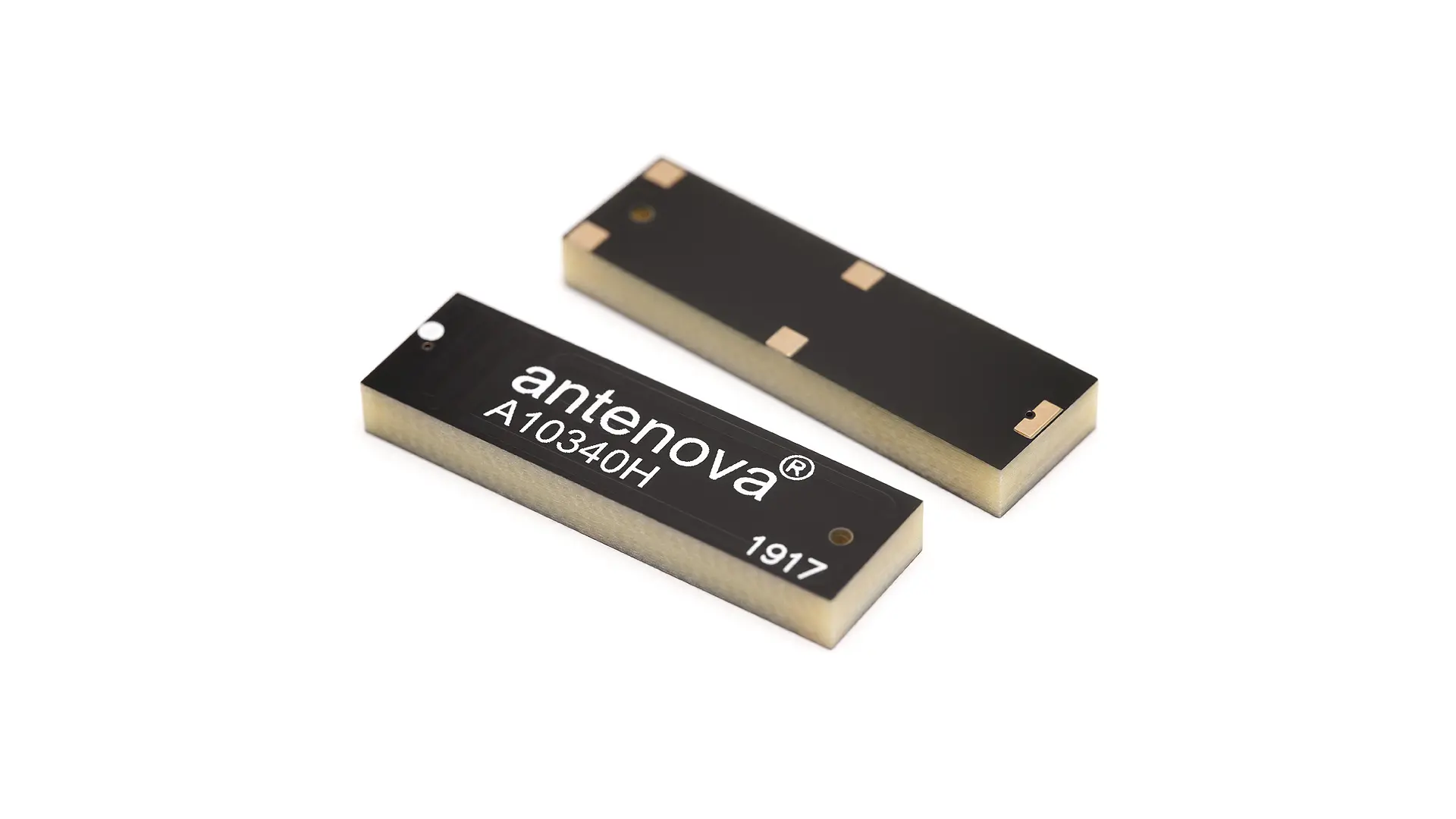

A10340H - Embedded 3G / 2G / Cellular Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Surface Mount |
|---|---|
| Product P/N | A10340H |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 27.0 × 8.0 × 3.2 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Frequency (MHz) | 824-960, 1710-2170 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-6.0 |
| VSWR | ~3.2:1, ~3.0:1 |
| Efficiency (%) | ~65,~65 |
| Average Gain (dB) | ~-1.8, ~-1.6 |
| Peak Gain (dBi) | ~1.7, ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna supports the GSM/GPRS/EDGE, CDMA2000, UMTS bands. Suitable for Pico-basestations and remote monitoring applications. It uses a ground plane to radiate efficiently but requires clearance under the antenna.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
824-2170 MHz Frequency Range
3.0 dBi CELLULAR Peak Gain
up to 65% CELLULAR Efficiency
Applications
Wearables
Mobile Networks
Cellular Networks
Machine Control
Asset Tracking and Security
Civil Applications
Automotive
Telecommunication
Broadband Communications
Wireless Security System
Energy Monitoring
Air Quality and Pollution Monitoring
Telemetry / Telematics
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
