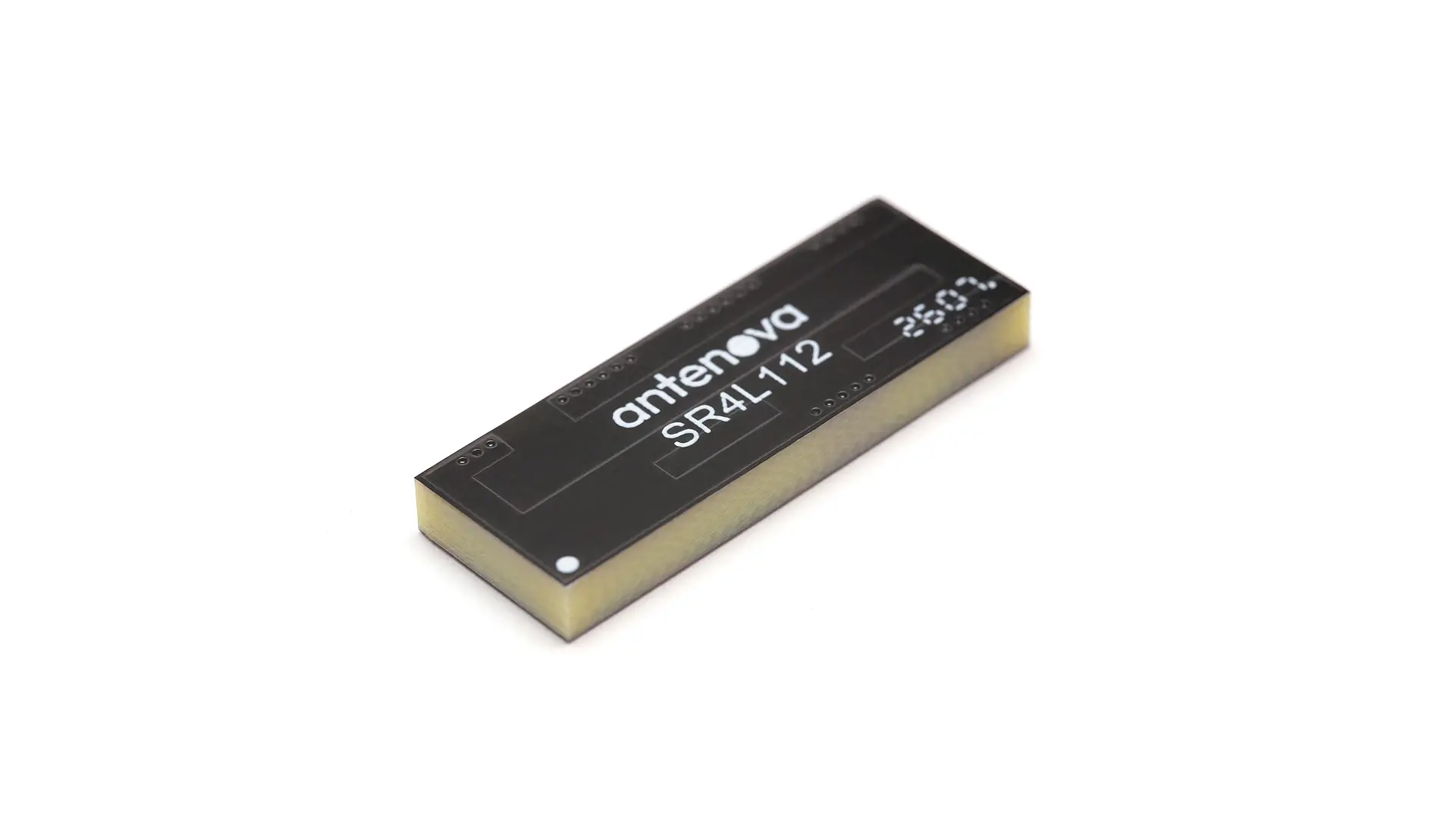

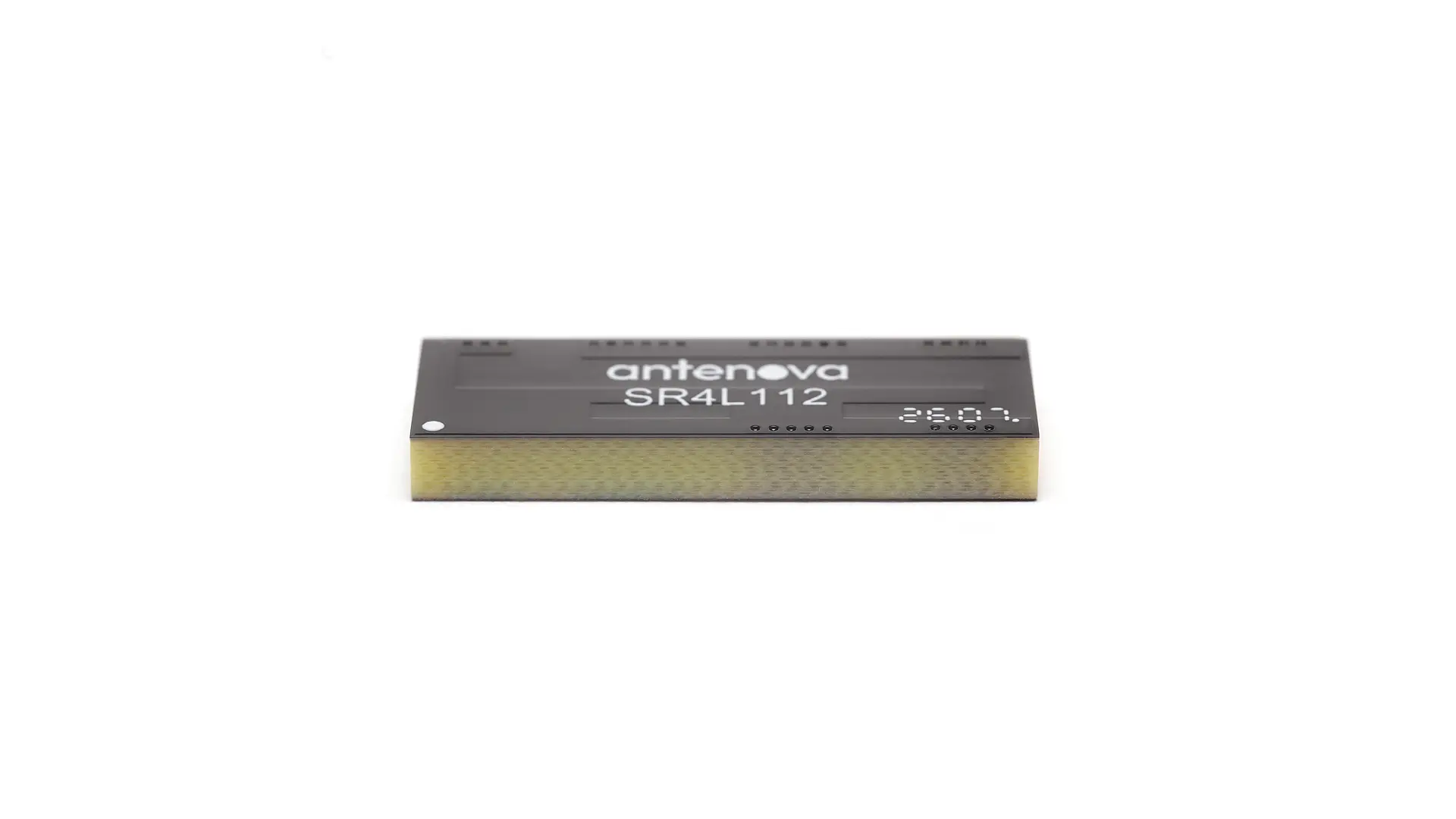

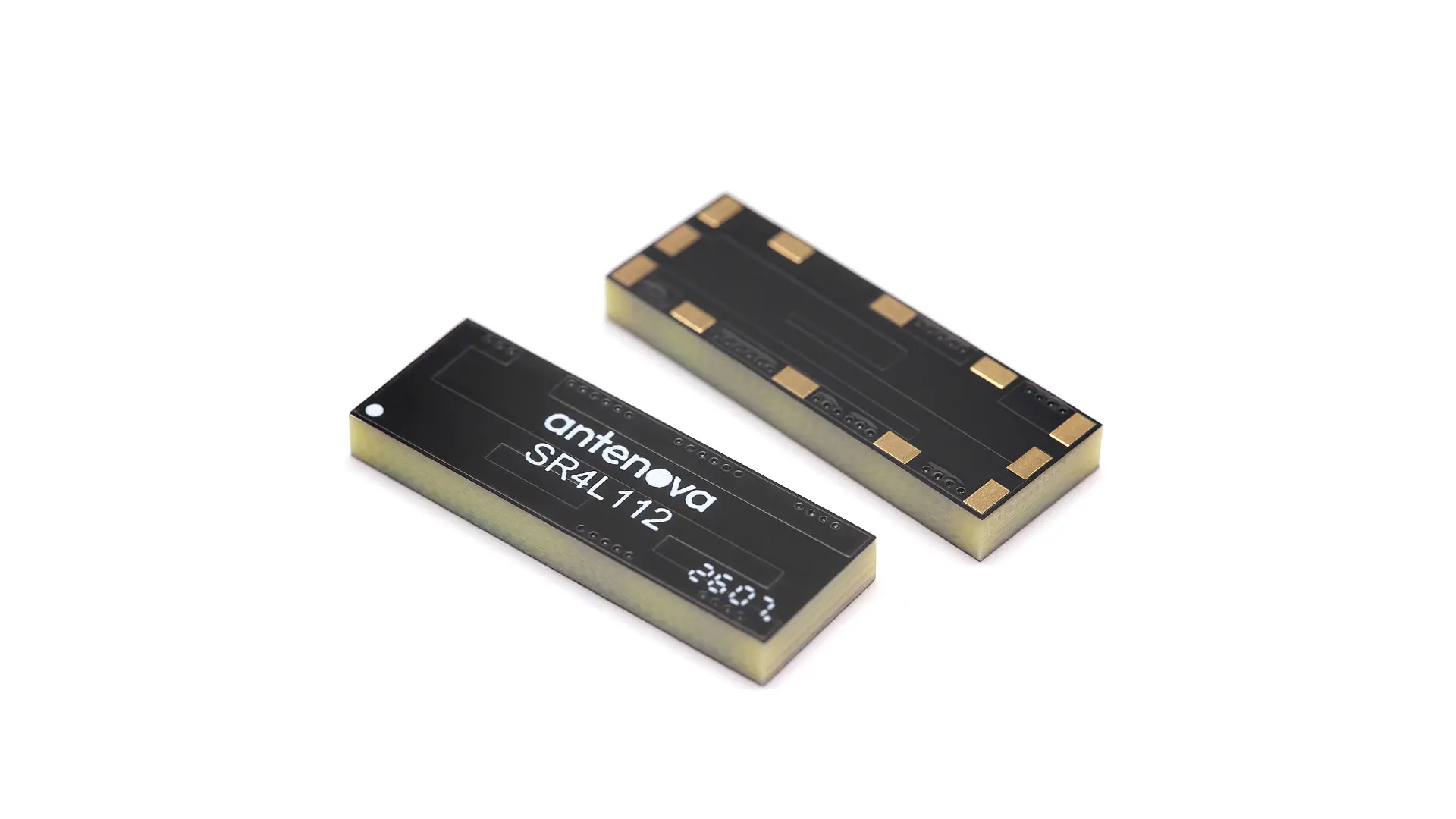

SR4L112 - Embedded 4G LTE / Cellular / LPWA / NB-IoT Passive FR4 Chip Surface Mount SMD Antenna
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | SMD Surface Mount Rigid |
|---|---|
| Product P/N | SR4L112 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 28 × 10 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-960, 1710-2200, 2300-2400, 2500-2700 |
|---|---|
| Return Loss (dB) | ~-9.0, ~-8.3, ~-5.7, ~-9.4 |
| VSWR | ~2.1:1, ~2.3:1, ~3.2:1, ~2.0:1 |
| Efficiency (%) | ~67,~66,~57,~68 |
| Average Gain (dB) | ~-1.8,~-1.8,~-2.5,~-1.7 |
| Peak Gain (dBi) | ~3.2,~4.4,~4.4,~5.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A surface-mount antenna to be soldered onto a PCB. The antenna operates on the most common 4G bands: LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz), and LTE B40 (2300 – 2400MHz).
Key Features
Passive FR4 Chip Antenna
Wide band 4G LTE Antenna
Ground Plane Dependent
5.6 dBi 4G LTE Peak Gain
up to 68% 4G LTE Efficiency
698-2700 MHz Frequency Range
