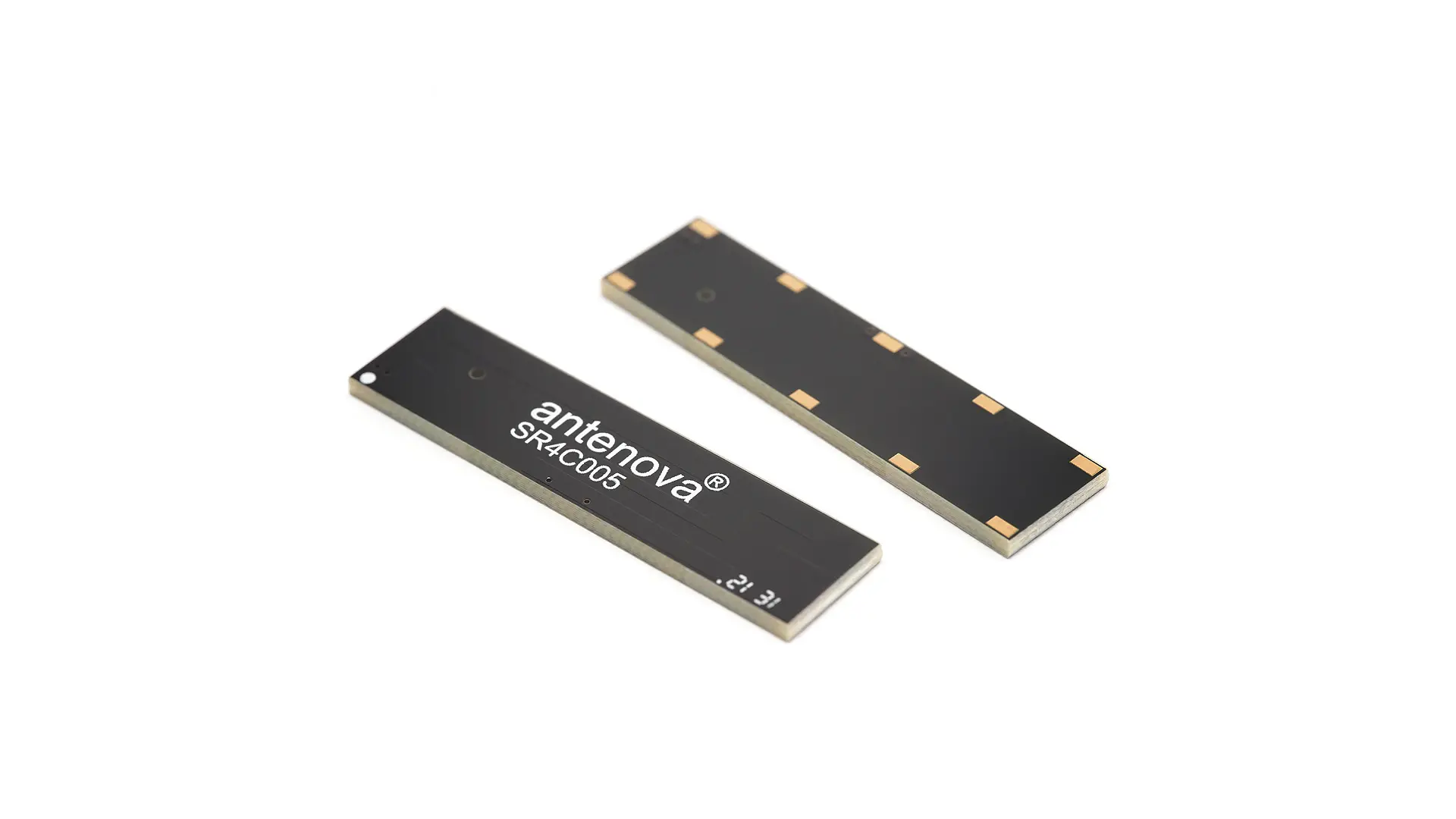

SR4C005 - Embedded 4G LTE / Cellular / LPWA / NB-IoT Passive FR4 Chip Surface Mount SMD Antenna
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | SMD Surface Mount Rigid |
|---|---|
| Product P/N | SR4C005 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 40.0 × 10.0 × 1.7 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.0, ~-7.0, ~-10.0, ~-9.0 |
| VSWR | ~3.4:1, ~2.4:1, ~1.9:1, ~1.9:1 |
| Efficiency (%) | ~56,~60,~65,~66 |
| Average Gain (dB) | ~-2.5,~-2.2,~-1.9,~-1.8 |
| Peak Gain (dBi) | ~1.3,~3.4,~3.7,~4.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low-profile antenna, that is ideal for 3G single and MIMO antenna systems. Applications are Pico-basestations, portable devices, remote monitoring, smart meters, and wearable devices.
Key Features
Passive FR4 Chip Antenna
Ground Plane Dependent
Wide band 4G LTE Antenna
4.1 dBi 4G LTE Peak Gain
up to 66% 4G LTE Efficiency
824-2690 MHz Frequency Range
