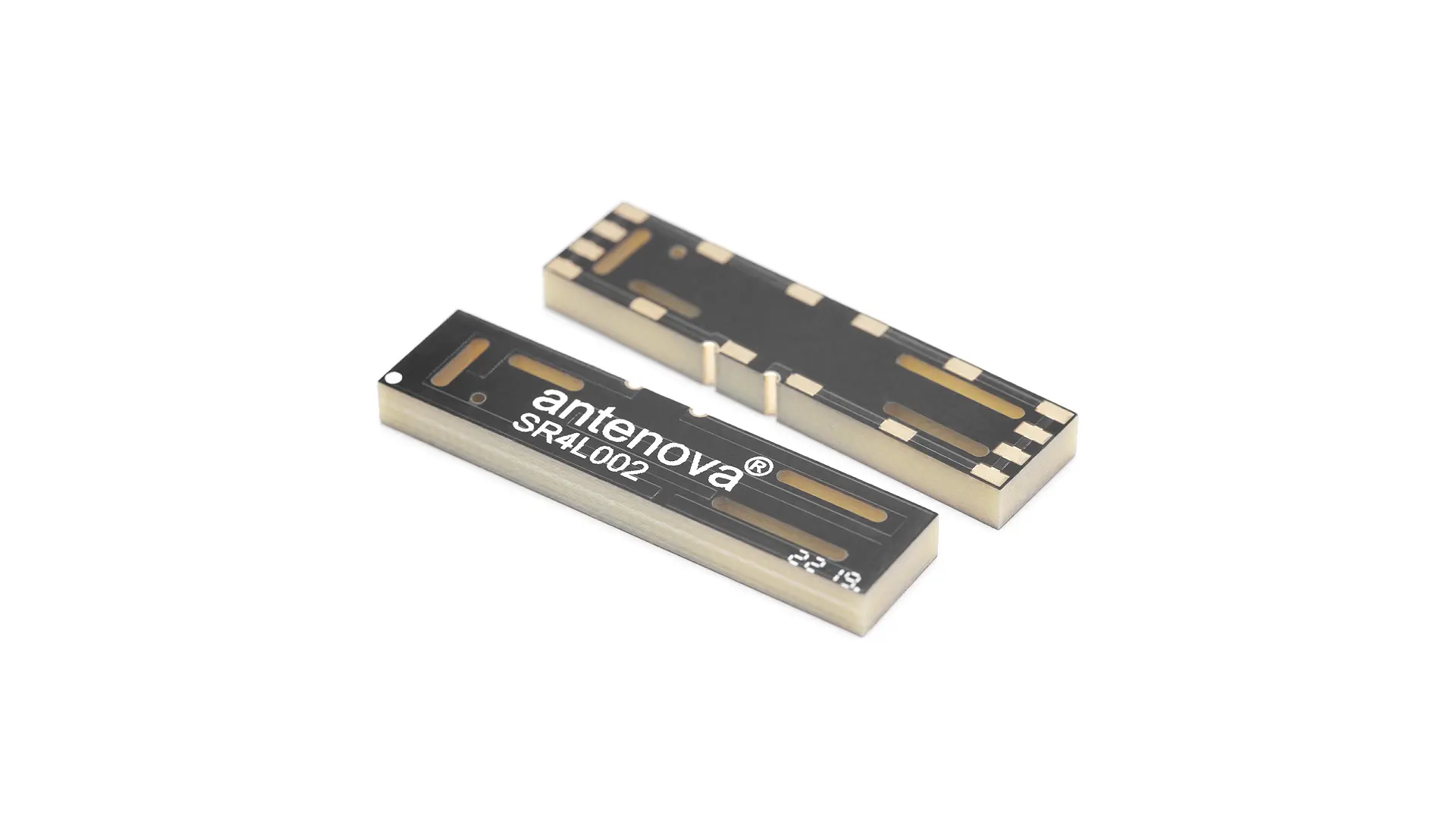

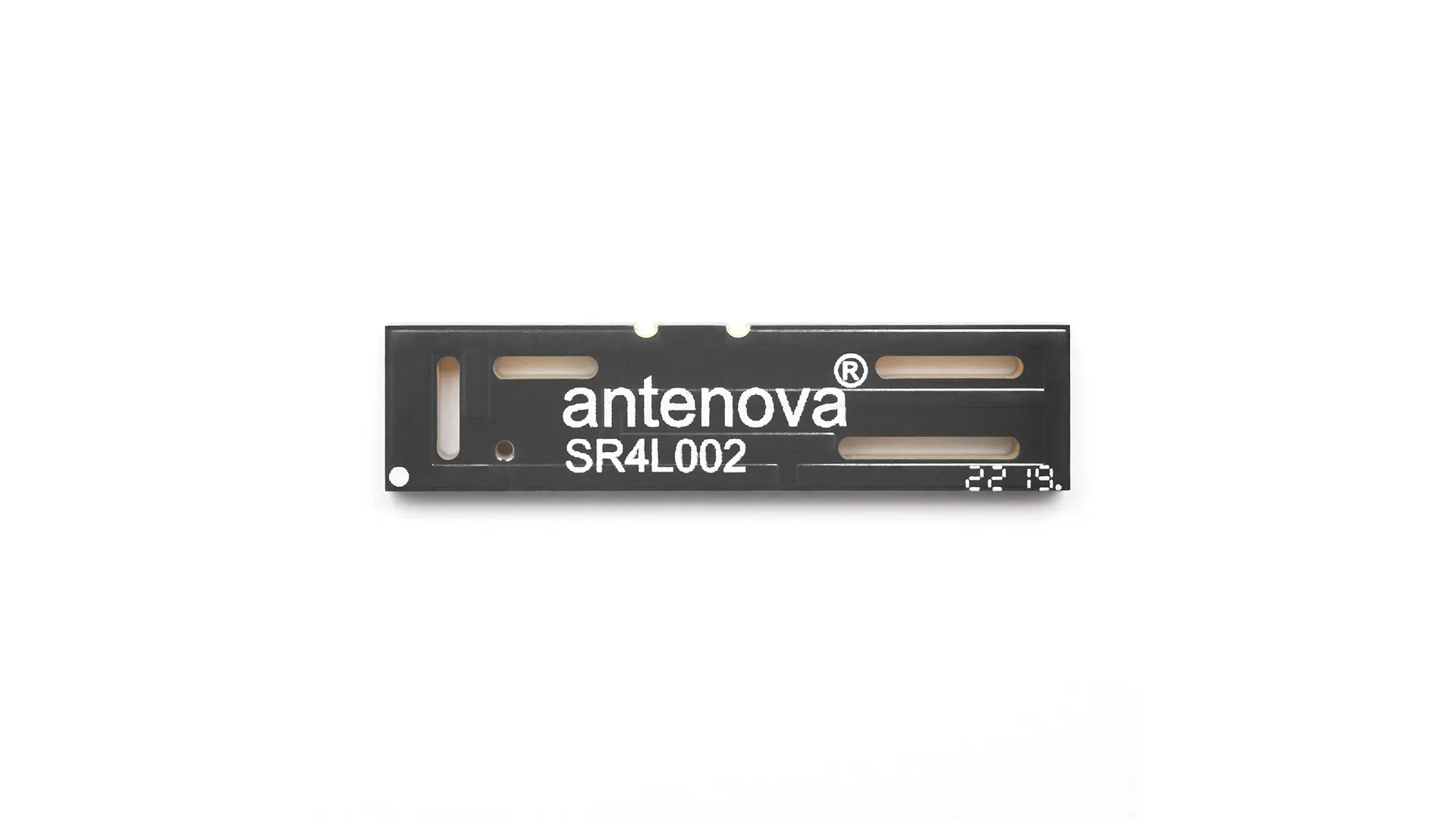

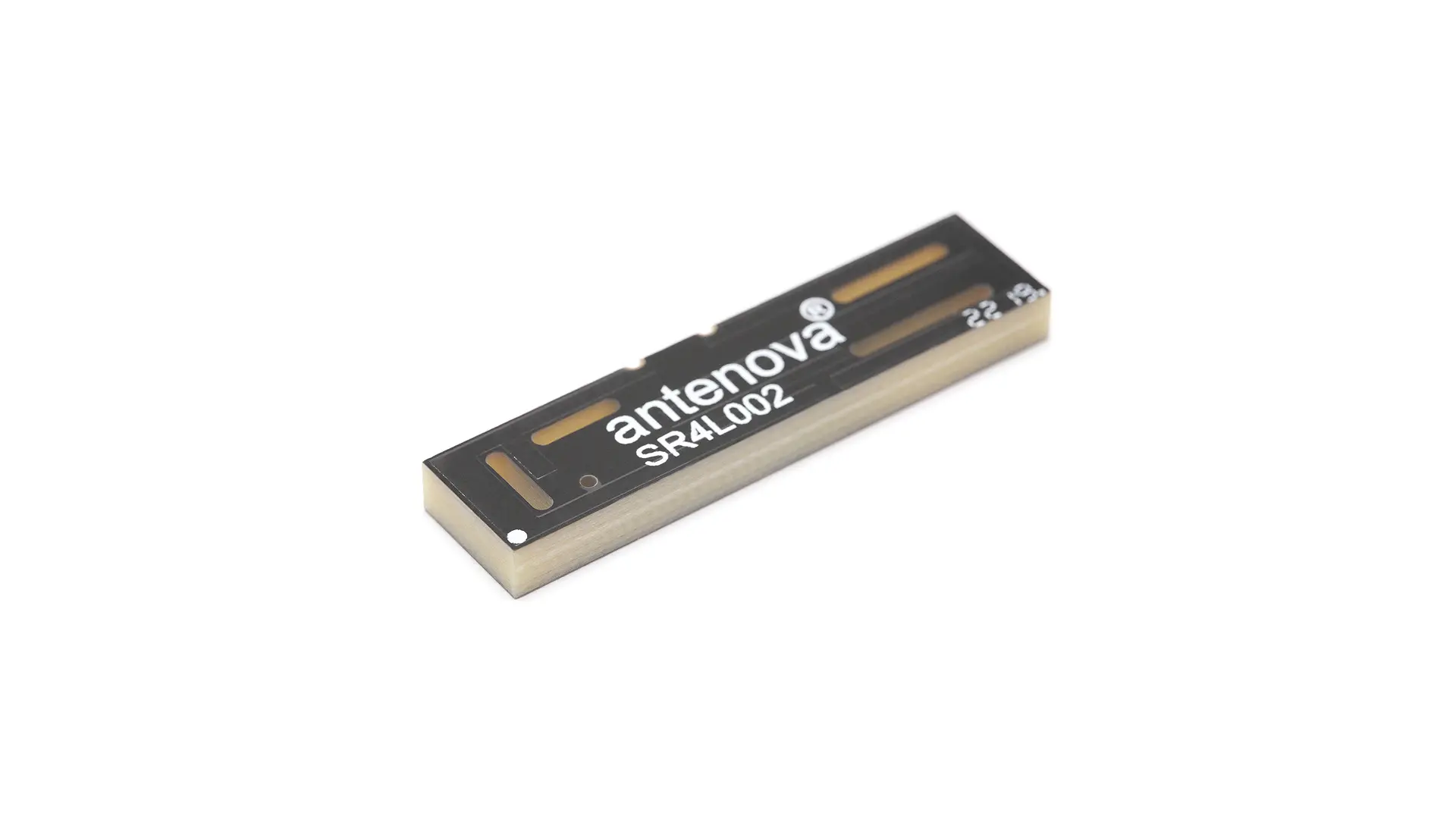

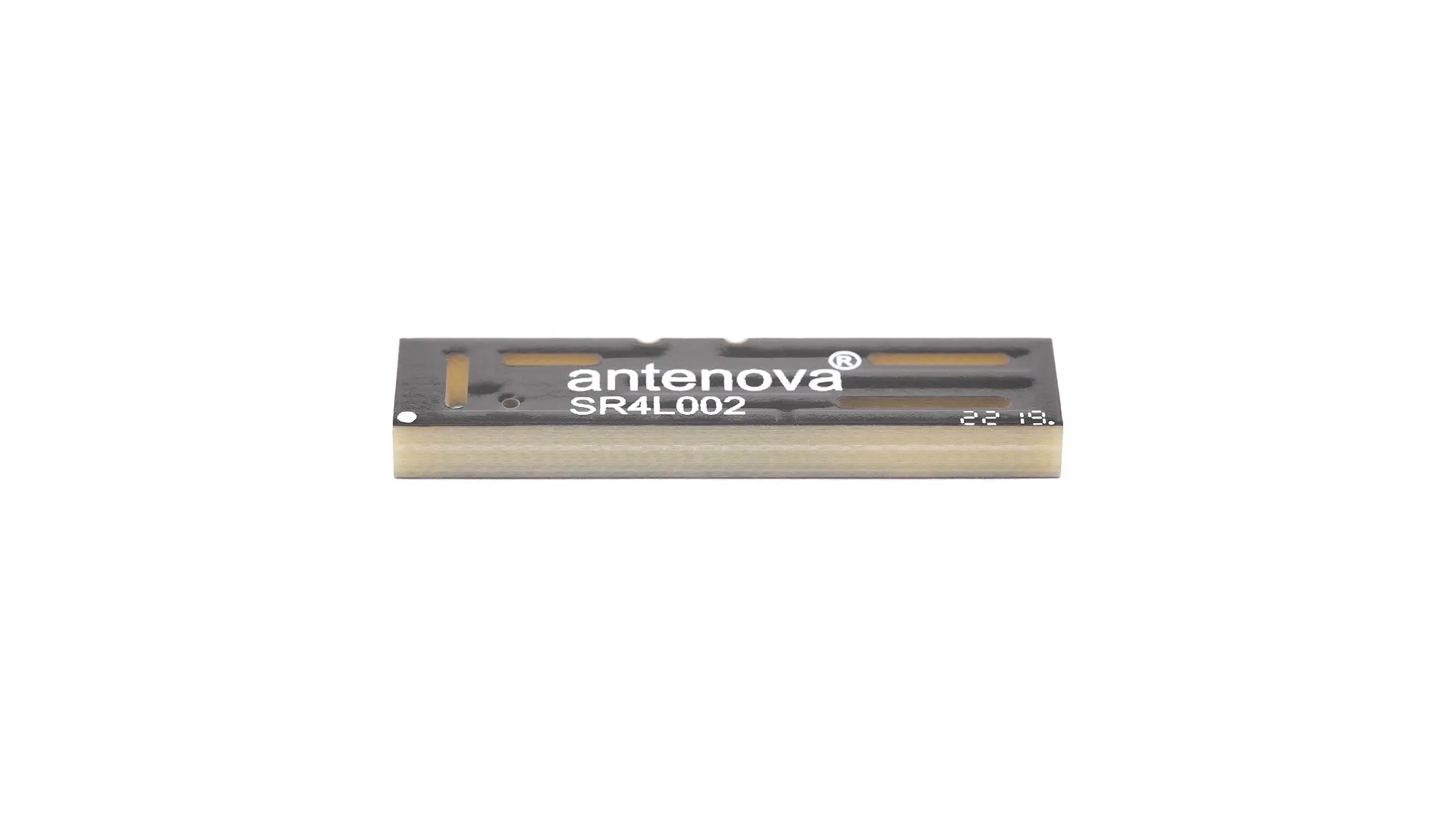

SR4L002 - Embedded 5G NR / Cellular / LPWA Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L002 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 35.0 × 8.5 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-798, 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-6.0, ~-6.0, ~-10.0, ~-5.0 |
| VSWR | ~3.2:1, ~2.8:1, ~3.1:1, ~1.7:1, ~3.4:1 |
| Efficiency (%) | ~45,~60,~65,~50,~50 |
| Average Gain (dB) | ~-1.5,~-1.5,~-1.5,~-2.0,~-2.0 |
| Peak Gain (dBi) | ~0.5,~1.0,~2.5,~1.6,~2.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low profile antenna for 4G/LTE applications including MIMO, and covers LTE bands in the USA and other world regions. Novel design that is less susceptible to detune.
Key Features
Ground Plane Dependent
Wide band 5G Antenna
Full 4G LTE backward compatibility
617-2690 MHz Frequency Range
Passive FR4 Chip Antenna
2.5 dBi 5G Peak Gain
up to 65% 5G Efficiency
