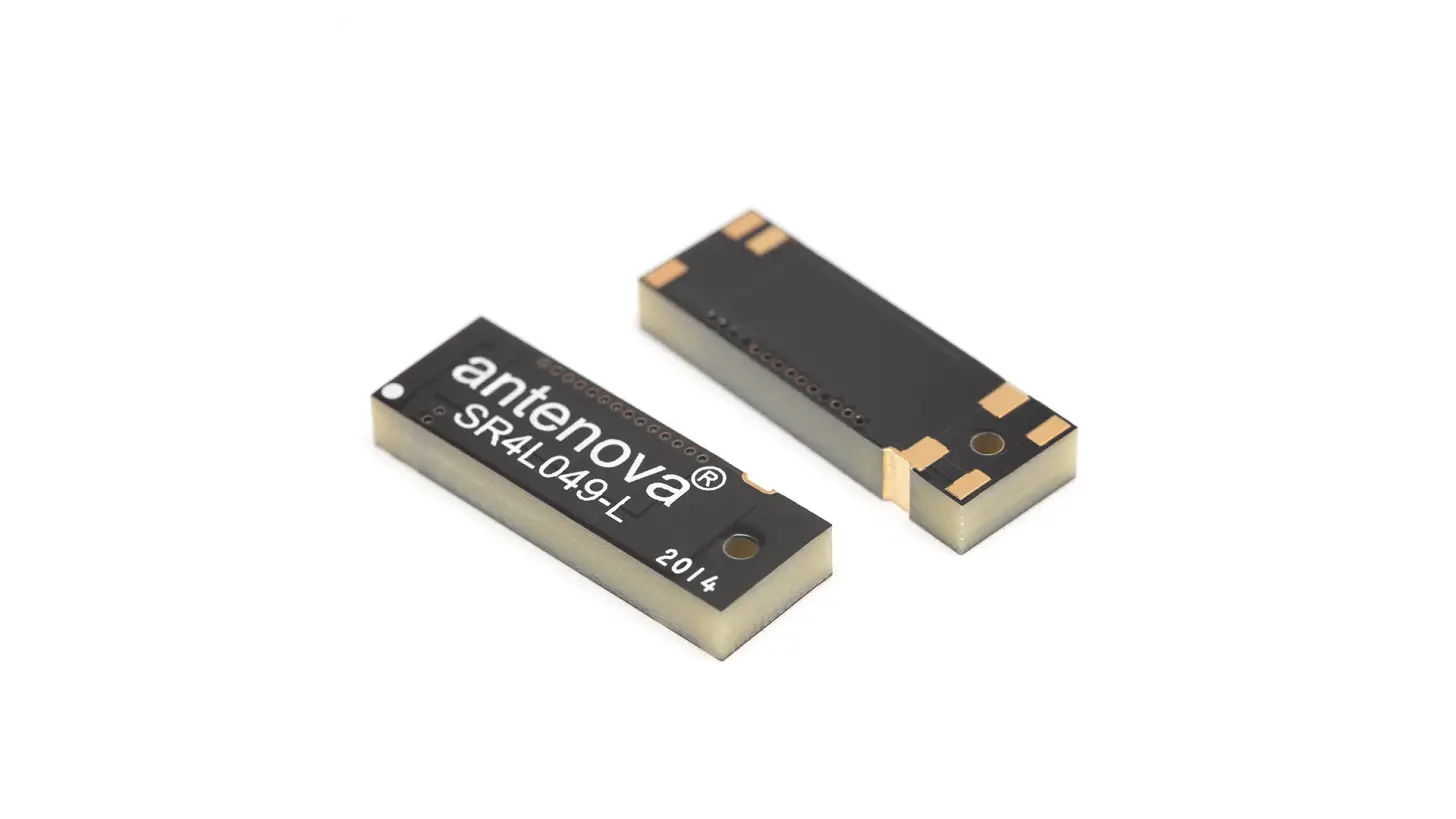

SR4L049-L - Embedded 4G LTE / Cellular / LPWA / NB-IoT Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L049-L |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 23.0 × 8.0 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 791-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-7.8, ~-5.0, ~-9.7, ~-4.5 |
| VSWR | ~2.3:1, ~3.6:1, ~1.9:1, ~4.1:1 |
| Efficiency (%) | ~60,~70,~70,~55 |
| Average Gain (dB) | ~-1.5,~-2.0,~-2.0,~-2.6 |
| Peak Gain (dBi) | ~1.9,~3.0,~3.3,~3.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Integra is a diversity antenna for 4G/ LTE, and its small size makes it suitable for PCBs as small as 75mm. This antenna comes in left and right versions and can be used singly or in pairs for MIMO. It is suitable for small tracking devices and devices where space is limited.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
Wide band 4G LTE Antenna
3.5 dBi 4G LTE Peak Gain
up to 70% 4G LTE Efficiency
791-2690 MHz Frequency Range
