CAS2M246-100 RF Cable Assembly

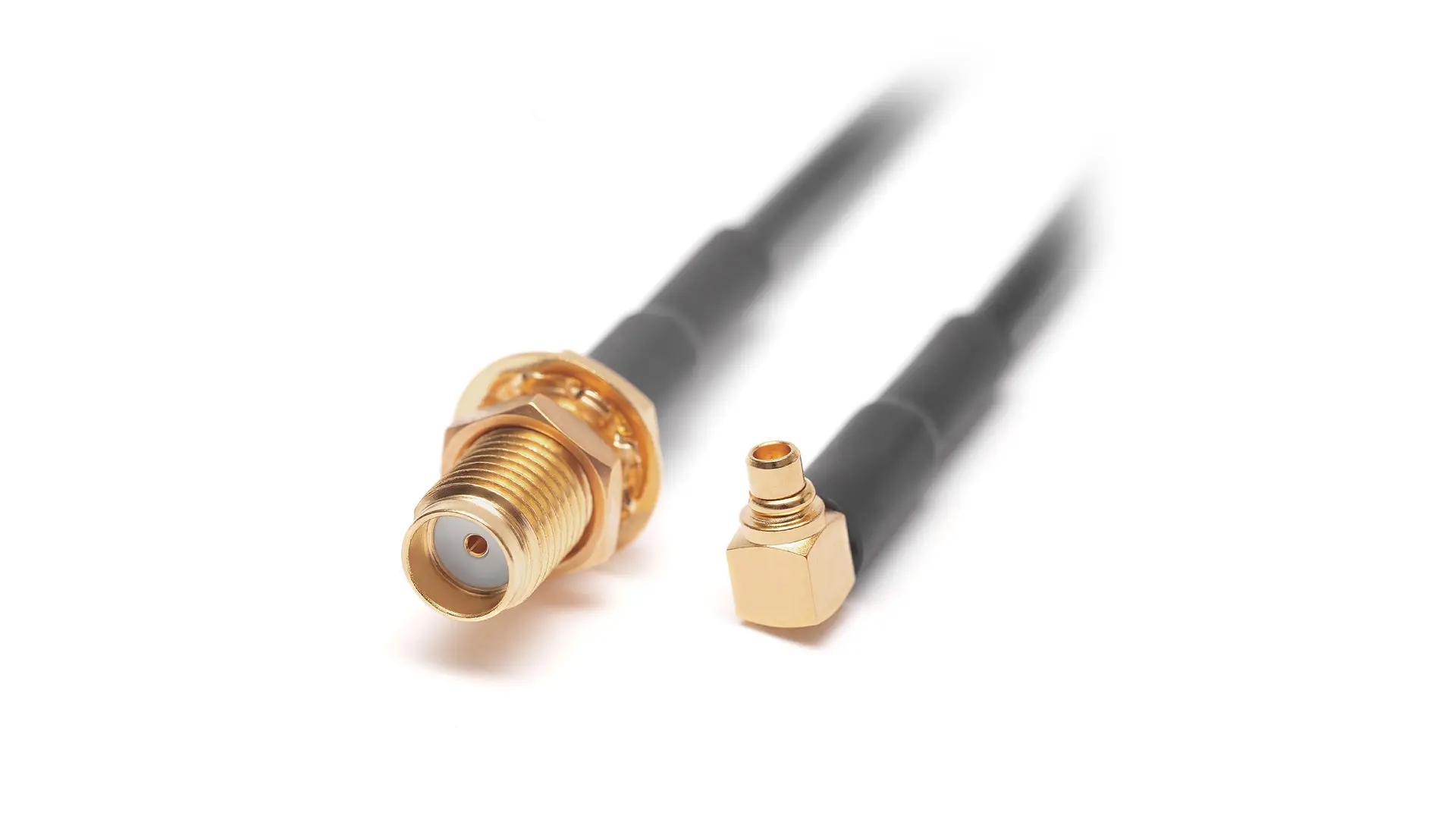

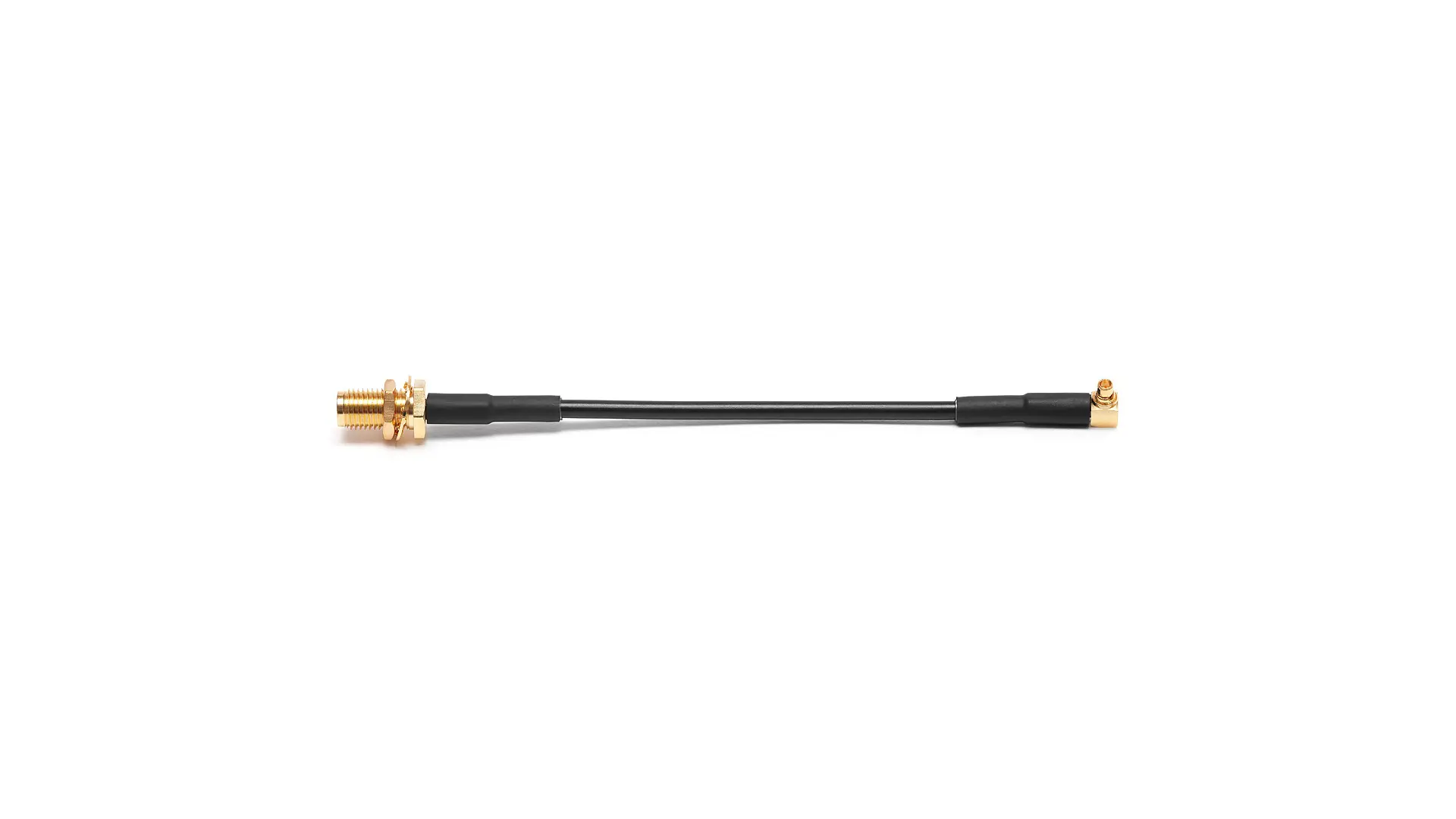

SMA Female (Jack) - Bulkhead to MMCX Male (Plug) - Right Angle with 100mm RG174 cable
| Product P/N | CAS2M246-100 |
|---|---|
| Dimensions (mm) | 100mm Length |
| Connectors Plating | Gold |
| Operating temperature | -20 °C to +80 °C |
| Storage Temperature | -20 °C to +80 °C |
| Substance Compliance | RoHS |
Product Description
The CAS2M246-100 is an RF cable assembly connecting an SMA (Female) bulkhead connector to an MMCX (Male) right-angle plug via a 100mm length of RG174 coaxial cable. Designed for connecting an external antenna to a PCB, the SMA jack mounts through a panel or enclosure wall, while the compact right-angle MMCX plug minimizes vertical clearance requirements on the board — a practical choice for space-constrained enclosures.
With a nominal impedance of 50Ω, capacitance of 101.05 pF/m, and a velocity of propagation of 66%, the cable delivers consistent signal integrity across the assembly's rated frequency range. A minimum bend radius of 10mm allows routing within tight enclosures without compromising cable performance. Gold-plated connectors ensure low contact resistance and long-term corrosion resistance, supporting reliable performance across an operating and storage temperature range of -20°C to +80°C. The assembly is fully RoHS compliant.
