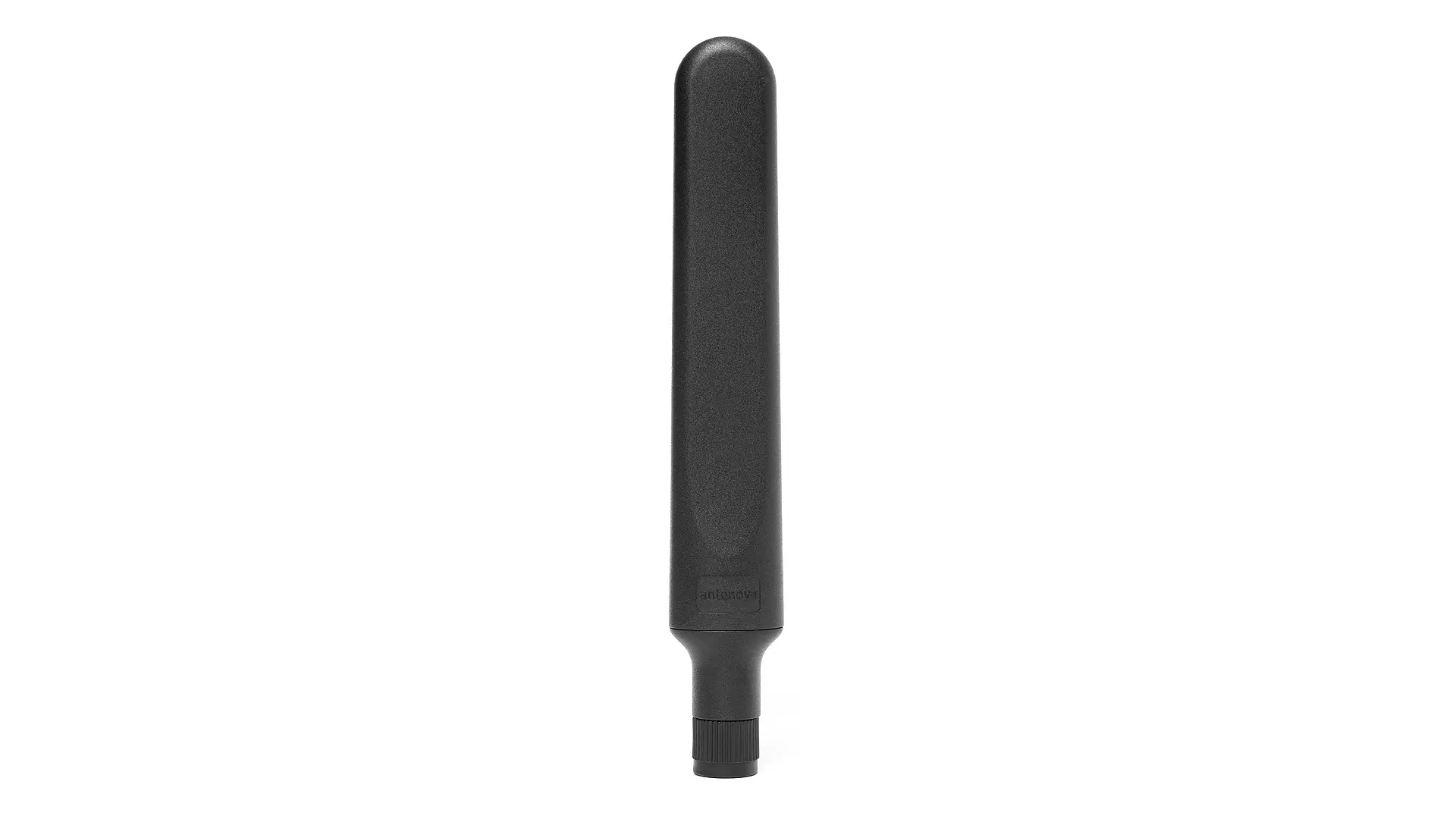

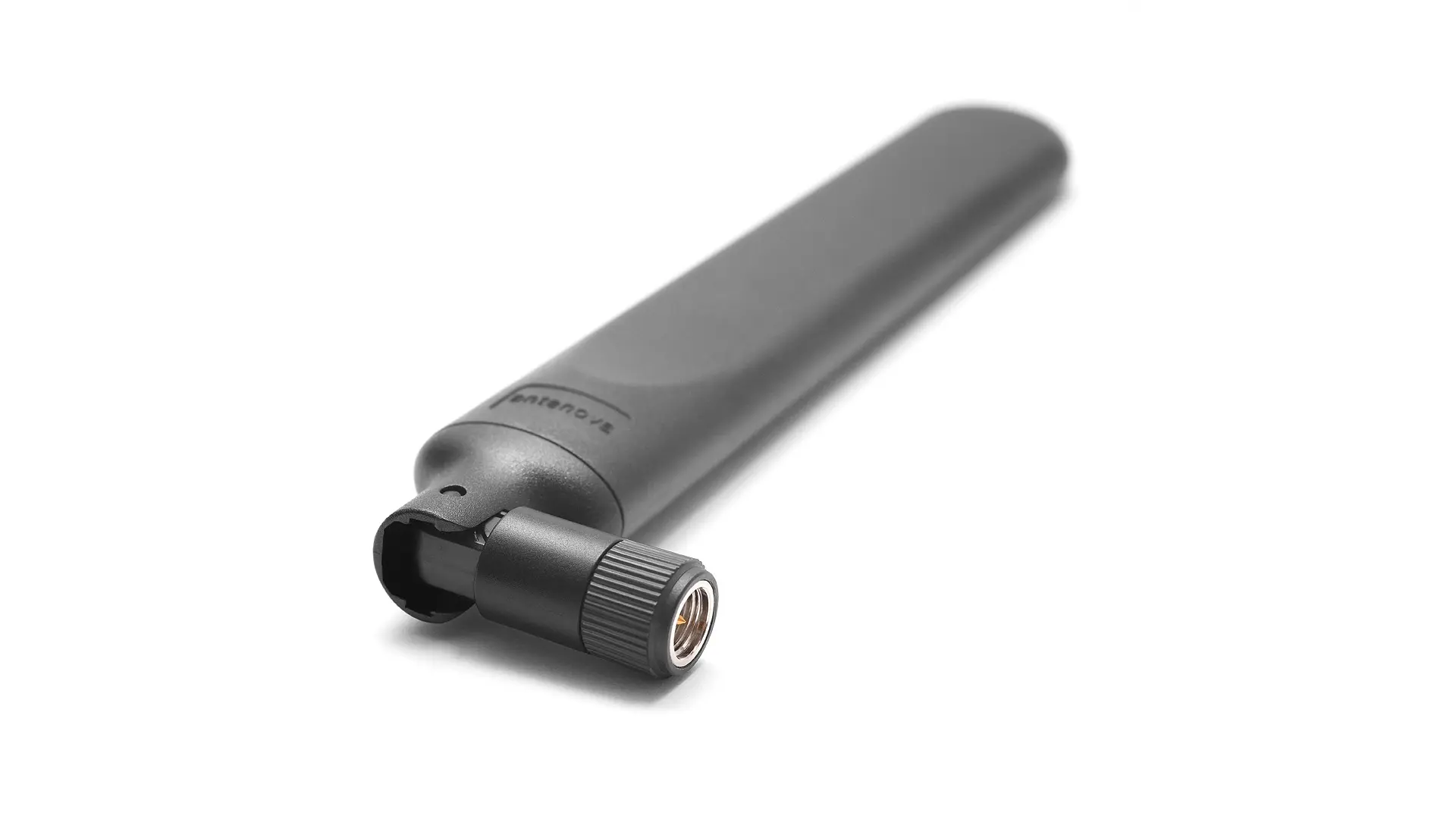

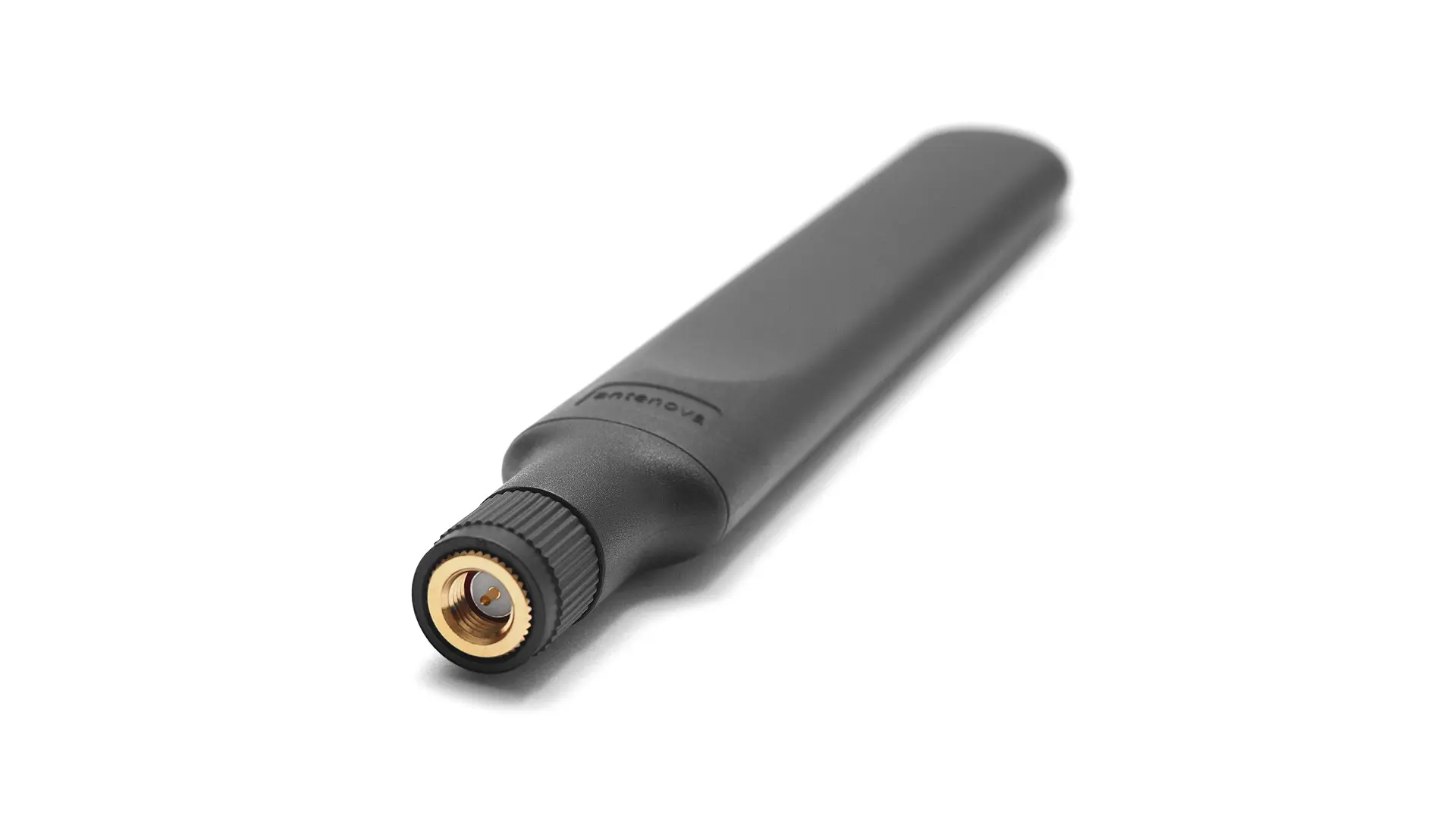

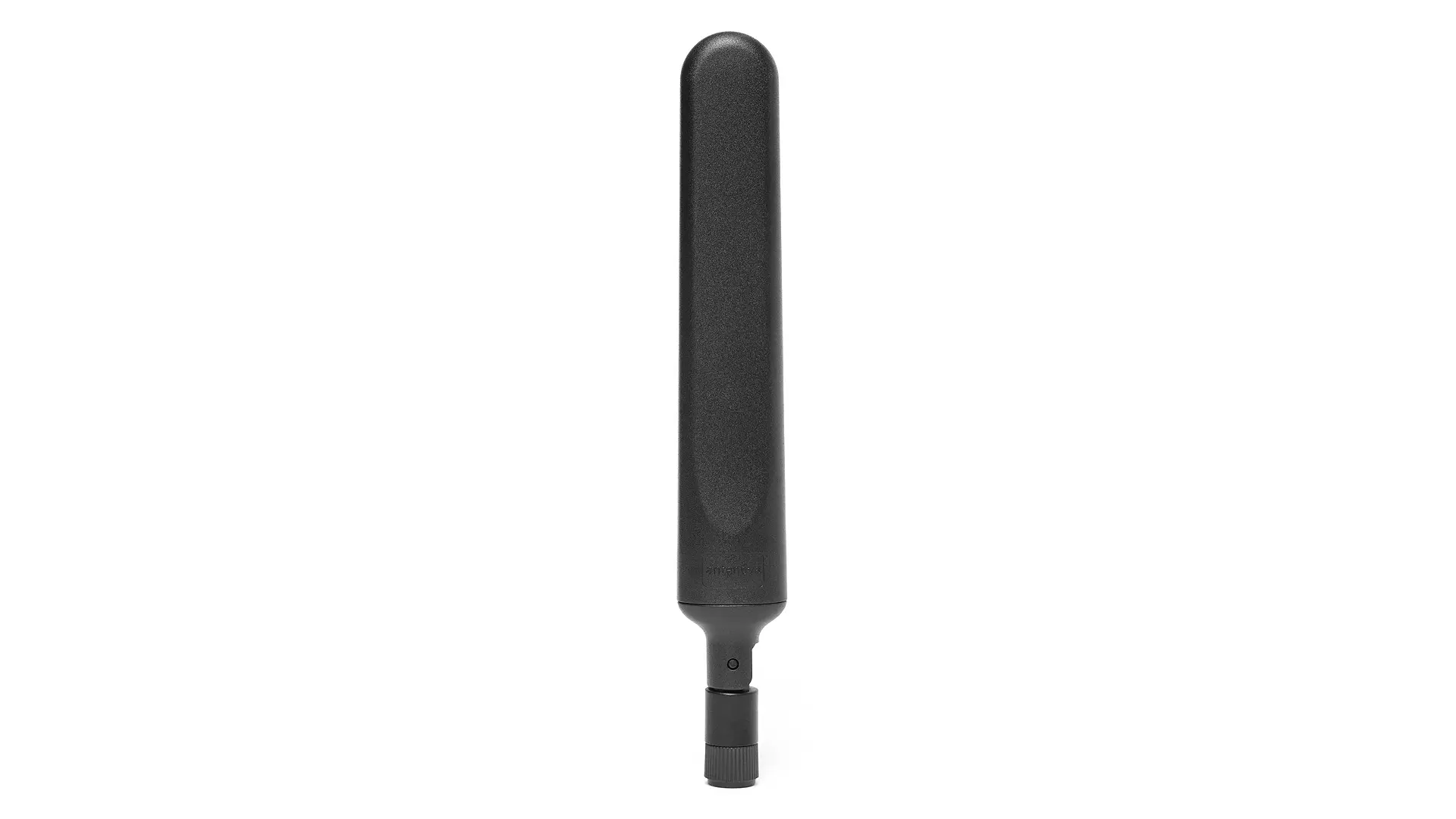

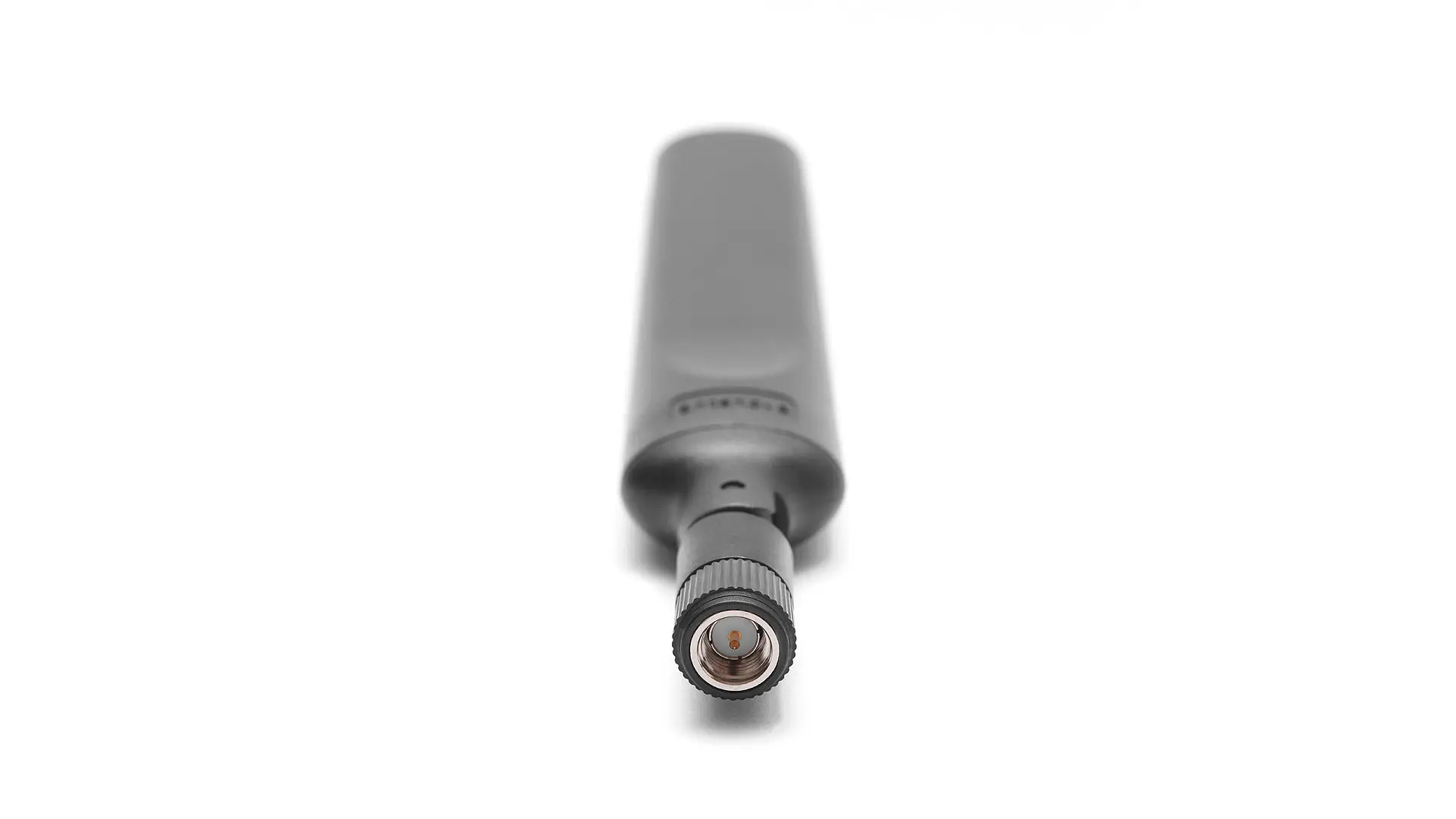

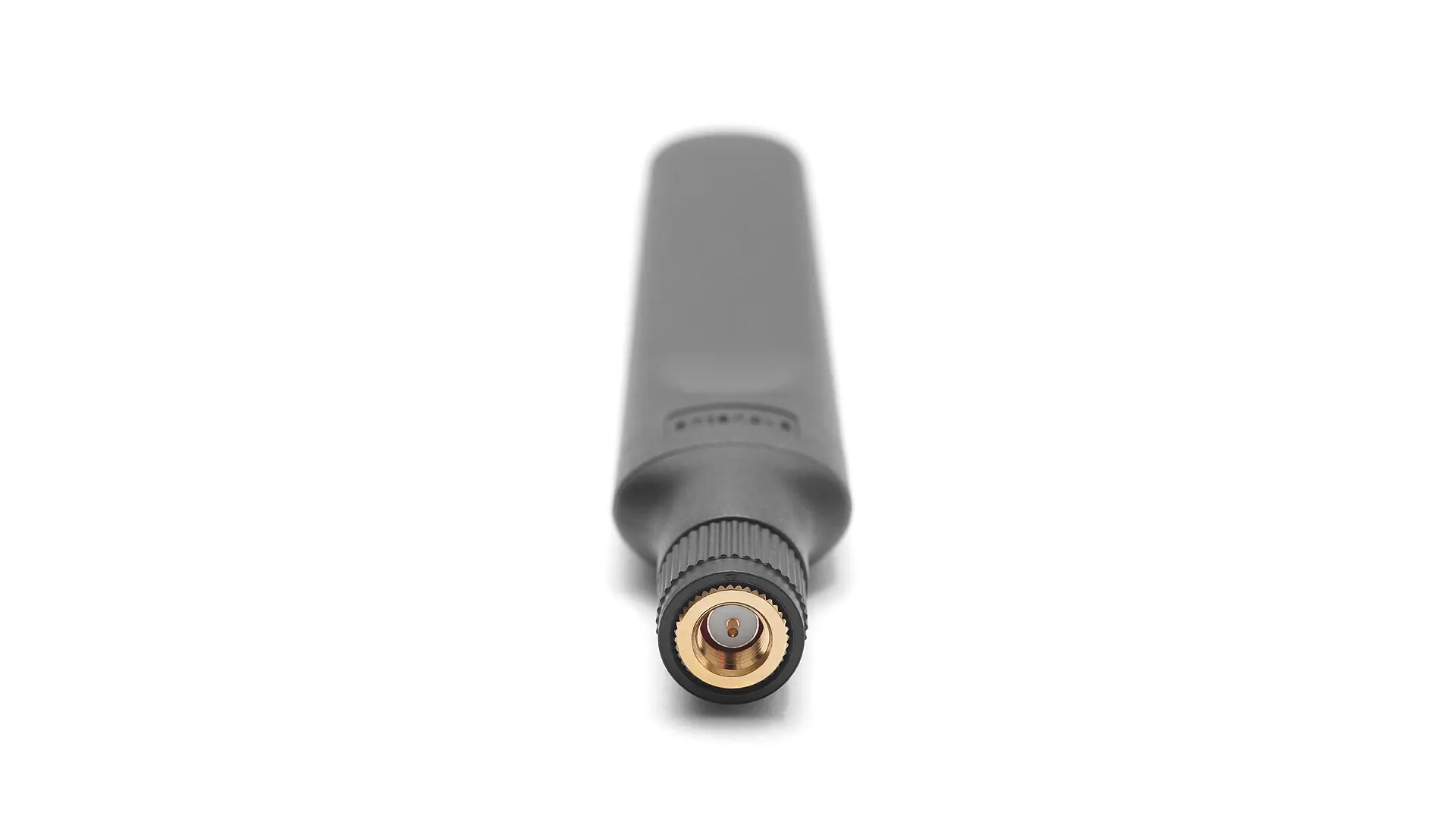

SREL036 - External 4G LTE / Cellular / LPWA / NB-IoT Passive Connector Mount Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Connector Mount |
|---|---|
| Product P/N | SREL036 |
| Antenna type | Passive |
| Dimensions (mm) | 138.5 × 13.5 × 22.5 |
| Operating temperature | -20 °C to +70 °C |
| Standard colors | Black |
| Certificates | IP67 (Fixed version) |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-960, 1420-1660, 1720-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.3, ~-7.5, ~-7.8, ~-8.9, ~-7.4 (Fixed - IP67) |
| VSWR | ~3.3:1, ~2.4:1, ~2.3:1, ~2.1:1, ~2.5:1 (Fixed - IP67) |
| Efficiency (%) | ~55,~53,~57,~65,~65 (Fixed - IP67) |
| Average Gain (dB) | ~-2.26,~-2.63,~-2.33,~-1.81,~-1.84 (Fixed - IP67) |
| Peak Gain (dBi) | ~2.46,~2.07,~3.33,~3.29,~4.14 (Fixed - IP67) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A high performance dipole antenna in three terminal options: fixed (SREL036-IPP), 90 degrees swivel (SREL036-S9P)and fly lead (SREL036-xxP). Ergonomic styling blends well with the exterior of a device. Draco works in various ground planes or in free space. Models SREL036-IPP and SREL036-xxP are weatherproof rated to IP67.
