GNSS Receiver Module M20071

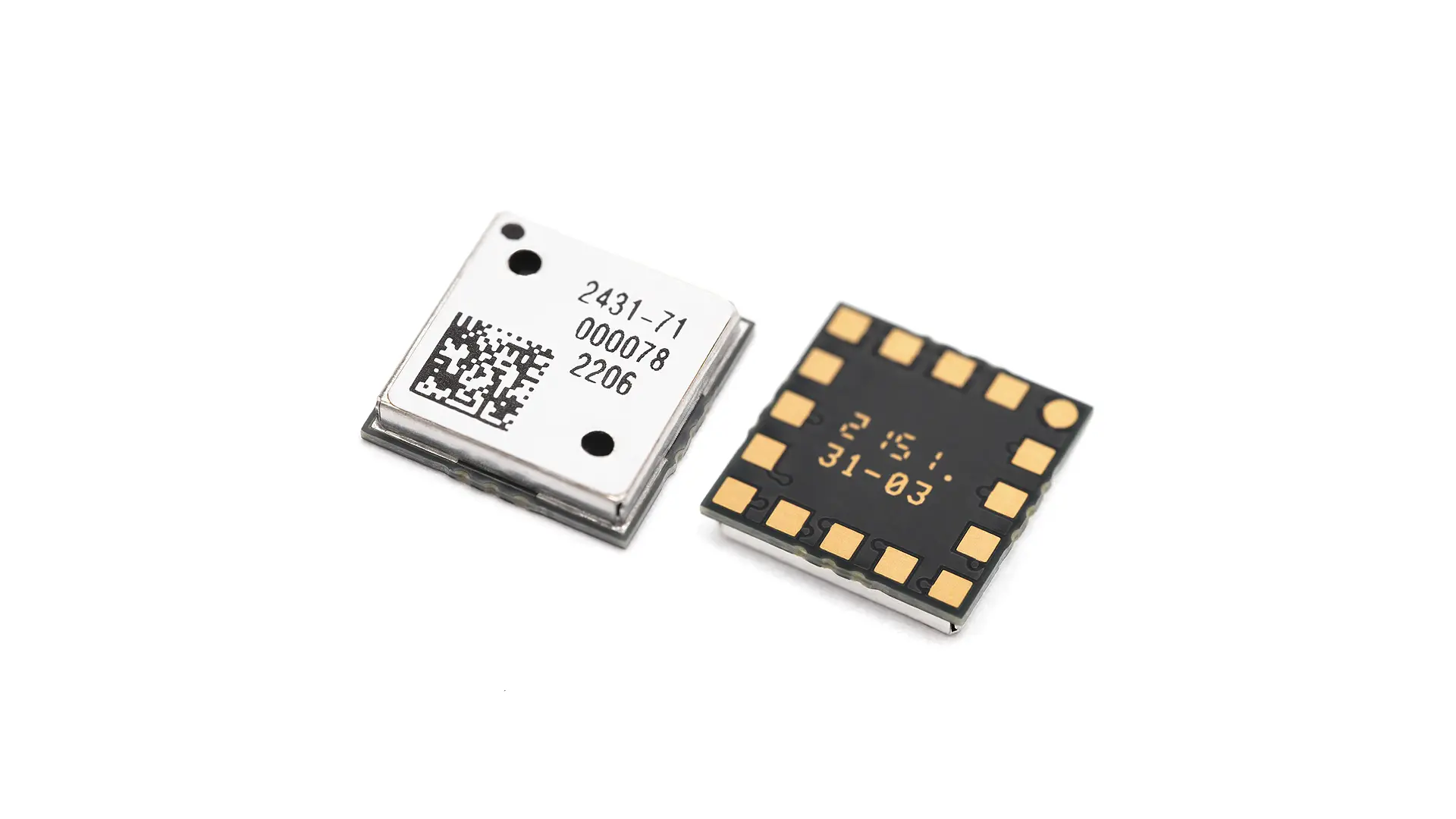

M20071 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Active Surface Mount SMD Receiver with built-in LNA
| Mounting | Surface Mount |
|---|---|
| Product P/N | M20071 |
| Antenna type | Active Receiver with built-in LNA |
| Dimensions (mm) | 9.0 × 9.0 × 1.8 |
| Operating temperature | -40 °C to +85 °C |
Antenna and electrical specifications
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Chip | MTK AG3335MN Flash Chip |
| Data Output Protocol | NMEA 0183 |
| Host Interface | UART |
| LNA | Built-in LNA |
| Saw Filter Type | Post-Filter |
| Efficiency (%) | Receiver only (No Antenna Built-in) |
| Voltage (V) | 1.8 typ |
| Default data rate on UART | 115200 bps default rate, modify by input command |
| Horizontal position accuracy | <2.5m CEP |
| Maximum position update rate | 10 Hz (Default 1Hz) |
| Acquisition (Cold) | -148dBm |
| Tracking | -165dBm |
| Hot start | <1s |
| Warm start | <25s (typical) |
| Cold start | <35s (typical) |
Antenna Description
M20071 sets the standard for GNSS modules. It maximises performance using a next-generation chip and filtering components, resulting in best-in-class power consumption and precision.
It features:
• Built-in LNA and SAW filter.
• Next-generation MediaTek flash chip (AG3335MN), bringing unmatched power efficiency and GNSS performance.
• Multi-constellation receiver for GPS, GLONASS, Galileo, BeiDou and QZSS.
• AIC (Active interference cancellation) for effective narrow-band interference cancellation.
• EASY (Embedded Assisted System) orbit prediction system.
• EPO (Extended Prediction Orbit) service, featuring 30-day orbit predictions.
M20071 part of GNSSNOVA, Antenova’s new family of low power, high precision GNSS modules. Looking for an antenna to go with M20071? Try Sinica for high precision applications, or Agosti, best for devices with small PCBs.
