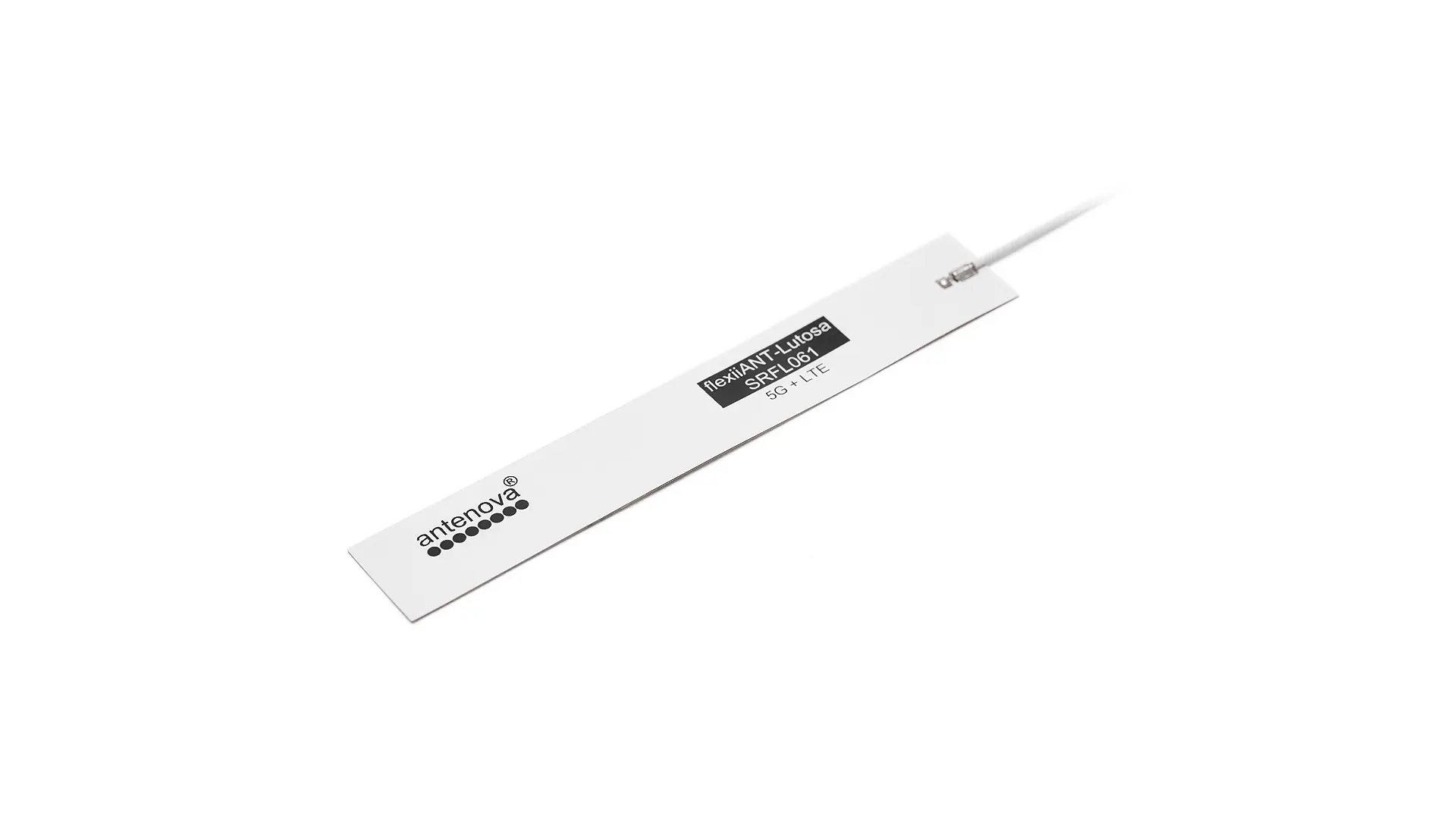

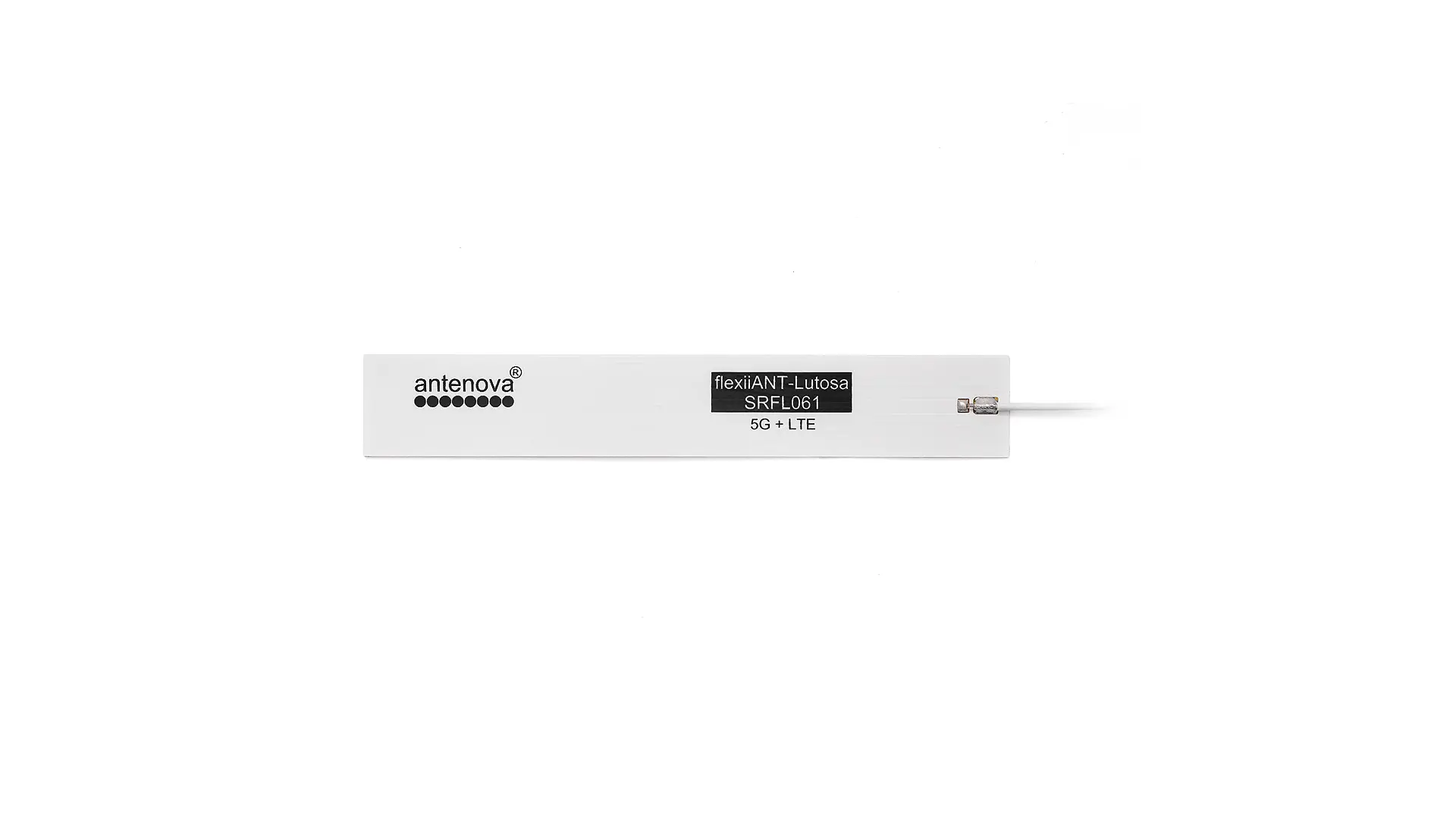

SRFL061 - Internal 5G NR / Cellular / LPWA Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFL061 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 95.0 × 15.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-698, 698-824, 824-960, 1420-1520, 1710-2200, 2300-2400, 2500-2690, 3300-3800 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-5.0, ~-11.0, ~-11.0, ~-8.0, ~-13.0, ~-9.0, ~-7.0 |
| VSWR | ~2.9:1, ~3.1:1, ~1.6:1, ~1.7:1, ~2.1:1, ~1.5:1, ~2.0:1, ~2.4:1 |
| Efficiency (%) | ~40,~45,~55,~60,~60,~65,~65,~60 |
| Average Gain (dB) | ~-4.2,~-3.2,~-2.3,~-2.2,~-2.1,~-1.8,~-1.9,~-2.2 |
| Peak Gain (dBi) | ~-1.7,~1.7,~1.7,~1.9,~2.7,~3.6,~3.7,~3.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A flexible antenna with a cable that is easily integrated onto the main PCB. The antenna covers the most common 5G bands: B71 (617-698MHz), LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz), B74 (1420-1520MHz), LTE B40 (2300 – 2400MHz) and 5G B78 (3300-3800MHz).
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Wide band 5G Antenna
Full 4G LTE backward compatibility
Customizable Cable and Connector
617-3800 MHz Frequency Range
up to 65% 5G Efficiency
3.7 dBi 5G Peak Gain
