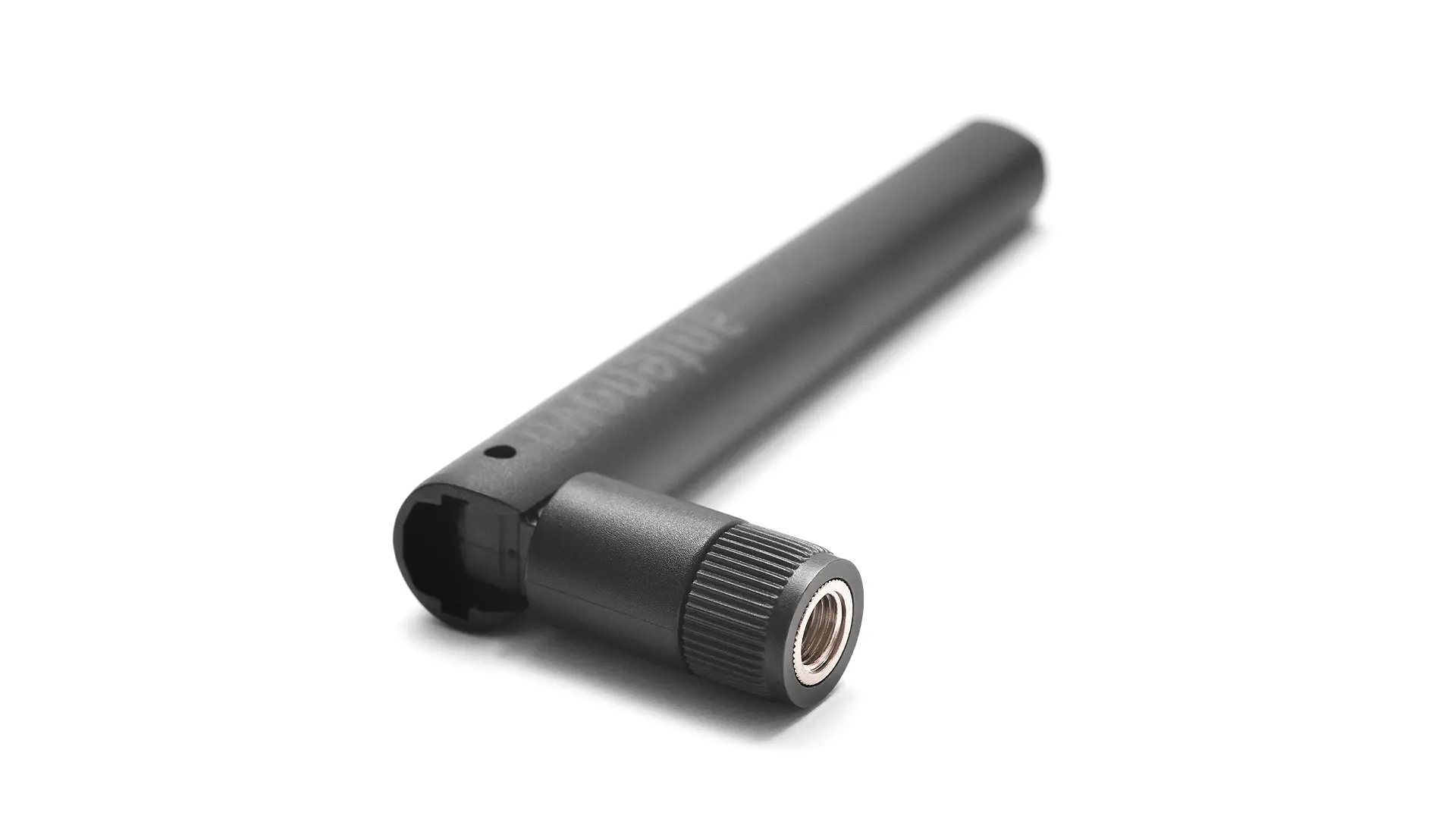

Nitida
SRE3W084 - External 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive Connector Mount Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Product P/N | SRE3W084 |
| Antenna type | Passive |
| Dimensions (mm) | 123.7 × 12.7 × 12.1 |
| Operating temperature | -20 °C to +65 °C |
| Standard colors | Black |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-13.0, ~-14.0, ~-8.0 |
| VSWR | ~1.6:1, ~1.8:1, ~2.3:1 |
| Efficiency (%) | ~70,~60,~55 |
| Average Gain (dB) | ~-1.5,~-1.9,~-1.7 |
| Peak Gain (dBi) | ~3.1,~5.2,~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description

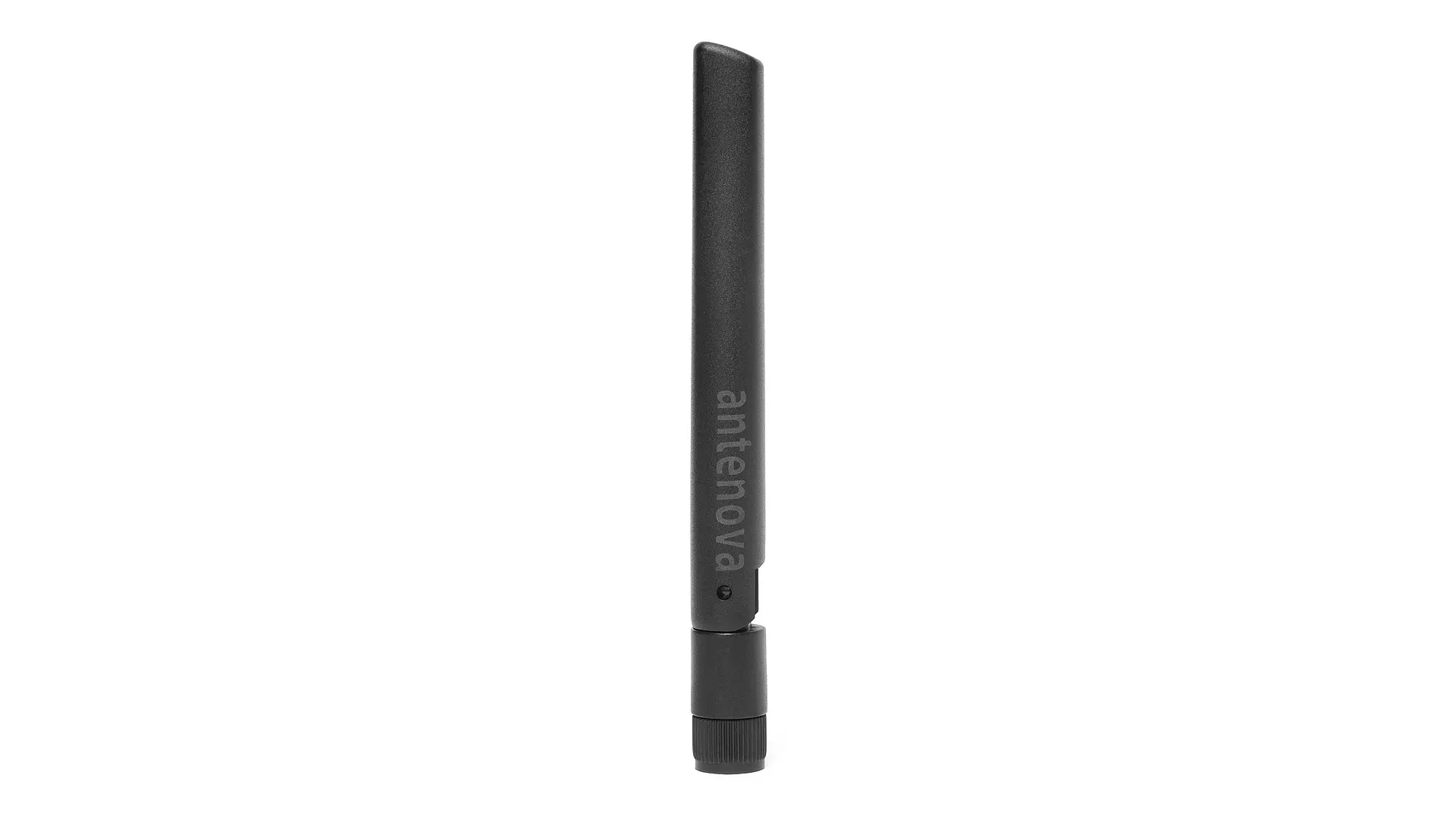

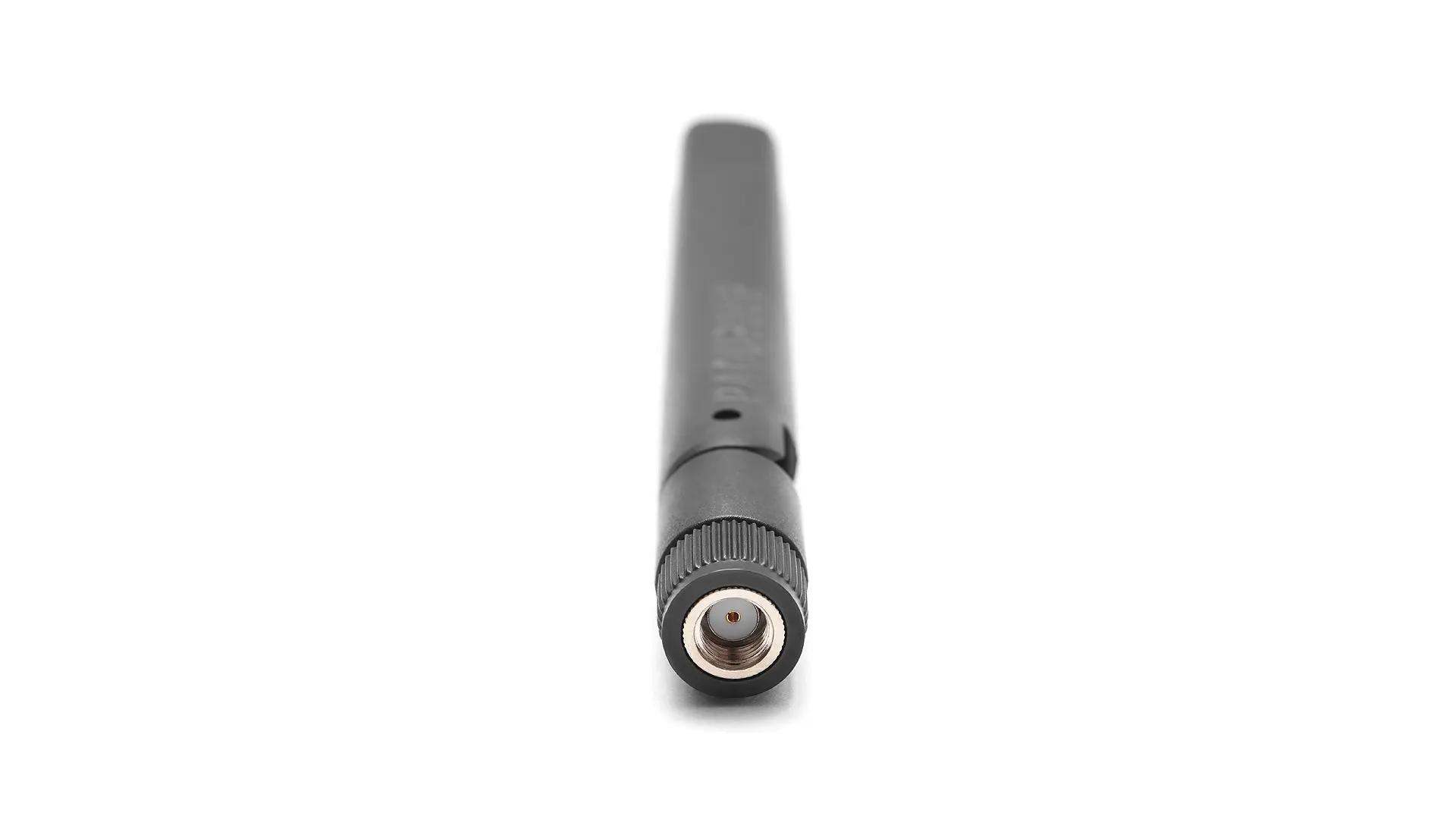

Nitida is a Terminal Mount antenna for the Wi-Fi6E/WiFi7 bands. The Nitida antenna is fitted on the outside of the product enclosure with a SMA connector. The antenna covers the Wi-Fi6E & WiFi7 bands: 2.4-2.5 GHz, 4.9-5.9GHz and 5.925-7.125GHz.
Key Features
Ground Plane Dependent
up to 70% WIFI Efficiency
WIFI 6E / WIFI 7 Antenna
Passive Antenna
Monopole Antenna
5.2 dBi WIFI Peak Gain
Applications
Smart Home
Wearables
Entertainment and Multimedia
Smart Cities
Medical and Healthcare
Drone Operation
Gaming and Virtual Reality
Retail Services
Transportation
GIS - Geographic Information System
Hazard Mitigation
Machine Control
Automation
Defense
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Autonomous Applications
Mobile Applications
Home Applications
Public Wi-Fi
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Manufacturing
Video Streaming
Short-Range Personal Area Networks
Digital Signage
Routers
Gateways & Data Terminals
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
IoT - Internet of Things
Telemetry / Telematics
High-Density Environments
