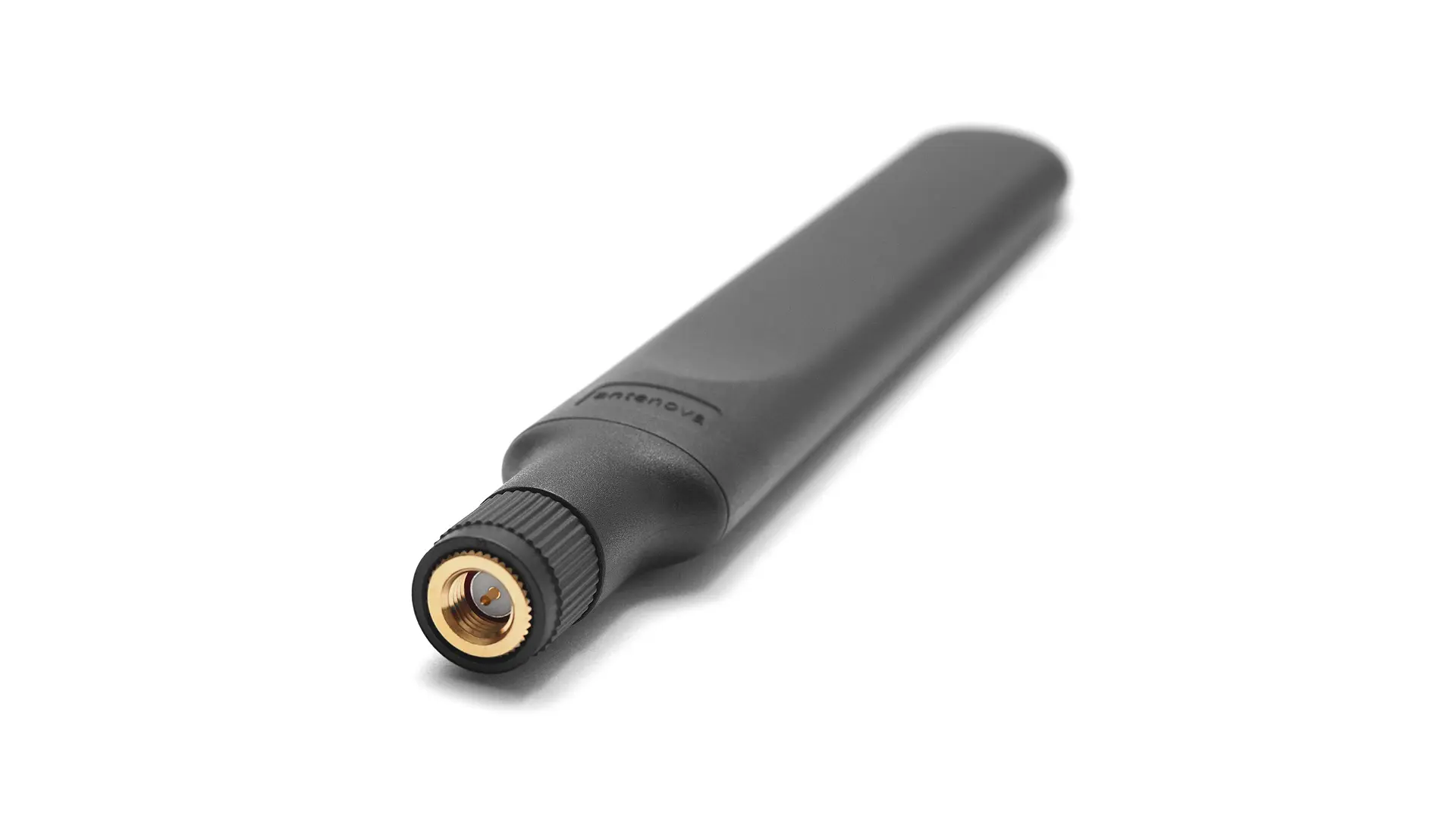

Pacifica
SREI038 - External 433 MHz ISM / Sigfox / LoRa / LPWA Passive Connector Mount Antenna
Connections (1)
1×
433 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Connector Mount |
|---|---|
| Product P/N | SREI038 |
| Antenna type | Passive |
| Dimensions (mm) | 138.5 × 13.5 × 22.5 |
| Operating temperature | -20 °C to +70 °C |
| Certificates | IP67 (Fixed version) |
| Standard colors | Black |
| Certificates | IP67 (Fixed version) |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
433 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 432-434 |
|---|---|
| Return Loss (dB) | ~-12.0 (Fixed - IP67) |
| VSWR | ~1.6:1 (Fixed - IP67) |
| Efficiency (%) | ~50 (Fixed - IP67) |
| Average Gain (dB) | ~-2.6 (Fixed - IP67) |
| Peak Gain (dBi) | ~-0.9 (Fixed - IP67) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description

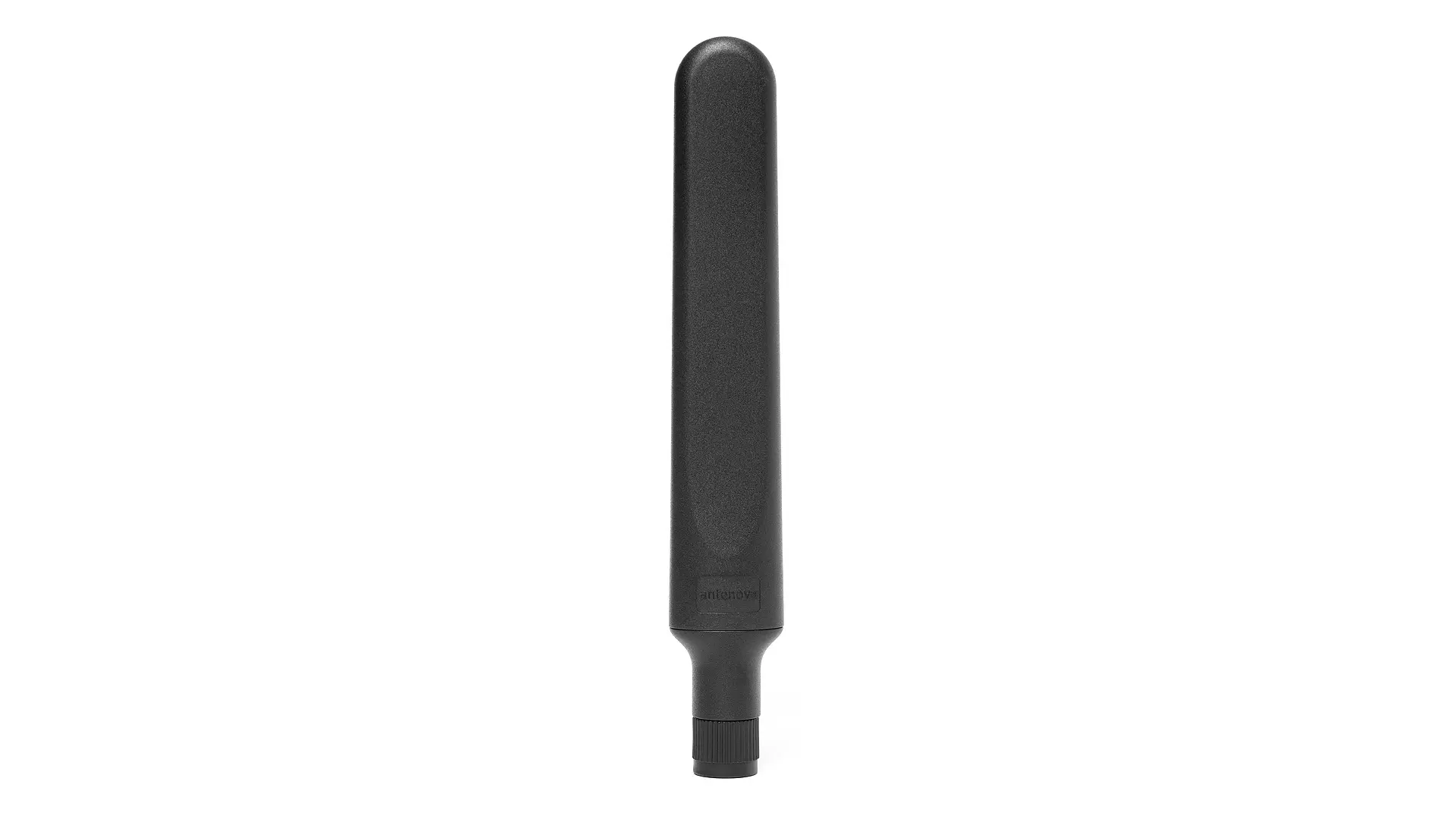

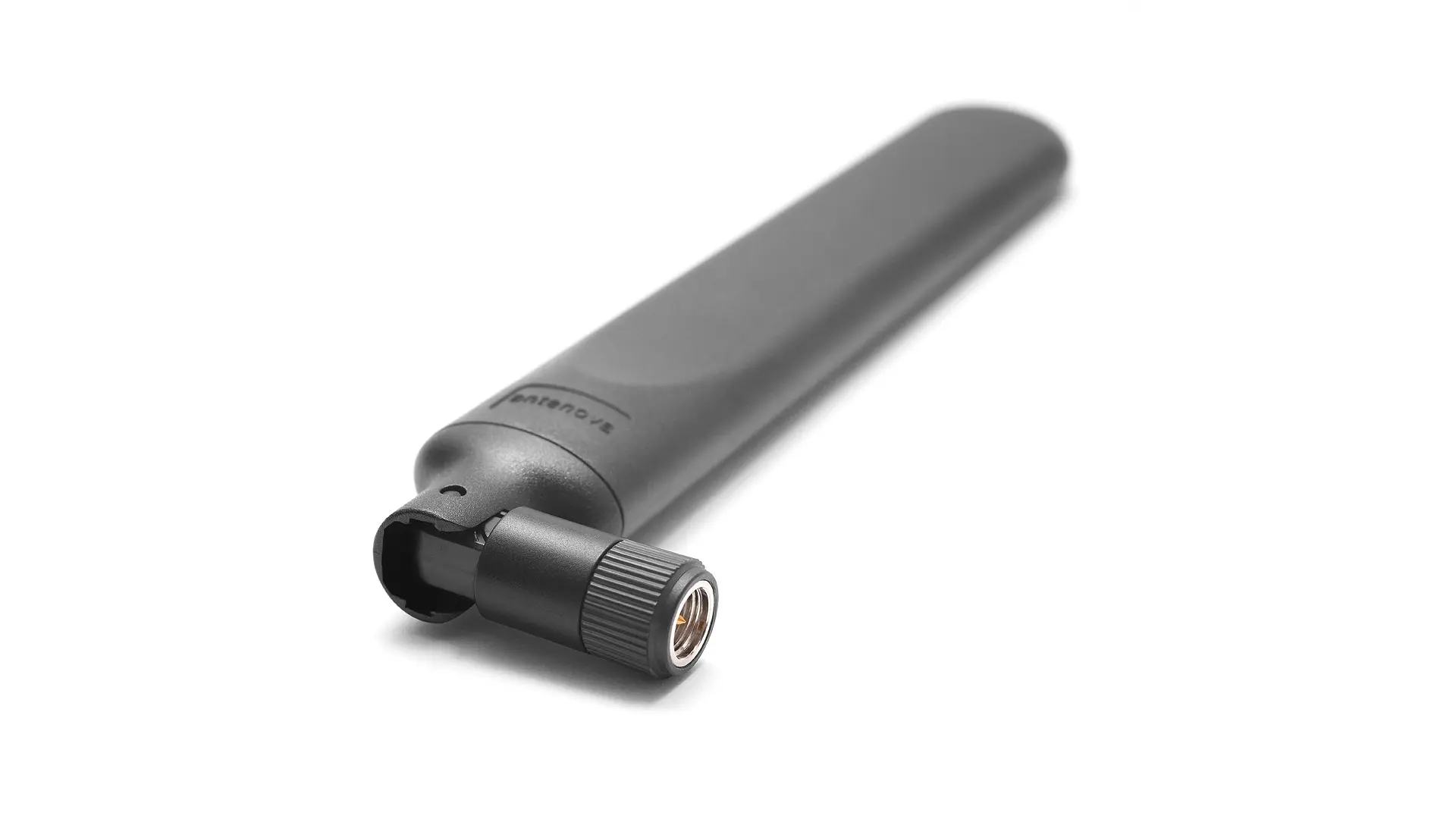

A high-performance dipole antenna in three-terminal options: fixed (SREI038-IPP), 90 degrees swivel (SREI038-S9P), and fly lead (SREI038-xxP). Ergonomic styling blends well with the exterior of a device. Pacifica works in various ground planes or in free space. Models SREI038-IPP and SREI038-xxP are weatherproof rated to IP67.
Key Features
Ground Plane Dependent
Passive Antenna
Monopole Antenna
-0.9 dBi 433 MHz ISM Peak Gain
up to 50% 433 MHz ISM Efficiency
Applications
Smart Home
IoT - Internet of Things
Smart Cities
Industrial IoT & Monitoring
Medical and Healthcare
Retail Services
Transportation
Hazard Mitigation
Machine Control
Automation
Mining Industry
Logistics
Asset Tracking and Security
Civil Applications
Road Applications
Autonomous Applications
Home Applications
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Sensor Reporting
Car Security System
Remote Keyless Entry
RFID devices
Energy Monitoring
Smart Metering
Smart Lighting
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Street Lighting
Product Tracking
Toll Road Payments
Telemetry / Telematics
Manufacturing
Smart Grid
Electricity Metering & Management
Resources Management
Low Power Wide-Range Networks
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
Wearables
