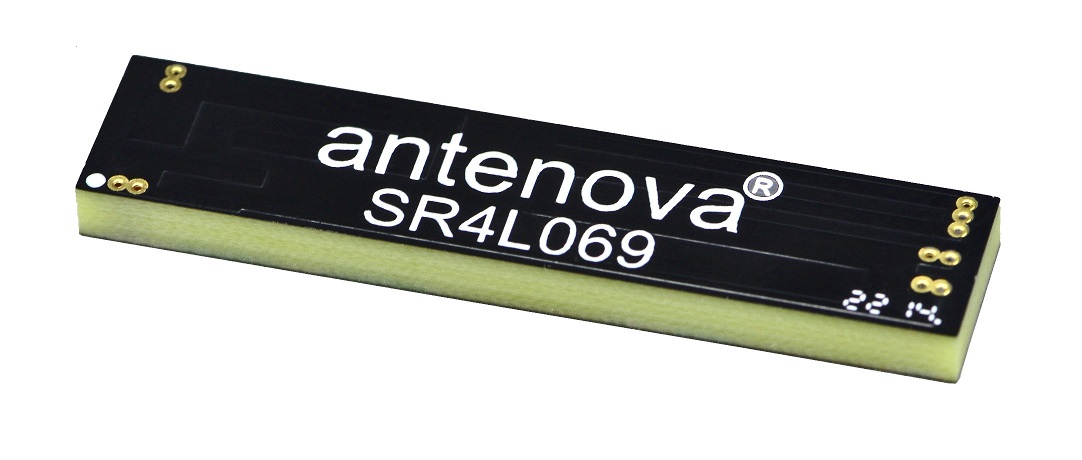

SR4L069 - Embedded 5G NR / Cellular / LPWA Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L069 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 45.0 × 10.0 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-824, 824-960, 1710-2200, 2300-2400, 2500-2690, 3300-3800 |
|---|---|
| Return Loss (dB) | ~-5.0, ~-5.5, ~-8.0, ~-8.5, ~-7.7, ~-8.0 |
| VSWR | ~3.6:1, ~3.3:1, ~2.3:1, ~2.2:1, ~2.4:1, ~2.3:1 |
| Efficiency (%) | ~45,~55,~66,~57,~63,~55 |
| Average Gain (dB) | ~-3.5,~-2.6,~-1.8,~-2.4,~-1.9,~-2.5 |
| Peak Gain (dBi) | ~-0.2,~1.6,~4.1,~3.4,~5.1,~5.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A multiband SMD antenna for 4G & 5G applications across the world. The antenna covers the most common 4G & 5G bands: B71 (617-698MHz), LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz), LTE B40 (2300 – 2400MHz) and 5G B78 (3300-3800MHz).
Key Features
Ground Plane Dependent
Wide band 5G Antenna
Full 4G LTE backward compatibility
Passive FR4 Chip Antenna
5.4 dBi 5G Peak Gain
up to 66% 5G Efficiency
617-3800 MHz Frequency Range
Applications
Embedded Antenna Solutions
Wearables
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Broadcasting & Media
Consumer & Entertainment
