Calvus

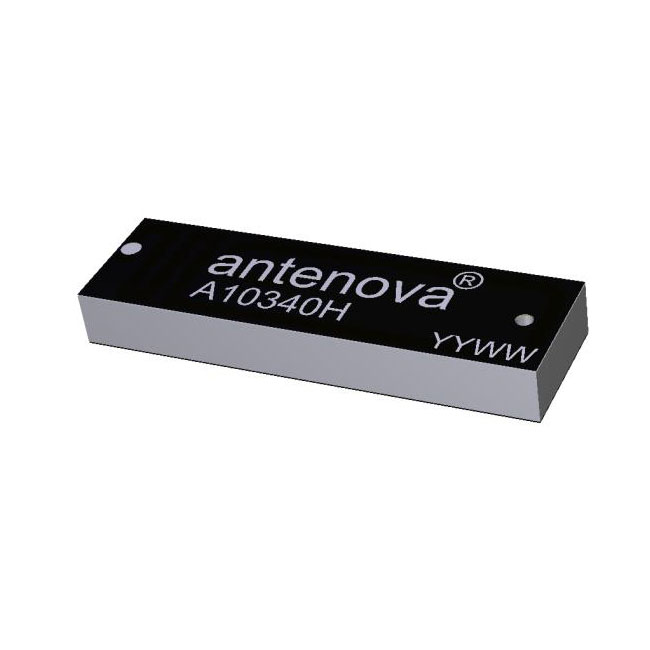

A10340H - Embedded 3G / 2G / Cellular Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Surface Mount |
|---|---|
| Product P/N | A10340H |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 27.0 × 8.0 × 3.2 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Frequency (MHz) | 824-960, 1710-2170 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-6.0 |
| VSWR | ~3.2:1, ~3.0:1 |
| Efficiency (%) | ~65,~65 |
| Average Gain (dB) | ~-1.8, ~-1.6 |
| Peak Gain (dBi) | ~1.7, ~3.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna supports the GSM/GPRS/EDGE, CDMA2000, UMTS bands. Suitable for Pico-basestations and remote monitoring applications. It uses a ground plane to radiate efficiently but requires clearance under the antenna.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
824-2170 MHz Frequency Range
3.0 dBi CELLULAR Peak Gain
up to 65% CELLULAR Efficiency
Applications
Embedded Antenna Solutions
Cellular & Wireless
Industrial & Automation
