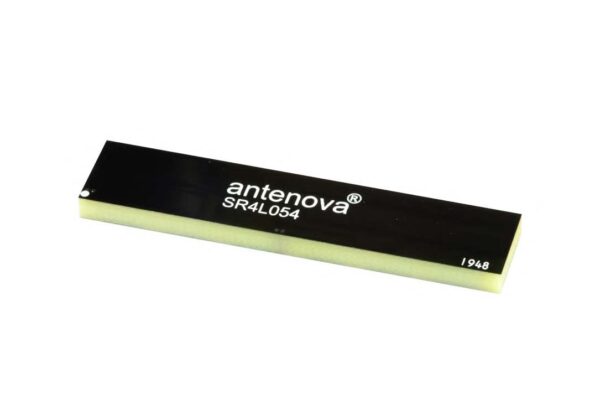

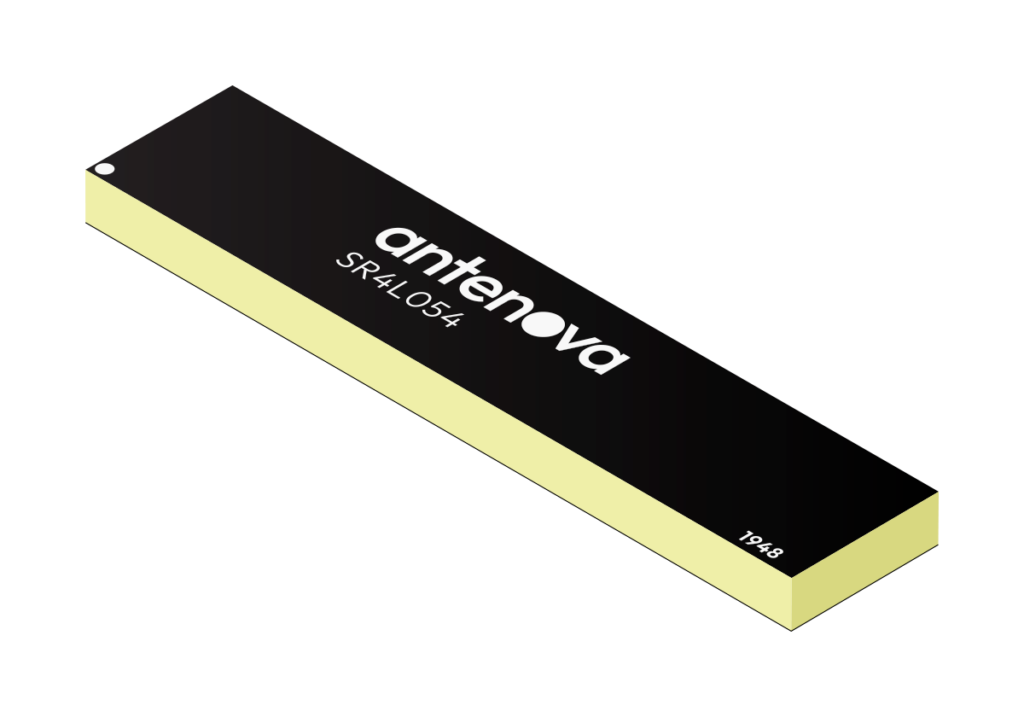

SR4L054 - Embedded 5G NR / Cellular / LPWA Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L054 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 50.6 × 10.6 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-798, 824-960, 1710-2170, 2300-2400, 2500-2690, 3300-3800 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-6.0, ~-6.0, ~-10.0, ~-10.0, ~-5.0 |
| VSWR | ~2.2:1, ~2.5:1, ~2.5:1, ~2.1:1, ~1.8:1, ~3.8:1 |
| Efficiency (%) | ~55,~65,~65,~65,~65,~65 |
| Average Gain (dB) | ~-1.5,~-1.5,~-1.5,~-2.0,~-1.5,~-1.5 |
| Peak Gain (dBi) | ~0.5,~1.0,~2.5,~1.6,~0.5,~1.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Lepida is a high-performance antenna for 4G/LTE & 5G. Lepida was created with a brand new design that delivers high efficiency across all bands, as per our Design for Integration design ethos.
B71 (617-698 MHz), LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, B7 (2500-2690 MHz), B40 (2300 – 2400 MHz), B78 (3300-3800MHz).
Key Features
Ground Plane Dependent
Wide band 5G Antenna
Full 4G LTE backward compatibility
Passive FR4 Chip Antenna
617-3800 MHz Frequency Range
2.5 dBi 5G Peak Gain
up to 65% 5G Efficiency
