Home > Antenova Products > GNSSNOVA M20071

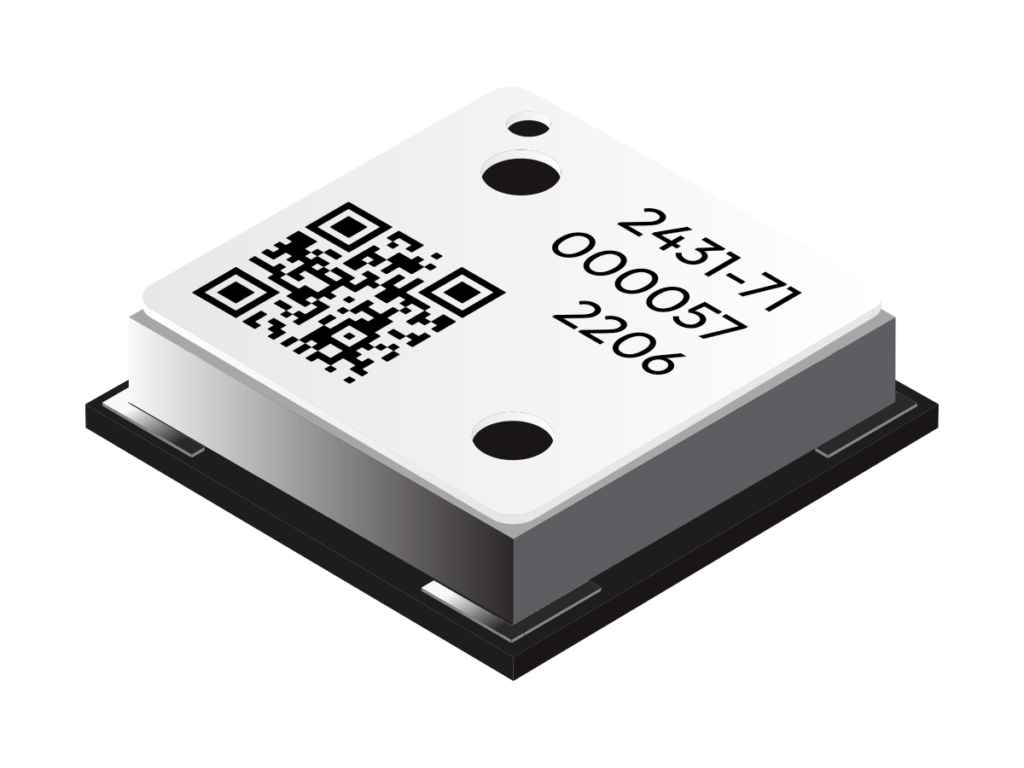

GNSSNOVA M20071

Part numberM20071

9.0 x 9.0 x 1.8 mmRequest a quote

The all-new GNSS module that raises the bar for performance and power consumption.

  • Type: GNSS/GPS
  • Frequency: 1559 – 1609 MHz
  • Dimension: 9.0 x 9.0 x 1.8 mm
Order samples

M20071 sets the standard for GNSS modules. It maximises performance using a next-generation chip and filtering components, resulting in best-in-class power consumption and precision. It features:



• Built-in LNA and SAW filter.

• Next-generation MediaTek flash chip (AG3335MN), bringing unmatched power efficiency and GNSS performance.

• Multi-constellation receiver for GPS, GLONASS, Galileo, BeiDou and QZSS.

• AIC (Active interference cancellation) for effective narrow-band interference cancellation.

• EASY (Embedded Assisted System) orbit prediction system.

• EPO (Extended Prediction Orbit) service, featuring 30-day orbit predictions.

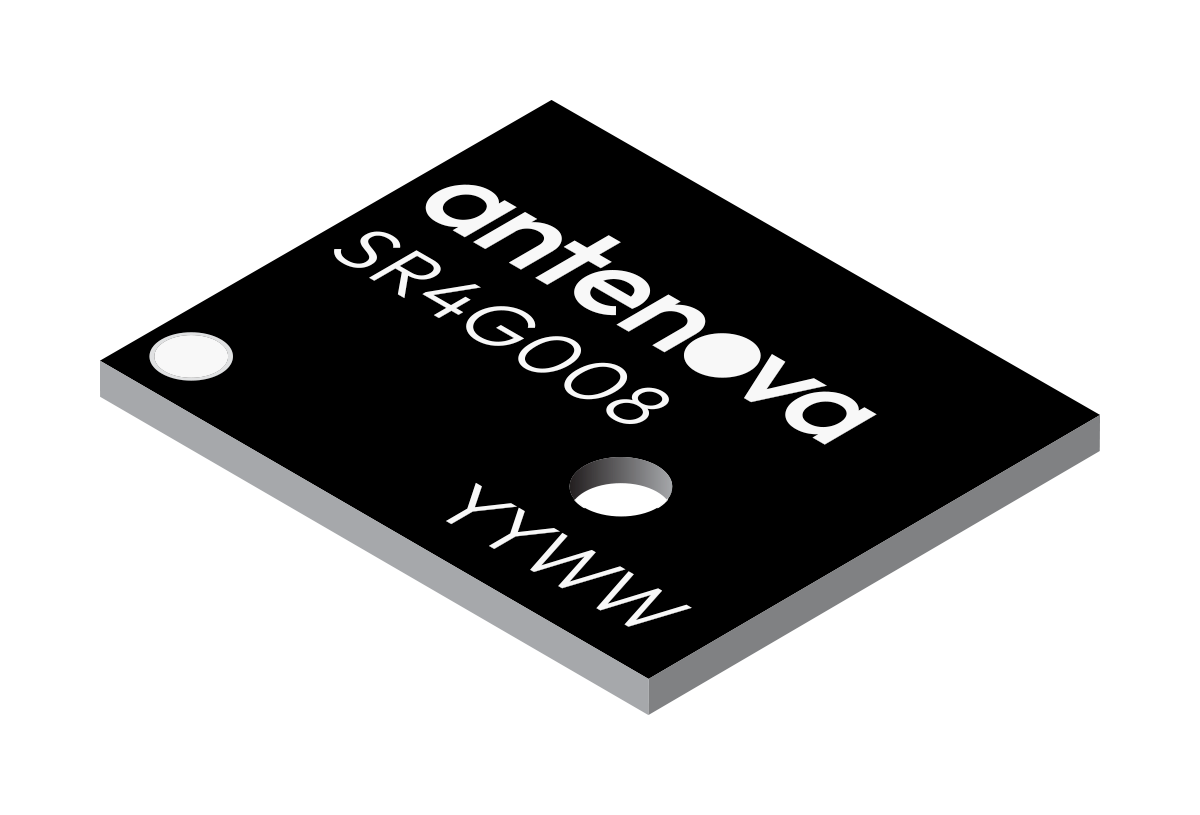

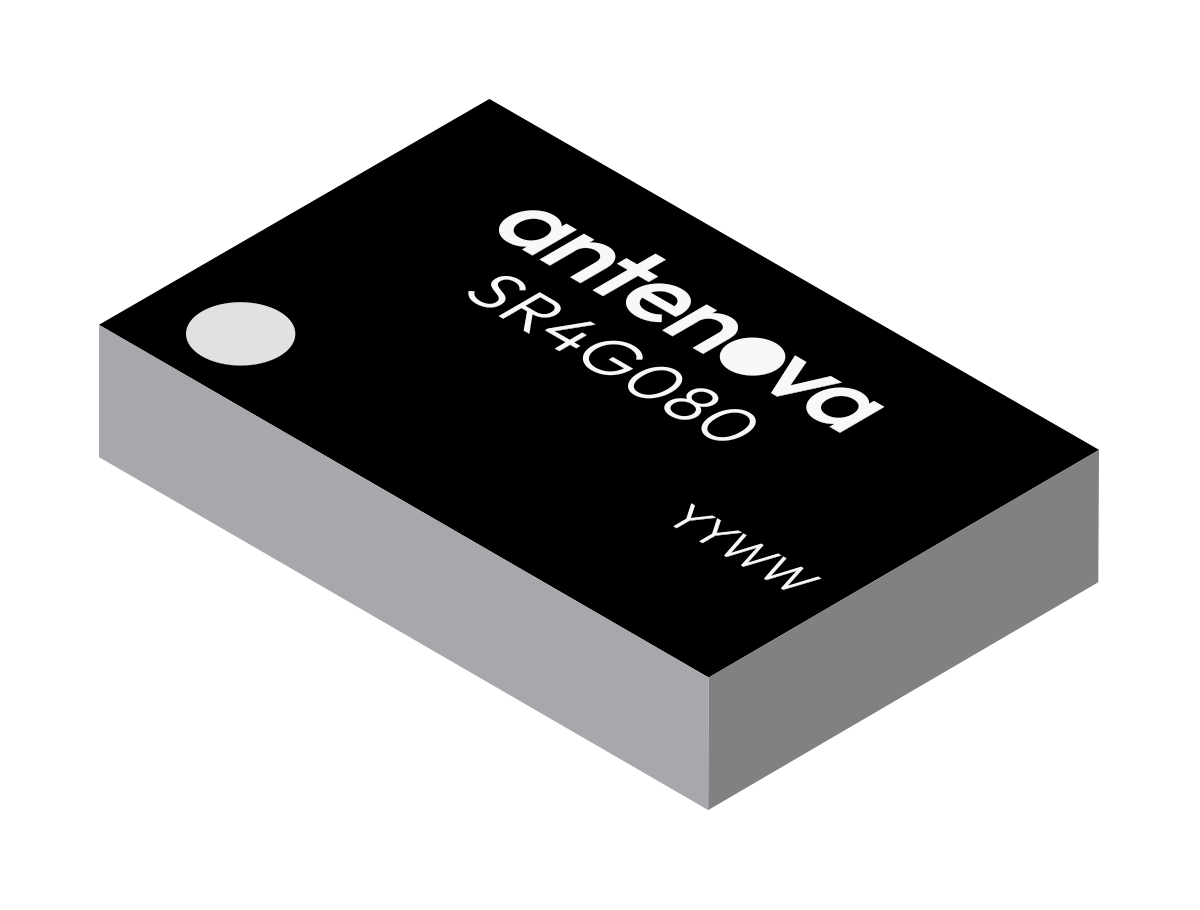

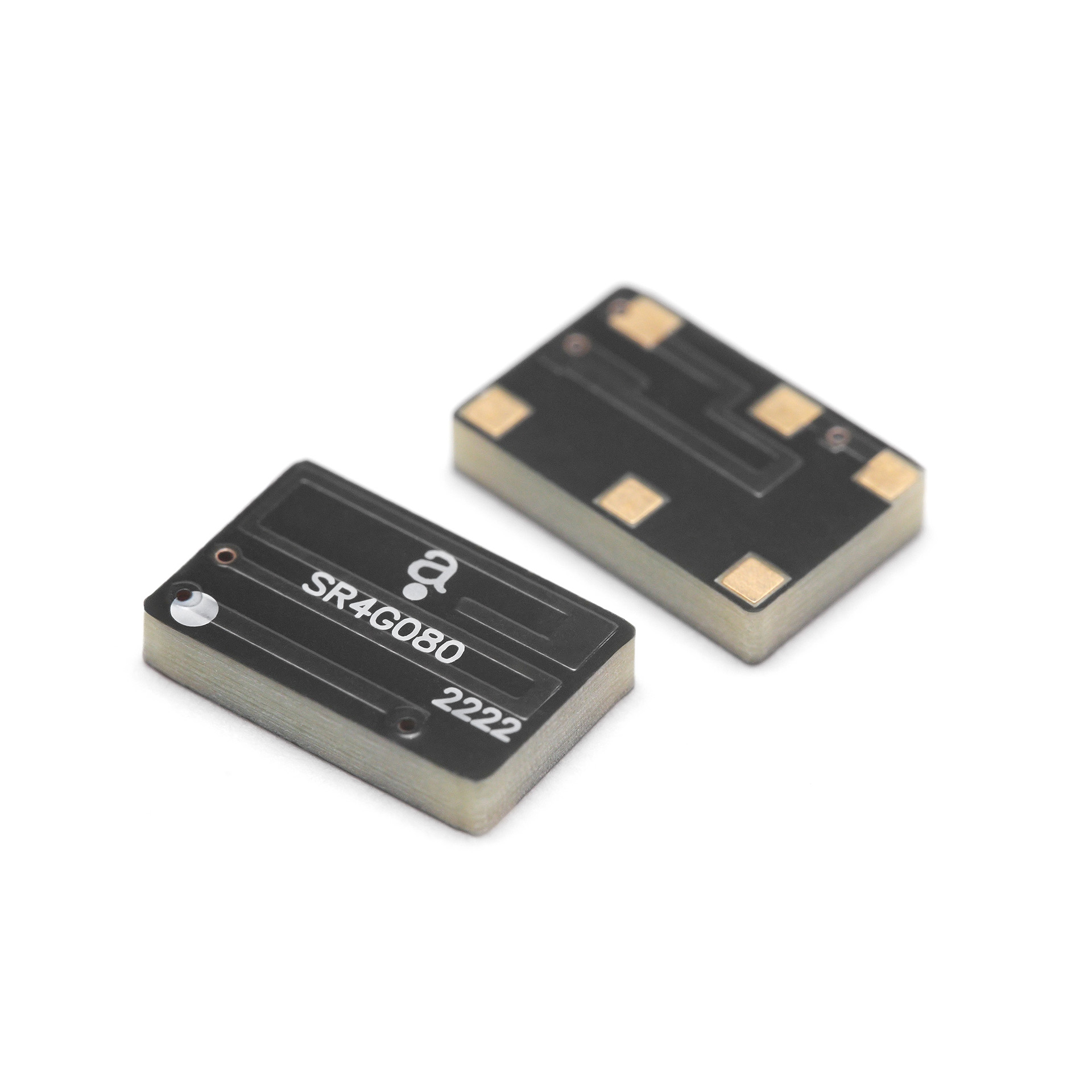

M20071 part of GNSSNOVA, Antenova’s new family of low power, high precision GNSS modules. Looking for an antenna to go with M20071? Try Sinica for high precision applications, or Agosti, best for devices with small PCBs.

Downloads

  • M20071 Product Specification
  • M20071 Evaluation Kit User Guide
  • GNSSNOVA Packet Manual
  • GNSSNOVA Sentence Output
  • GNSS Demo Software
  • M20071 3D model
  • M20071 Footprint
Download
9.0 x 9.0 x 1.8 mmRequest a quote

Presentation video

Applications for the M20071

Market positioning

  • Wearables – Fitness trackers
  • Pet trackers
  • eScooter/Bike trackers
  • Drones
  • Asset trackers
  • Battery Powered Telematics

Power consumption

M20071 at 1.8V                       Current   Power

Tracking (GPS only) Fitness      9.4mA   17mW

Tracking (GPS only) inc. LNA    12mA    21mW

Tracking (GGGB) with LNA        23.5mA 42mW

Market positioning

M20071 is a GNSS receiver with low power consumption. It extends the battery life of small GNSS enabled products. M20071 provides improved accuracy by tracking 4 constellations simultaneously (GPS, GLONASS, BDS, Galileo). M20071 is suited to designs powered from a lithium-ion battery. Size: 9x9x1.8mm

What’s unique about M20071?

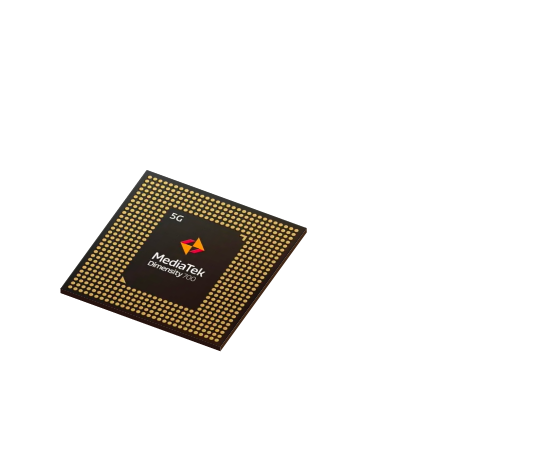

  • M20071 is based on a new Mediatek GNSS chip AG3335MN. This chip has 5X reduction in power consumption compared to previous products.
  • M20071 improves position accuracy by tracking 4 constellations simulaneously (GPS, GLONASS, BDS, Galileo & QZSS).
  • EASY mode speeds-up TTFF (time to first fix) by predicting the ephemeris data for each satellite.
  • Default 1Hz update rate (10Hz can be configured)
  • Hot start <1s, EASY start 5-10s
  • Warm start <25s, Cold start <35s

Order samples

Clear options

$98.00 – $218.00

Add to basket

Delivery Information

Antennas & GPS modules - estimated delivery time for samples is 5-7 days

Evaluation boards - estimated delivery time for samples is 7-14 days
