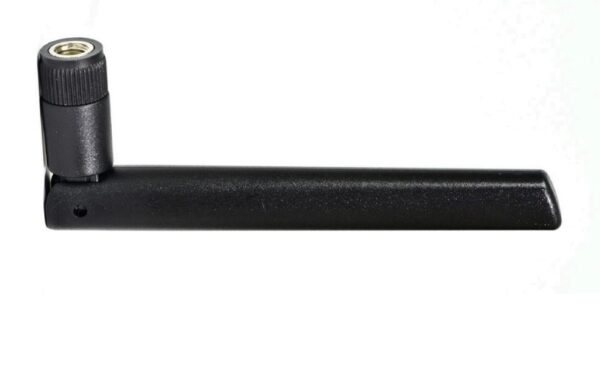

Nitida
SRE3W084 - External 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive Connector Mount Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Product P/N | SRE3W084 |
| Antenna type | Passive |
| Dimensions (mm) | 123.7 × 12.7 × 12.1 |
| Operating temperature | -20 °C to +65 °C |
| Standard colors | Black |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-13.0, ~-14.0, ~-8.0 |
| VSWR | ~1.6:1, ~1.8:1, ~2.3:1 |
| Efficiency (%) | ~70,~60,~55 |
| Average Gain (dB) | ~-1.5,~-1.9,~-1.7 |
| Peak Gain (dBi) | ~3.1,~5.2,~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Nitida is a Terminal Mount antenna for the Wi-Fi6E/WiFi7 bands. The Nitida antenna is fitted on the outside of the product enclosure with a SMA connector. The antenna covers the Wi-Fi6E & WiFi7 bands: 2.4-2.5 GHz, 4.9-5.9GHz and 5.925-7.125GHz.
Key Features
Ground Plane Dependent
up to 70% WIFI Efficiency
WIFI 6E / WIFI 7 Antenna
Passive Antenna
Monopole Antenna
5.2 dBi WIFI Peak Gain
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
