Rabo
SREL062 - External 5G NR / Cellular / LPWA Passive Connector Mount Antenna
Connections (1)
1×
5G NR / Cellular / LPWA
| Mounting | Connector Mount |
|---|---|
| Product P/N | SREL062 |
| Antenna type | Passive |
| Dimensions (mm) | 152.5 × 13.5 × 22.5 |
| Operating temperature | -20 °C to +70 °C |
| Certificates | IP67 (Fixed version) |
| Standard colors | Black |
| Certificates | IP67 (Fixed version) |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Frequency (MHz) | 617-960, 1420-1660, 1710-2170, 2300-2400, 2500-2690, 3200-3800 |
|---|---|
| Return Loss (dB) | ~-8.77, ~-9.36, ~-8.99, ~-17.99, ~-15.61, ~-7.15 (Fixed - IP67) |
| VSWR | ~2.20:1, ~2.10:1, ~2.15:1, ~1.30:1, ~1.45:1, ~2.60:1 (Fixed - IP67) |
| Efficiency (%) | ~45,~60,~60,~70,~80,~75 (Fixed - IP67) |
| Average Gain (dB) | ~-3.42,~-2.09,~-2.27,~-1.52,~-0.79,~-1.26 (Fixed - IP67) |
| Peak Gain (dBi) | ~0.69,~2.14,~2.73,~4.14,~4.89,~3.65 (Fixed - IP67) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description

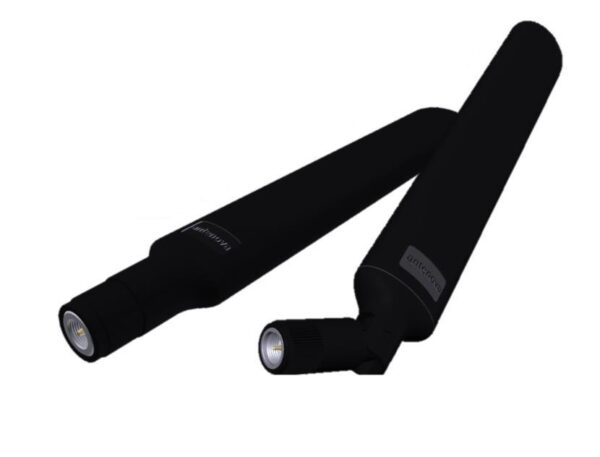

Rabo is constructed with an ergonomic blade design to blend well to the outside of a device. Two versions are available, an IP67 design for outdoor applications and a hinged swivel-mounted version. The antenna is designed to work with various GND plane sizes or in free space for ease of integration.
Key Features
Ground Plane Dependent
Wide band 5G Antenna
Full 4G LTE backward compatibility
617-3800 MHz Frequency Range
Passive Antenna
Monopole Antenna
4.89 dBi 5G Peak Gain
up to 80% 5G Efficiency
Applications
Embedded Antenna Solutions
Wearables
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Broadcasting & Media
Consumer & Entertainment
