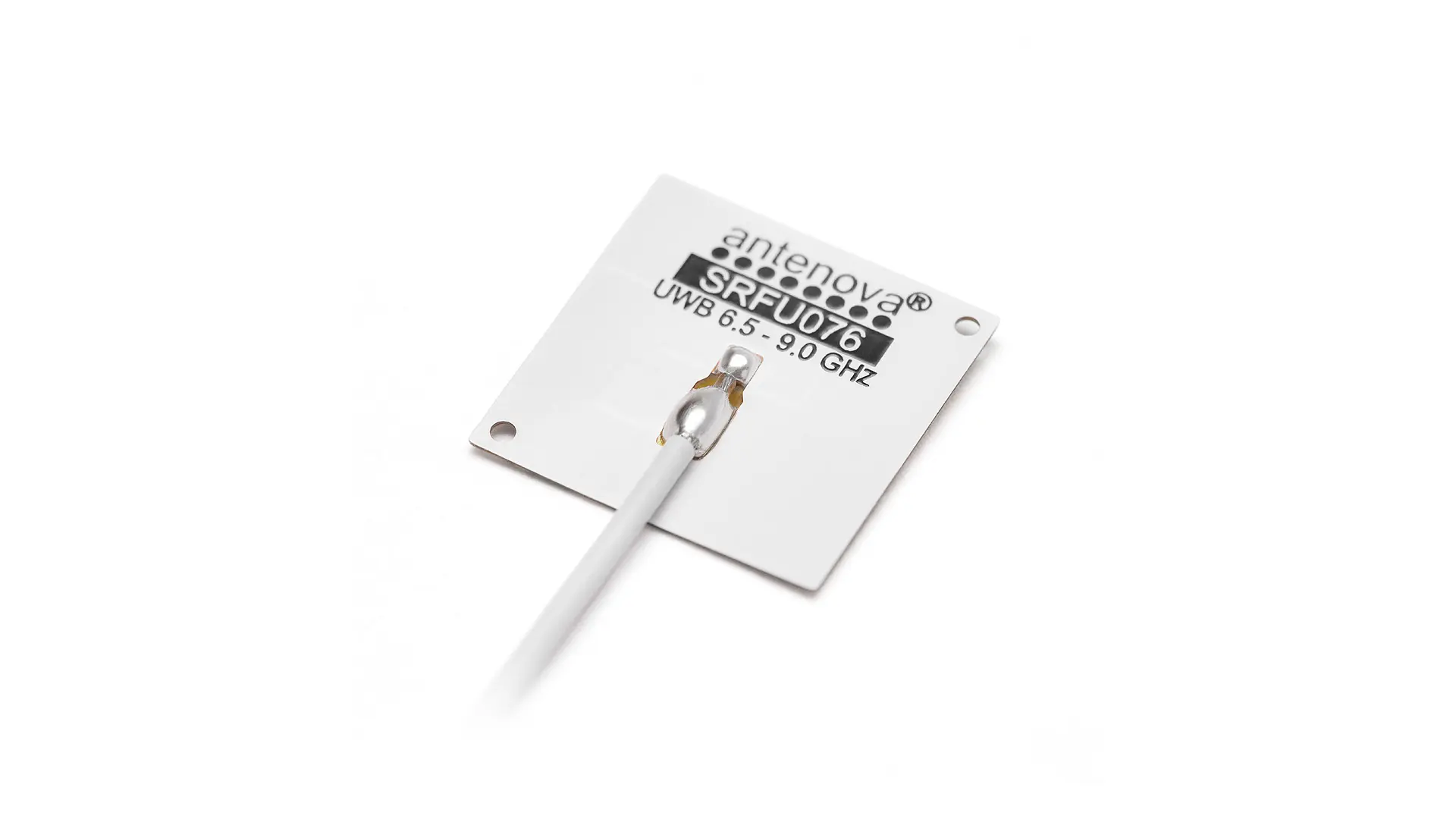

Vorax
SRFU076 - Internal UWB Passive Self-Adhesive Flexible PCB Antenna
1×
UWB
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFU076-50 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 15.0 × 15.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | Default Cable Length is 50mm |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
UWB
| Frequency (MHz) | 6500-9000 |
|---|---|
| Return Loss (dB) | ~-14.0 |
| VSWR | ~1.5:1 |
| Efficiency (%) | ~75 |
| Average Gain (dB) | ~-1.2 |
| Peak Gain (dBi) | ~5.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Vorax is a UWB (Ultra Wide Band) antenna for the 6.5-9GHz band. The Flexible PCB antenna is fitted on the inside of the product enclosure and uses a uFL connector. The antenna covers the 6.5-9GHz UWB band.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Ultra Wide band Antenna
5.3 dBi UWB Peak Gain
up to 75% UWB Efficiency
6500-9000 MHz Frequency Range
Customizable Cable and Connector
Applications
Embedded Antenna Solutions
Logistics & Asset Tracking
Security & Safety
Navigation & Positioning
Short-Range Connectivity
