Armata

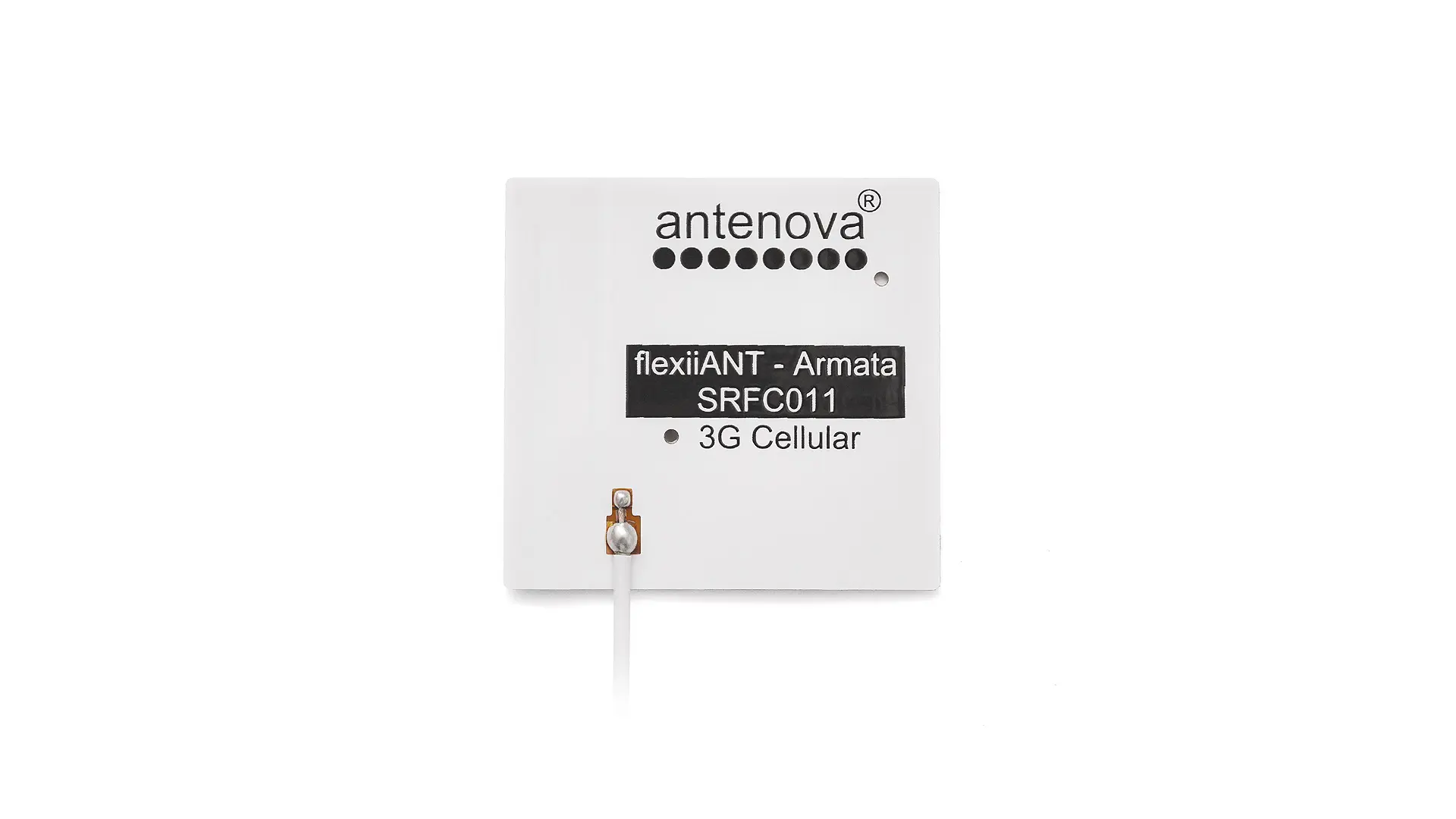

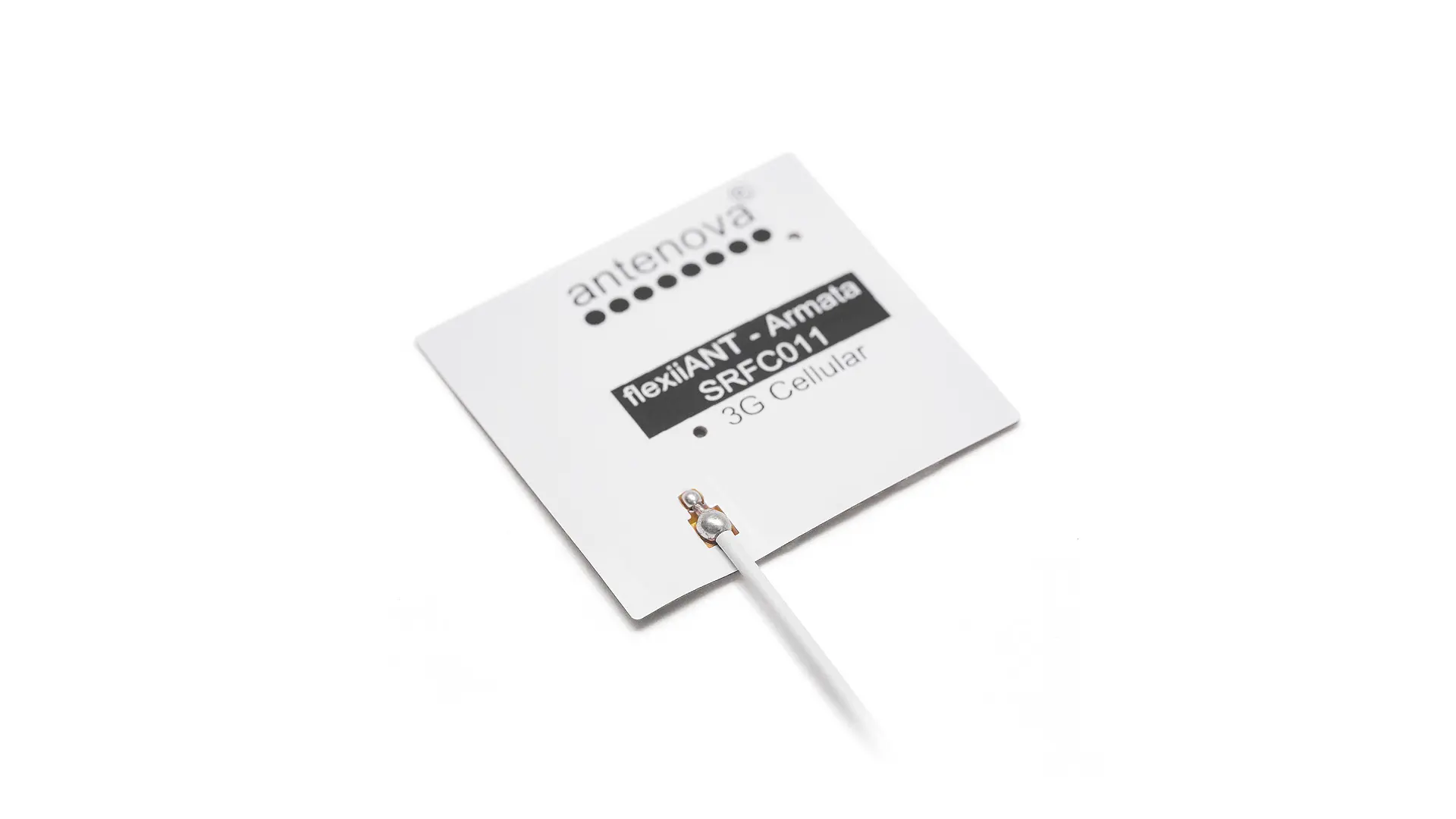

SRFC011 - Internal 3G / 2G / Cellular Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFC011 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 30.0 × 28.5 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Frequency (MHz) | 824-960, 1710-1990, 2110-2170 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-8.0, ~-12.0 |
| VSWR | ~2.9:1, ~2.2:1, ~1.6:1 |
| Efficiency (%) | ~40,~55,~60 |
| Average Gain (dB) | ~-3.79,~-2.59,~-2.21 |
| Peak Gain (dBi) | ~2.46,~4.06,~3.89 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A 3G antenna for GSM 850/900, DCS 1800, PCS 1900, and WCDMA 2100 bands. The antenna comes with a cable and IPEX MHF connector. Suitable for small tracking devices and remote monitoring. Self-adhesive and easily integrated.
Available in 100mm cable length. Other cable lengths are available, but please note that minimum order quantities will apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
4.06 dBi CELLULAR Peak Gain
up to 60% CELLULAR Efficiency
824-2170 MHz Frequency Range
Applications
Wearables
Mobile Networks
Cellular Networks
Machine Control
Asset Tracking and Security
Civil Applications
Automotive
Telecommunication
Broadband Communications
Wireless Security System
Energy Monitoring
Air Quality and Pollution Monitoring
Telemetry / Telematics
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
