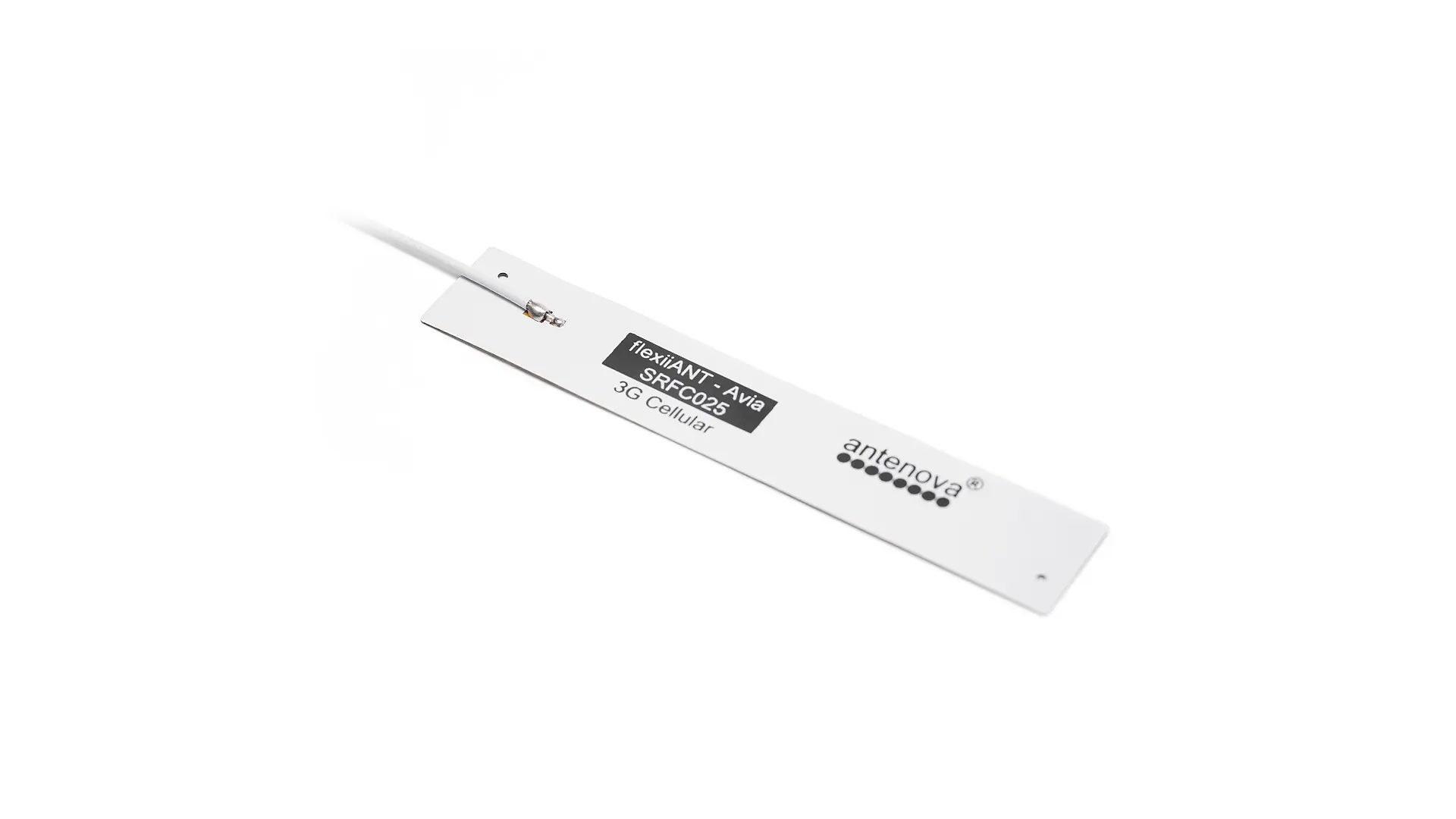

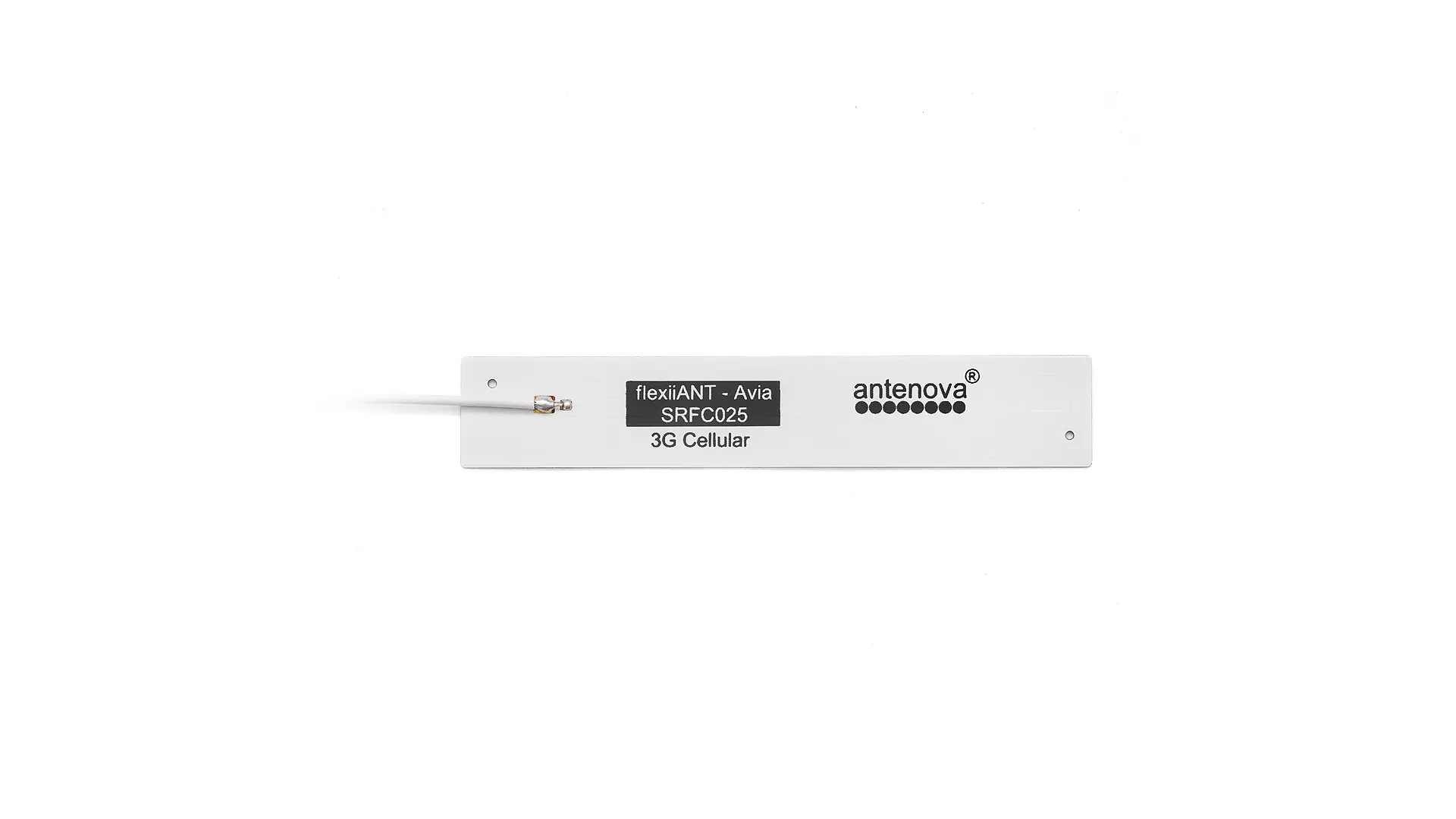

SRFC025 - Internal 3G / 2G / Cellular Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFC025 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 71.0 × 12.5 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Frequency (MHz) | 824-960, 1710-1990, 2110-2170 |
|---|---|
| Return Loss (dB) | ~-6.6, ~-8.7, ~-17.0 |
| VSWR | ~2.8:1, ~2.2:1, ~1.3:1 |
| Efficiency (%) | ~45,~70,~65 |
| Average Gain (dB) | ~-3.31,~-1.10,~-1.74 |
| Peak Gain (dBi) | ~4.07,~5.44,~3.90 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Atta is a flexible printed circuit (FPC) antenna with cable that enables direct connection to the host PCB with an I-PEX coax connector. The host PCB ground is not used, therefore the antenna is easy to integrate.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
824-2170 MHz Frequency Range
5.44 dBi CELLULAR Peak Gain
up to 70% CELLULAR Efficiency
Applications
Wearables
Mobile Networks
Cellular Networks
Machine Control
Asset Tracking and Security
Civil Applications
Automotive
Telecommunication
Broadband Communications
Wireless Security System
Energy Monitoring
Air Quality and Pollution Monitoring
Telemetry / Telematics
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
