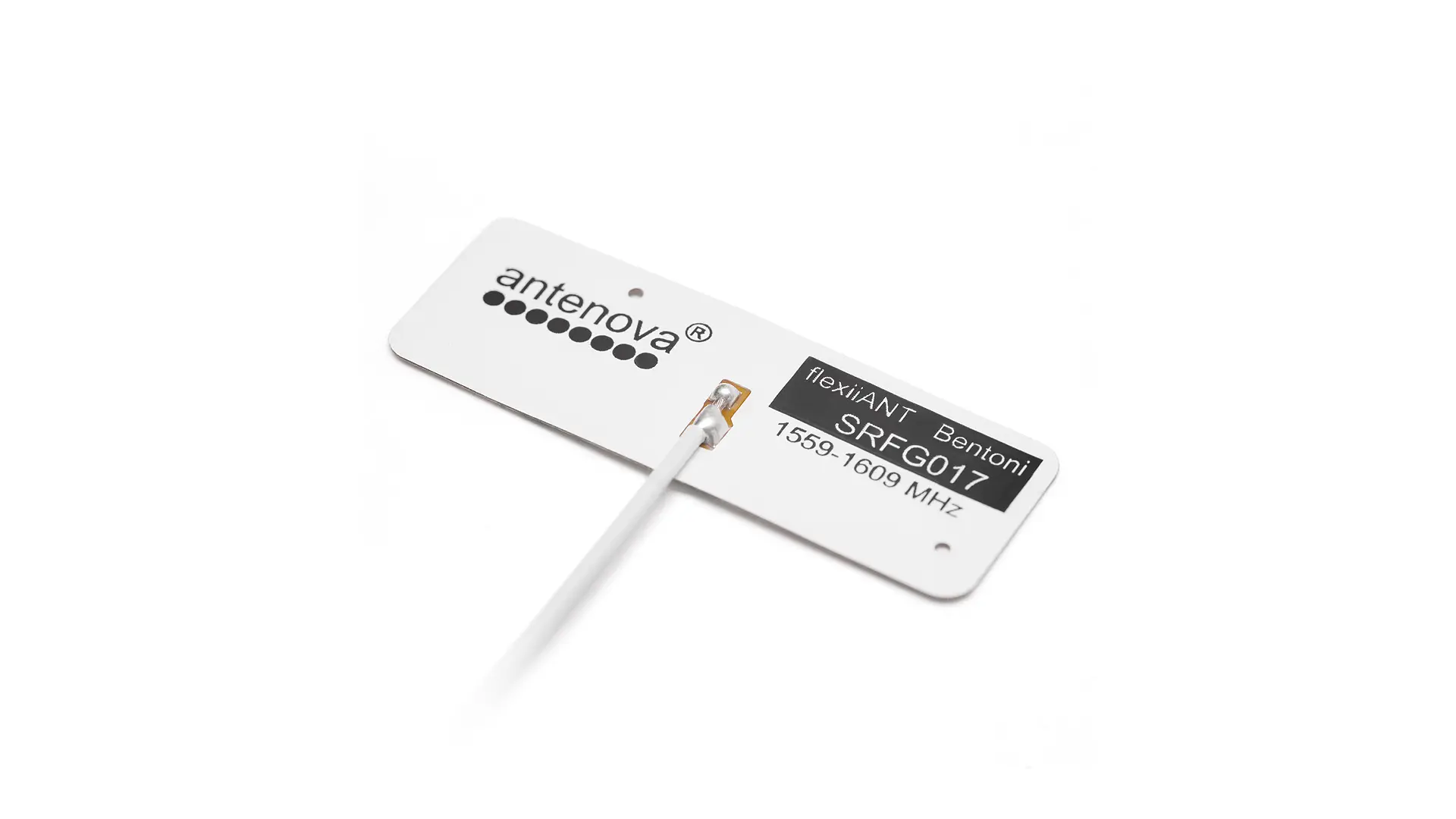

Bentoni

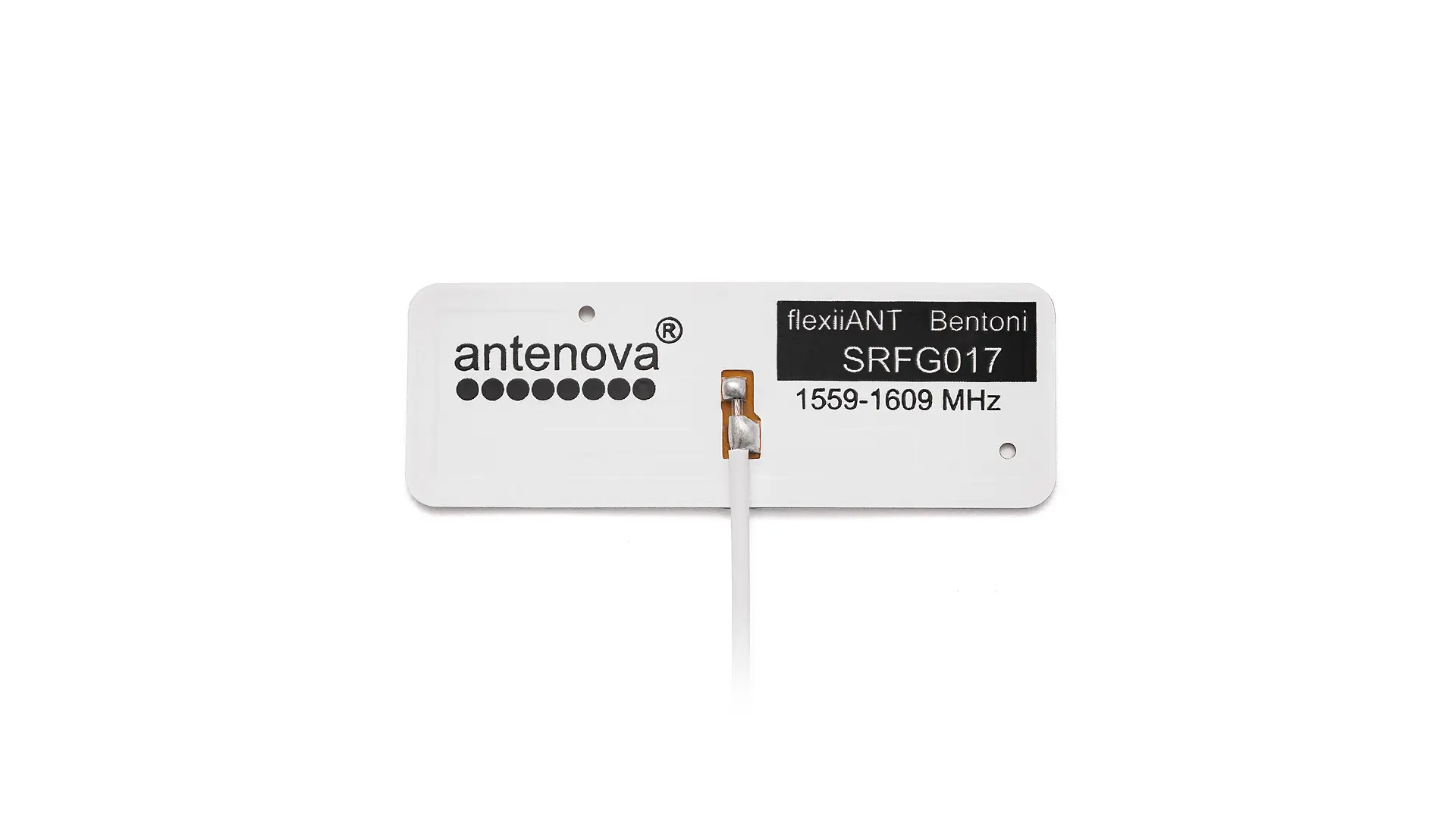

SRFG017 - Internal GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFG017 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 40.0 × 14.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-14.0 |
| VSWR | ~1.45:1 |
| Efficiency (%) | ~75 |
| Average Gain (dB) | ~-1.2 |
| Peak Gain (dBi) | ~4.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
GNSS Antenna (GPS, GLONASS, Beidou and Galileo). Self adhesive-mounted and easily integrated. Available in 50mm and 100mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
up to 75% GNSS Efficiency
4.0 dBi GNSS Peak Gain
Applications
Wearables
Logistics and Shipping
Smart Cities
Smart Farming
Fleet Management
Autonomous Driving
Drone Operation
Security and Surveillance
Transportation
GIS - Geographic Information System
Hazard Mitigation
Automation
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Aviation Applications
Maritime Applications
Satellite Realtime Navigation
Autonomous Applications
Mobile Applications
Automotive
Remote Monitoring and Control
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Government & Public Safety
Telemetry / Telematics
Routers
Gateways & Data Terminals
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
