Robusta

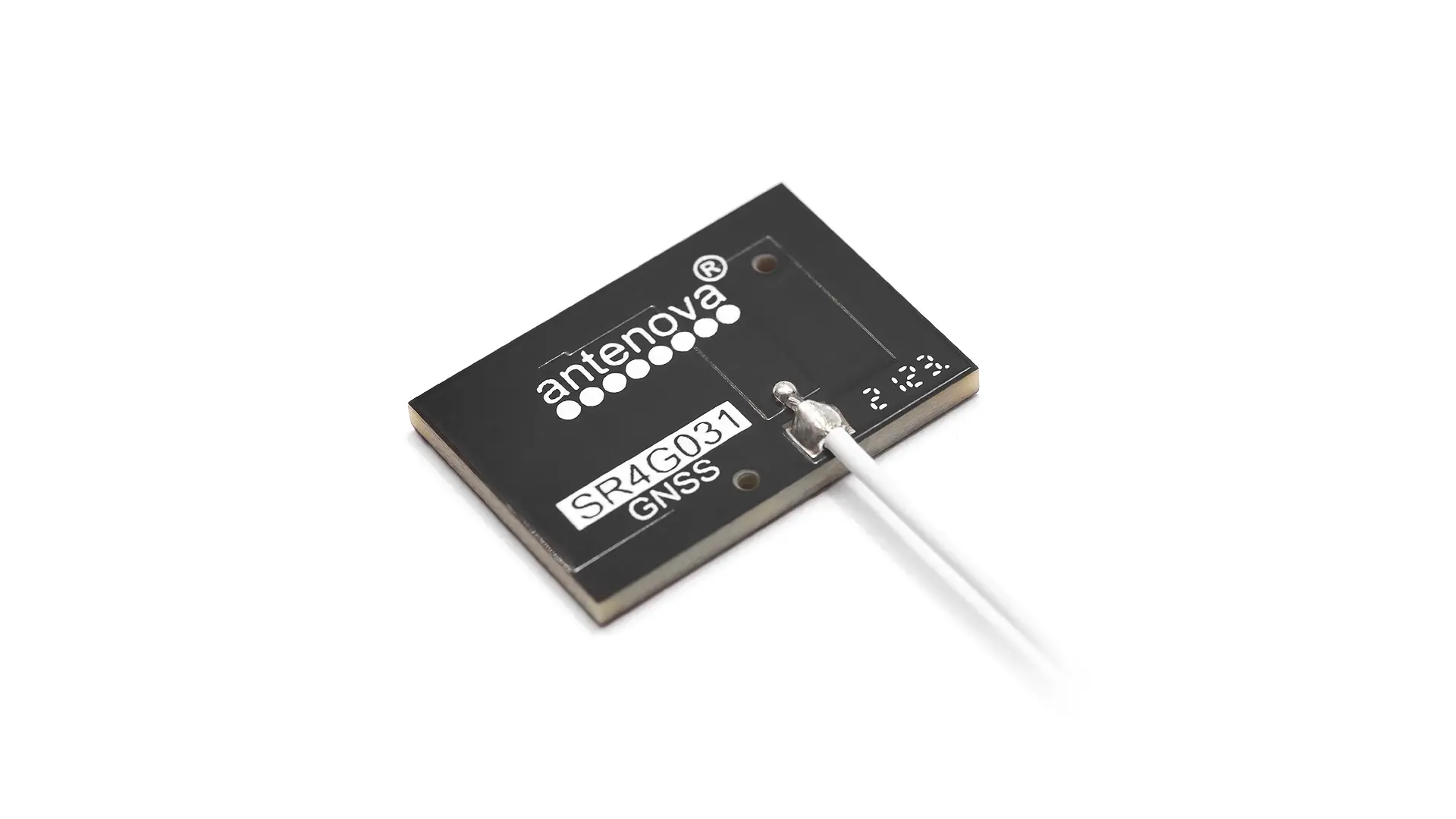

SR4G031 - Internal GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive Self-Adhesive Rigid PCB Antenna with Reflector technology allowing to use on metal
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Self-Adhesive Rigid PCB |
|---|---|
| Product P/N | SR4G031 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 23.0 × 16.0 × 1.6 |
| Operating temperature | -40 °C to +85 °C |
| Note | Reflector technology allowing to use on metal |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-11.0 (on Metal GND) |
| VSWR | ~1.7:1 (on Metal GND) |
| Efficiency (%) | ~50 (on Metal GND) |
| Average Gain (dB) | ~-3.0 (on Metal GND) |
| Peak Gain (dBi) | ~3.8 (on Metal GND) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low-profile GNSS antenna designed to work on metal surfaces. It uses Antenova’s REFLECTOR technology which enables it to radiate effectively in positions where a normal antenna will not operate – such as inside metal housings or mounted on metal objects.
Key Features
Ground Plane Independent
Passive FR4 Chip Antenna
up to 50% GNSS Efficiency
3.8 dBi GNSS Peak Gain (on Metal GND)
Reflector Antenna - works on Metal
Applications
Wearables
Logistics and Shipping
Smart Cities
Smart Farming
Fleet Management
Autonomous Driving
Drone Operation
Security and Surveillance
Transportation
GIS - Geographic Information System
Hazard Mitigation
Automation
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Aviation Applications
Maritime Applications
Satellite Realtime Navigation
Autonomous Applications
Mobile Applications
Automotive
Remote Monitoring and Control
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Government & Public Safety
Telemetry / Telematics
Routers
Gateways & Data Terminals
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
