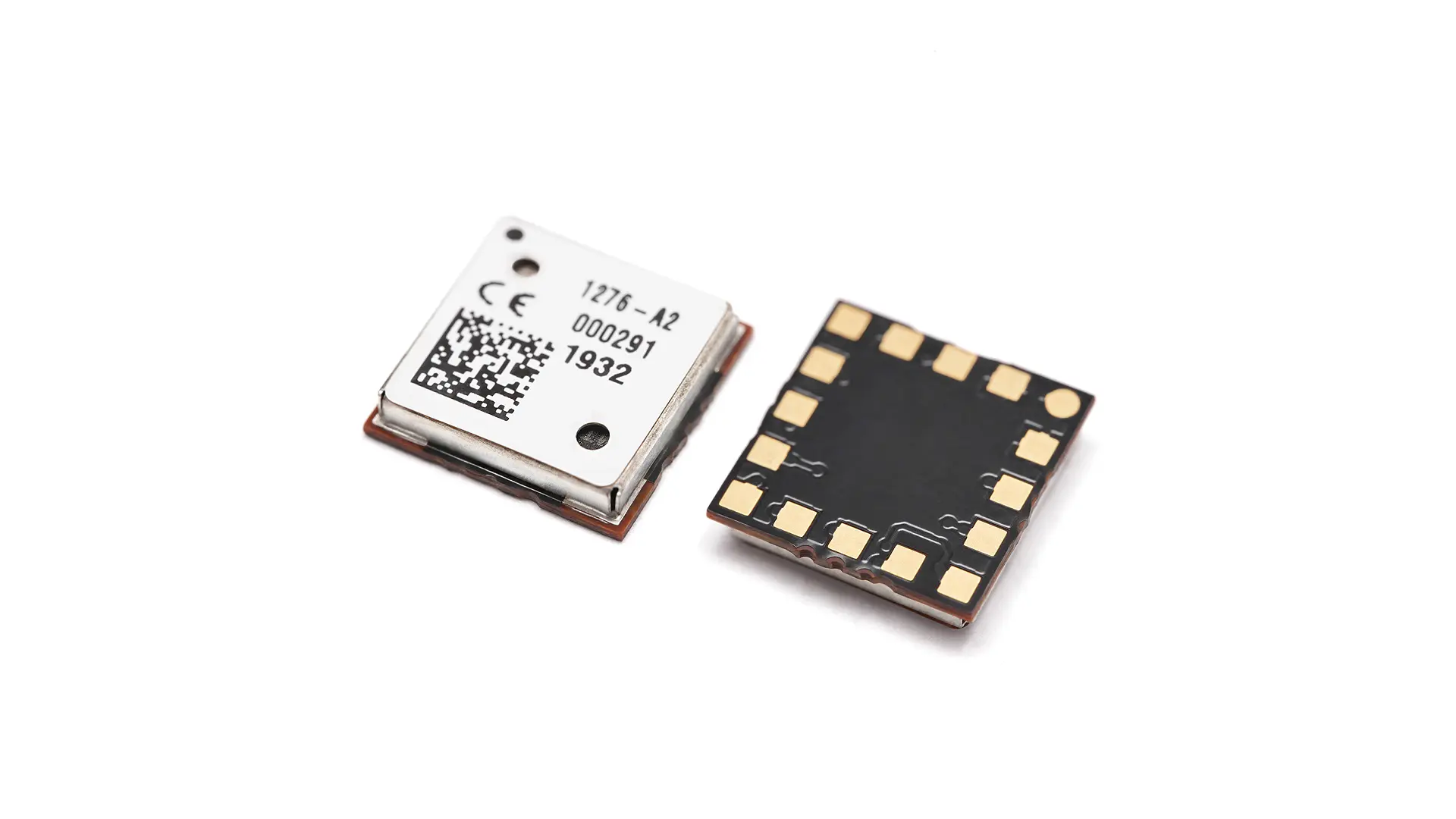

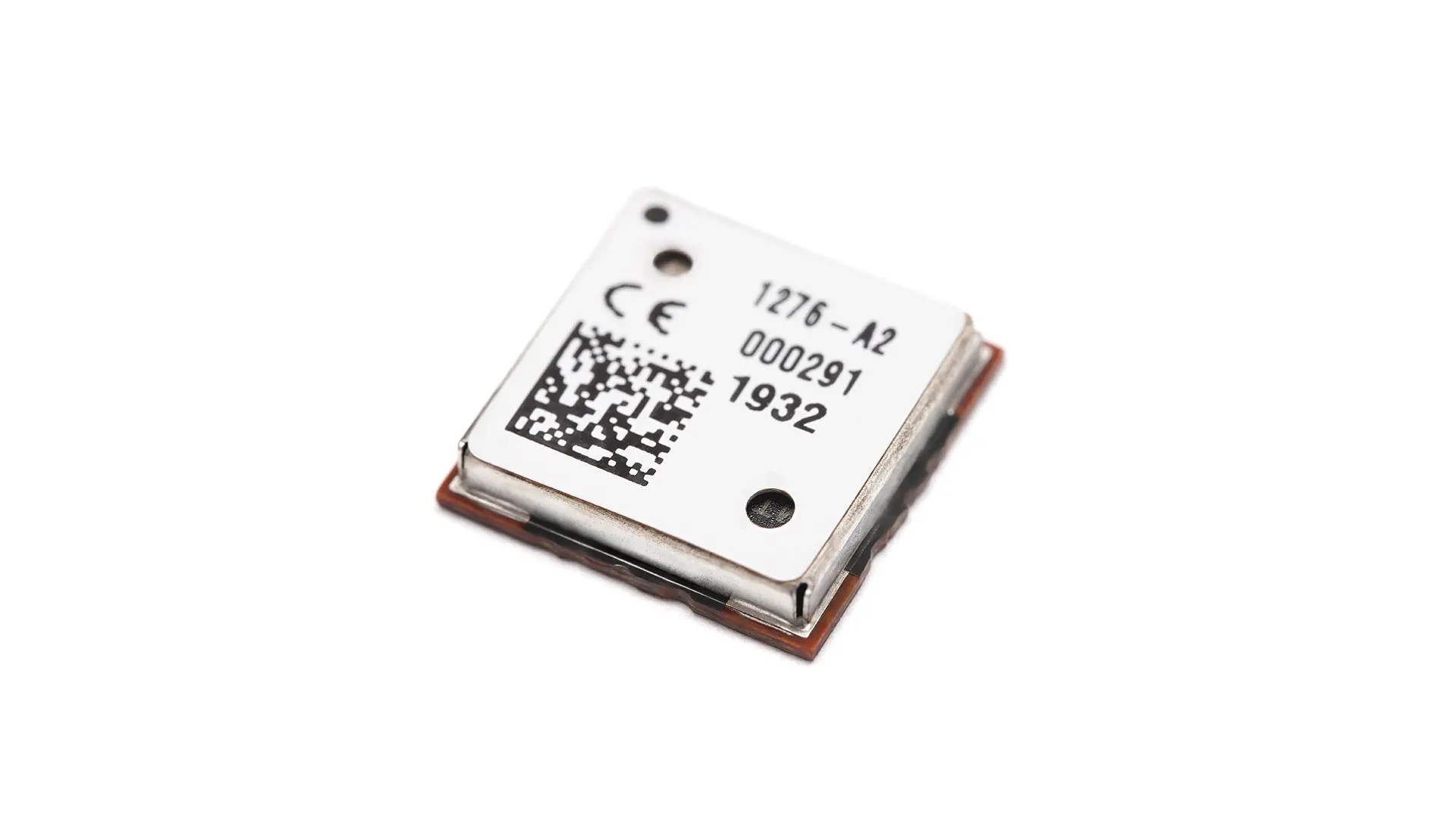

GNSS Receiver Module M10578-A2
M10578-A2 - Embedded GPS / QZSS / Galileo - L1 Active Surface Mount SMD Receiver with built-in LNA
Connections (1)
1×
GPS / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | M10578-A2 |
| Antenna type | Active Receiver with built-in LNA |
| Dimensions (mm) | 9.0 × 9.0 × 1.8 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
GNSS Receiver specifications
connection 1
GPS / QZSS / Galileo - L1
| Frequency (MHz) | 1575.42 |
|---|---|
| Chip | MTK MT3337-E ROM Chip |
| Data Output Protocol | NMEA 0183 |
| Host Interface | UART |
| LNA | Built-in LNA |
| Saw Filter Type | Post-Filter |
| Efficiency (%) | Receiver only (No Antenna Built-in) |
| Voltage (V) | 2.8 - 4.3 |
| Default data rate on UART | 4800/9600/38400/115200 bps |
| Horizontal position accuracy | <2.5m CEP |
| Maximum position update rate | 5 Hz (Default 1Hz) |
| Acquisition (Cold) | -148dBm |
| Tracking | -165dBm |
| Hot start | <1s |
| Warm start | <25s (typical) |
| Cold start | <35s (typical) |
Product Description
A compact GPS module using the MTK chipset – a fully integrated receiver including LNA to amplify satellite signals.
Key Features
Post-Filter GNSS
Active Receiver Antenna
built-in LNA
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
