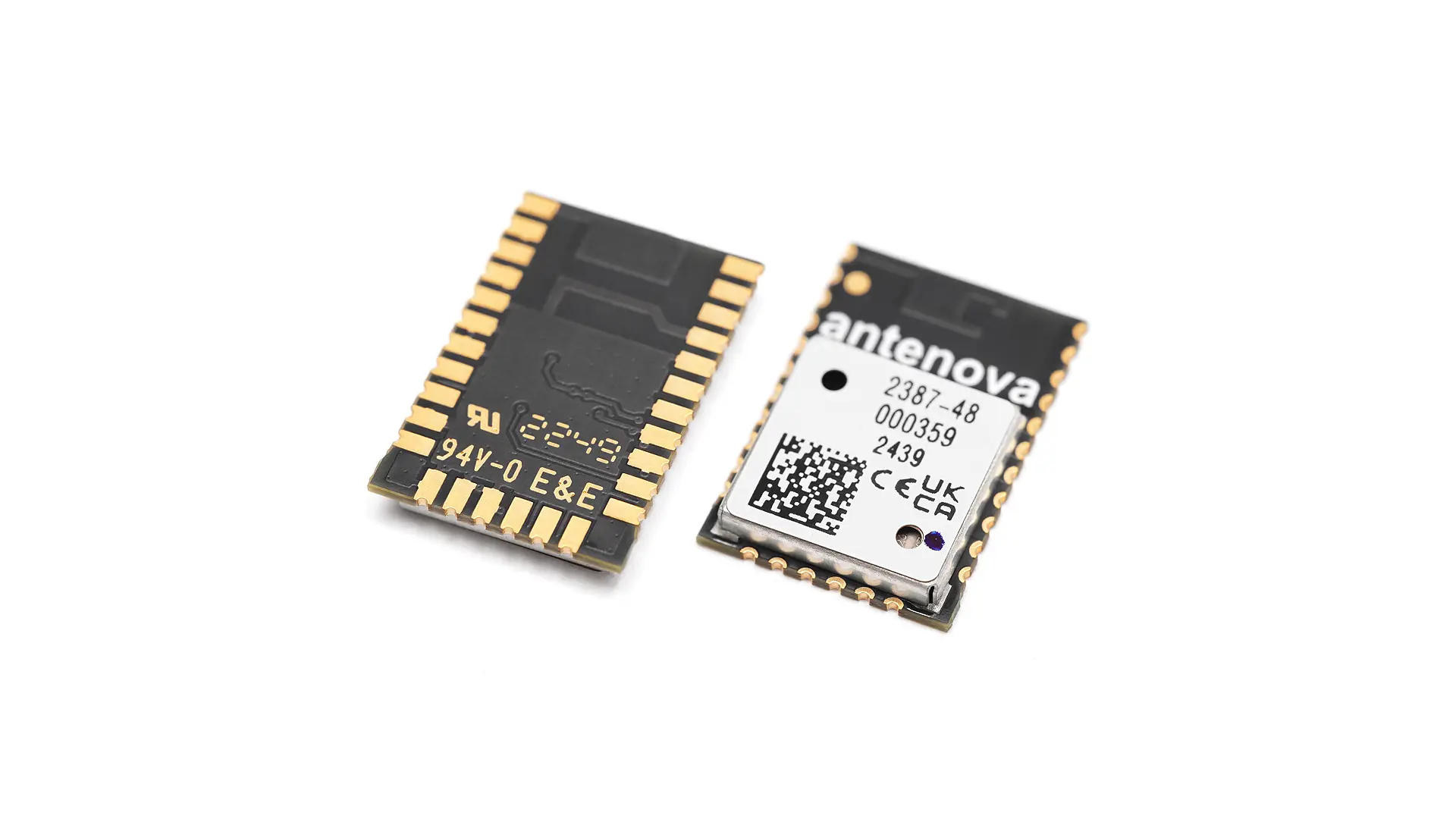

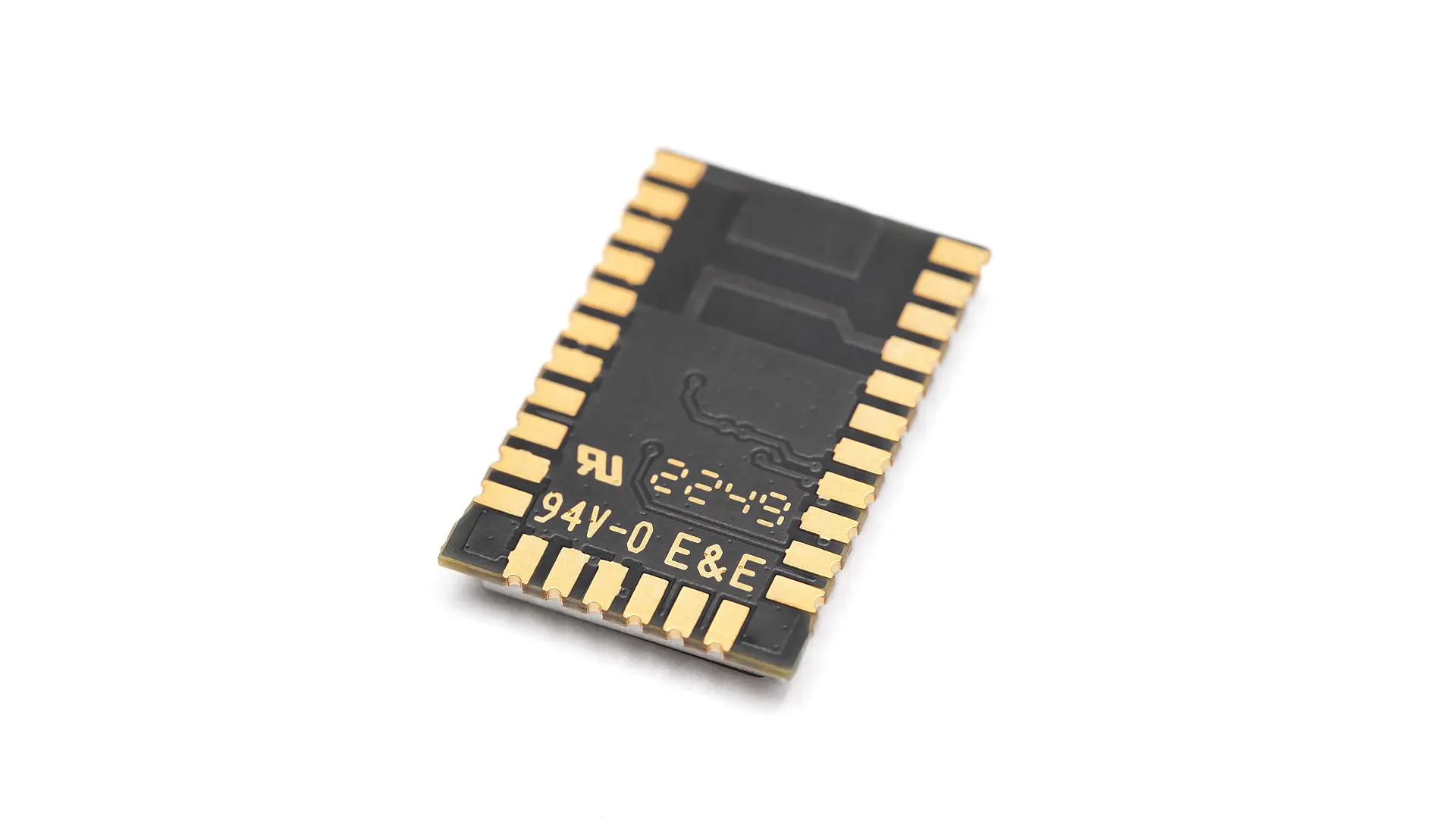

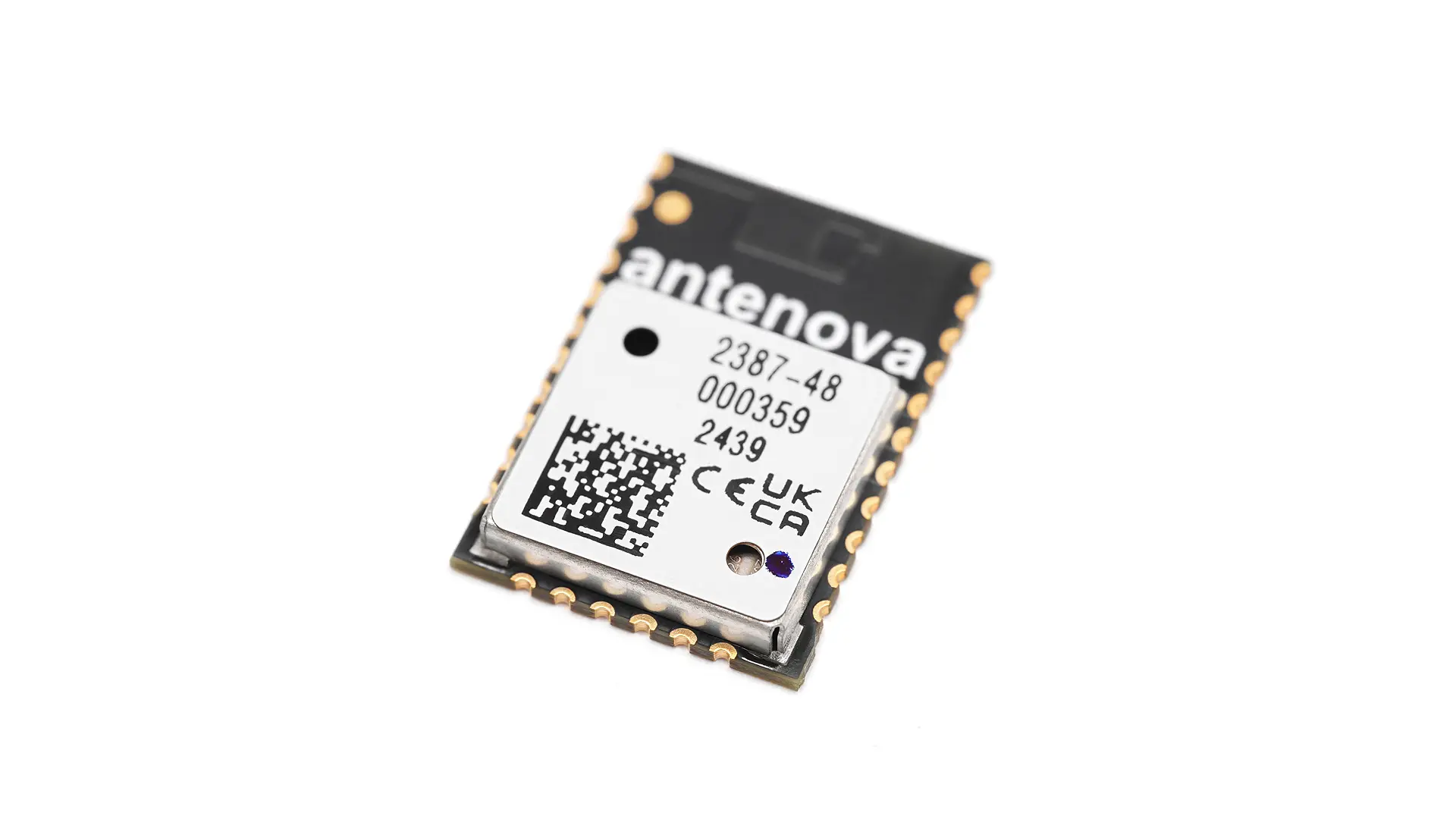

GNSS Receiver Module M20048-1
M20048-1 - Embedded GPS / QZSS / Galileo - L1 Active Surface Mount SMD Receiver with built-in Antenna and LNA
Connections (1)
1×
GPS / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | M20048-1 |
| Antenna type | Active Receiver with built-in Antenna and LNA |
| Dimensions (mm) | 13.8 × 9.5 × 1.8 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / QZSS / Galileo - L1
| Frequency (MHz) | 1575.42 |
|---|---|
| Chip | MTK MT3337-E ROM Chip |
| Data Output Protocol | NMEA 0183 |
| Host Interface | UART |
| LNA | Built-in LNA |
| Saw Filter Type | Post-Filter |
| Efficiency (%) | ~57 (Built-in Antenna) |
| Voltage (V) | 2.8 - 4.3 |
| Default data rate on UART | 9600 bps default rate, modify by input command |
| Horizontal position accuracy | <2.5m CEP |
| Maximum position update rate | 5 Hz (Default 1Hz) |
| Acquisition (Cold) | -148dBm |
| Tracking | -165dBm |
| Hot start | <1s |
| Warm start | <25s (typical) |
| Cold start | <35s (typical) |
Antenna Description
Low profile module with antenna using the MediaTek MTK3337E chipset, for L1-band GPS signals.
Key Features
Post-Filter GNSS
Active Receiver Antenna
built-in Antenna and LNA
up to 57% GNSS Efficiency
Applications
Wearables
Logistics and Shipping
Smart Cities
Smart Farming
Fleet Management
Autonomous Driving
Drone Operation
Security and Surveillance
Transportation
GIS - Geographic Information System
Hazard Mitigation
Automation
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Aviation Applications
Maritime Applications
Satellite Realtime Navigation
Autonomous Applications
Mobile Applications
Automotive
Remote Monitoring and Control
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Government & Public Safety
Telemetry / Telematics
Routers
Gateways & Data Terminals
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
