Robusta

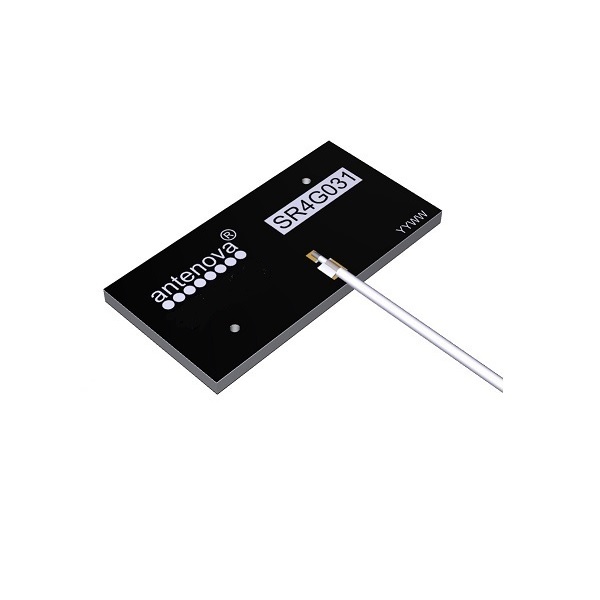

SR4G031 - Internal GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive Self-Adhesive Rigid PCB Antenna with Reflector technology allowing to use on metal
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Self-Adhesive Rigid PCB |
|---|---|
| Product P/N | SR4G031 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 23.0 × 16.0 × 1.6 |
| Operating temperature | -40 °C to +85 °C |
| Note | Reflector technology allowing to use on metal |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-11.0 (on Metal GND) |
| VSWR | ~1.7:1 (on Metal GND) |
| Efficiency (%) | ~50 (on Metal GND) |
| Average Gain (dB) | ~-3.0 (on Metal GND) |
| Peak Gain (dBi) | ~3.8 (on Metal GND) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low-profile GNSS antenna designed to work on metal surfaces. It uses Antenova’s REFLECTOR technology which enables it to radiate effectively in positions where a normal antenna will not operate – such as inside metal housings or mounted on metal objects.
Key Features
Ground Plane Independent
Passive FR4 Chip Antenna
up to 50% GNSS Efficiency
3.8 dBi GNSS Peak Gain (on Metal GND)
Reflector Antenna - works on Metal
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
