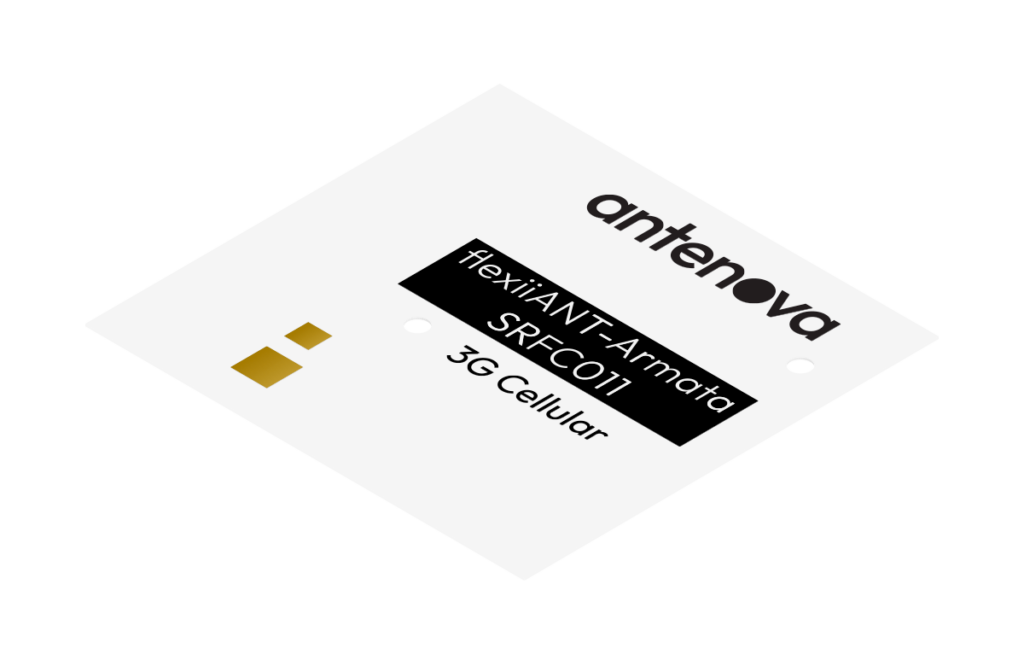

Cellular, 3G and MIMO: Armata flexible antenna
P/N SRFC011

armata-SRFC011-1
  • Frequency: 824 - 960MHz, 1710 -1990MHz, 2110-2170MHz
  • Dimensions: 30.0 x 28.5 x 0.15mm
  • Efficiency: 45% at 824 - 960MHz, 55% at 1710 -1990MHz, 60% at 2110-2170MHz

A small form factor penta-band 3G antenna for GSM 850/900, DCS 1800, PCS 1900 and WCDMA 2100. Armata comes with a cable and IPEX MHF connector and is suitable for OBD II modules, small tracking devices and remote monitoring. Self adhesive mounted and easily integrated – you can “plug and play”.

Available in 100mm cable length. Other cable lengths are available, but please note that minimum order quantities will apply.

Downloads

Technical Specification Armata
Download

Order

Clear

$12.50

Delivery Information

Antennas and GPS modules - estimated delivery date of 5-7 days

Evaluation boards - estimated delivery date of 7-14 days

* All antennas are sold in packs of 5

Got a technical question about this product?

You can get all the technical answers you need over on our dedicated product knowledge platform; ask.antenova.com.

Search our existing questions or ask something new. Join hundreds of experts who are ready to answer your questions today.
