Bentoni

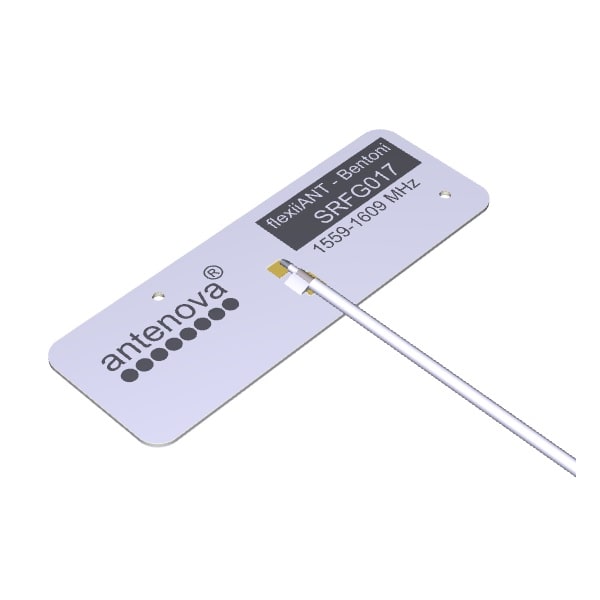

SRFG017 - Internal GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFG017 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 40.0 × 14.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-14.0 |
| VSWR | ~1.45:1 |
| Efficiency (%) | ~75 |
| Average Gain (dB) | ~-1.2 |
| Peak Gain (dBi) | ~4.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
GNSS Antenna (GPS, GLONASS, Beidou and Galileo). Self adhesive-mounted and easily integrated. Available in 50mm and 100mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
up to 75% GNSS Efficiency
4.0 dBi GNSS Peak Gain
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
