GNSS Receiver Module M20072

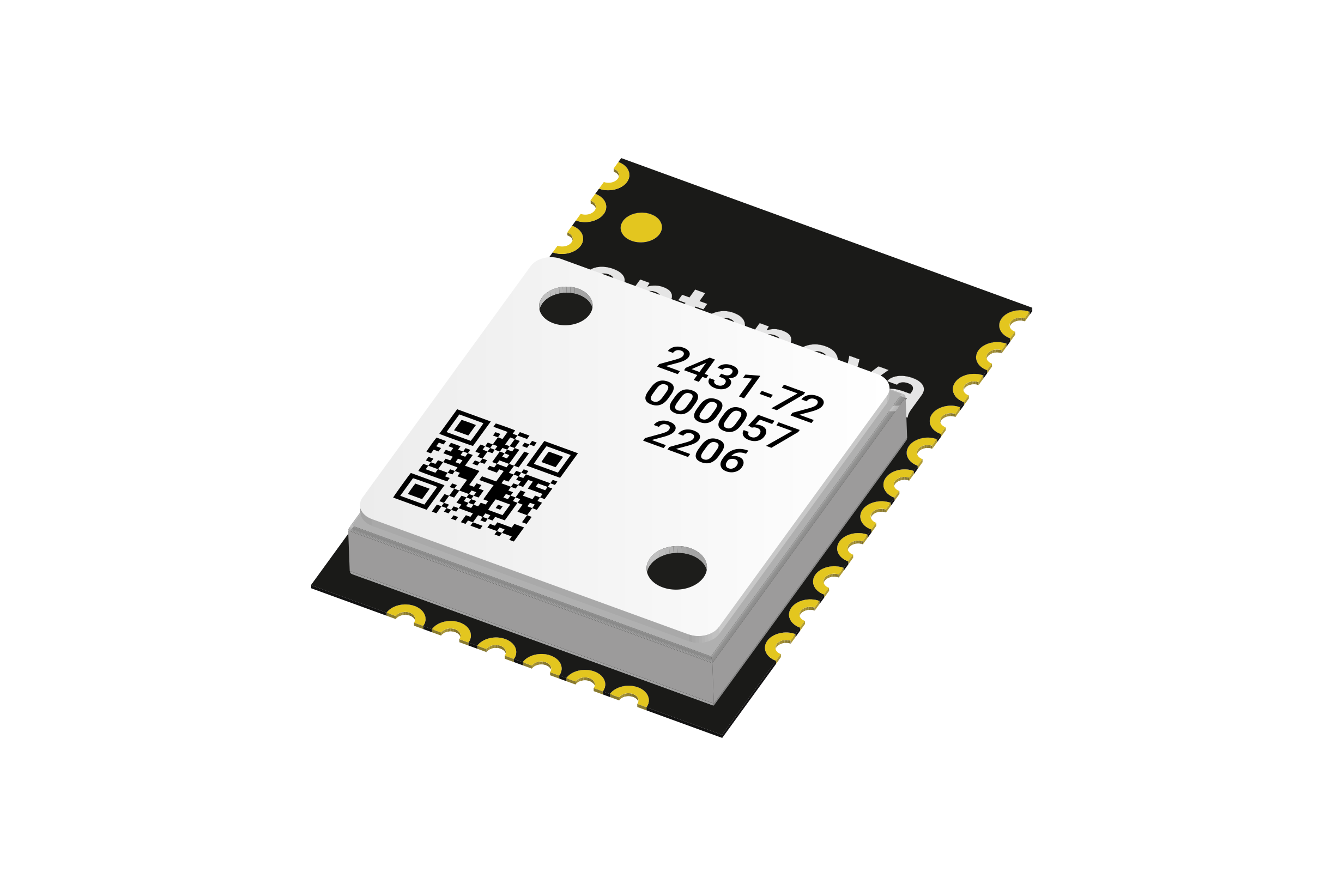

M20072 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Active Surface Mount SMD Receiver with built-in Antenna and LNA
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | M20072 |
| Antenna type | Active Receiver with built-in Antenna and LNA |
| Dimensions (mm) | 13.8 × 9.5 × 1.8 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Chip | MTK AG3335MN Flash Chip |
| Data Output Protocol | NMEA 0183 |
| Host Interface | UART |
| LNA | Built-in LNA |
| Saw Filter Type | Post-Filter |
| Efficiency (%) | ~57 (Built-in Antenna) |
| Voltage (V) | 1.8 typ |
| Default data rate on UART | 115200 bps default rate, modify by input command |
| Horizontal position accuracy | <2.5m CEP |
| Maximum position update rate | 10 Hz (Default 1Hz) |
| Acquisition (Cold) | -148dBm |
| Tracking | -165dBm |
| Hot start | <1s |
| Warm start | <25s (typical) |
| Cold start | <35s (typical) |
Antenna Description
M20072 is part of Antenova’s new GNSSNOVA family. GNSSNOVA modules are optimised for low current consumption and high precision, especially for compact devices. Using a MediaTek chip fabricated using a 12nm process, M20072 tracks 4 GNSS constellations concurrently. It sets a new benchmark for a GNSS module including omni-directional antenna, and includes an on-board LNA and SAW filter, offering exceptional navigation performance, even in builtup areas.
Key Features
Post-Filter GNSS
Active Receiver Antenna
built-in Antenna and LNA
up to 57% GNSS Efficiency
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
