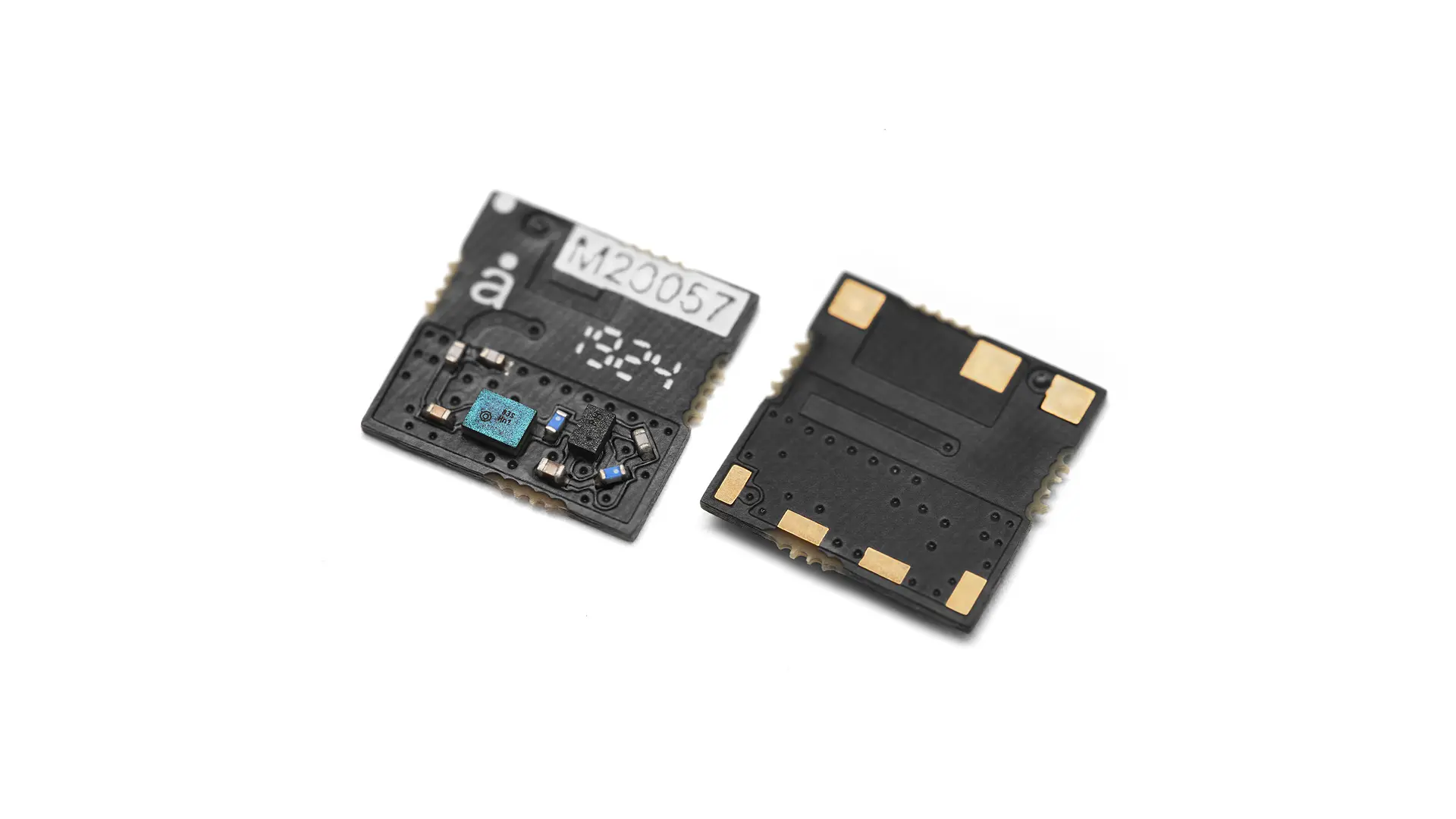

Active GNSS Module M20057-1
M20057-1 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Surface Mount SMD Active Module
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | M20057-1 |
| Antenna type | Active Module |
| Dimensions (mm) | 7.0 × 7.0 × 0.9 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-10.0 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~65 |
| Peak Gain (dBi) | ~18.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Voltage (V) | 1.5 - 3.3 |
| Saw Filter Type | Pre-Filter |
| Noise Figure (dB) | 0.9 |
Antenna Description
M20057-1 is an Active GNSS antenna that includes a SAW and LNA in a small module. With this antenna, there is no need to design a second LNA or add filtering to your circuit board. This Active GNSS antenna includes the full antenna and front end. We also offer the M20047-1 Active Antenna, where the SAW and LNA positions are reversed.
