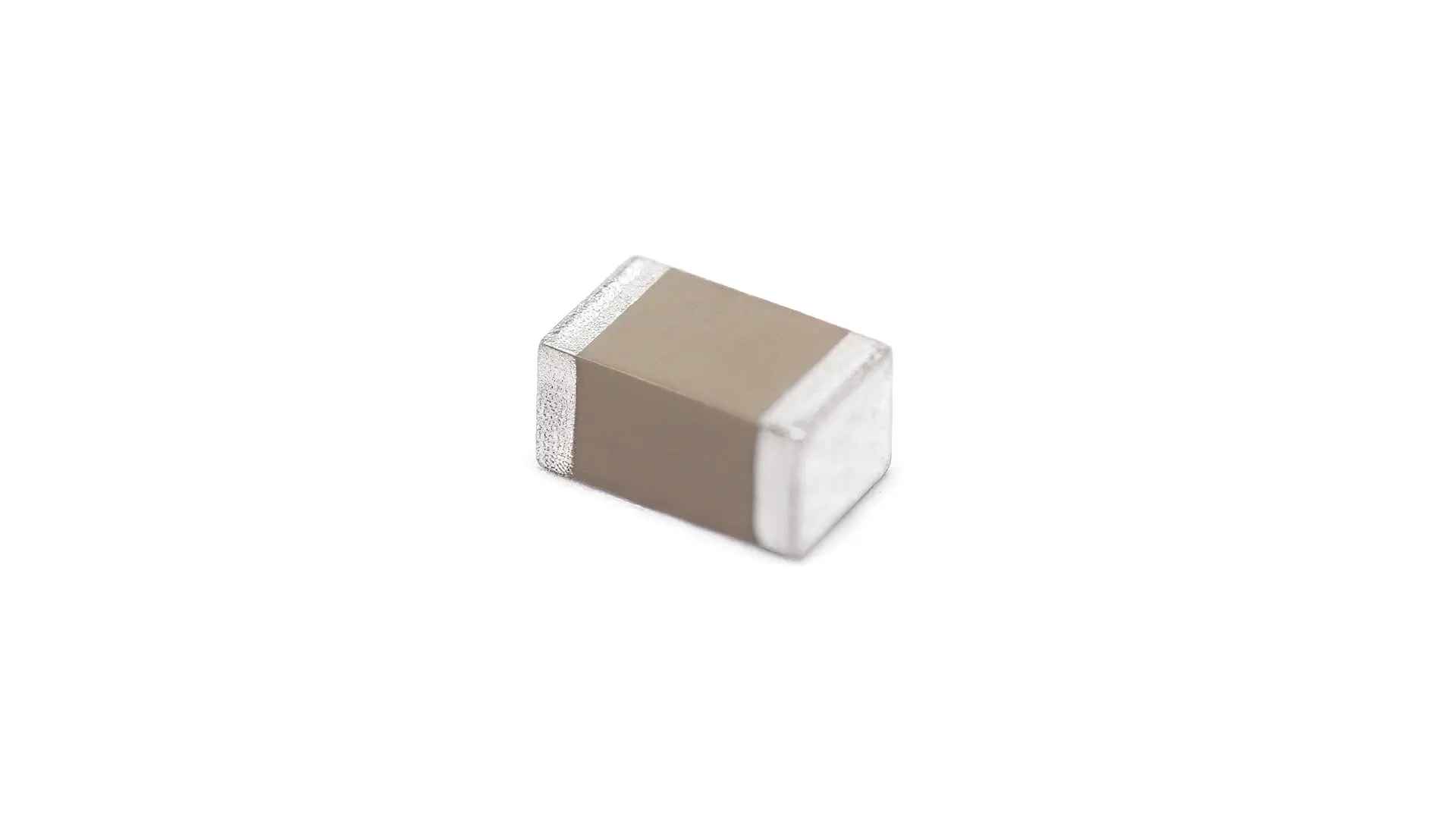

SRCG091 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive Ceramic Chip Surface Mount SMD Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | SRCG091 |
| Antenna type | Passive Ceramic Chip |
| Dimensions (mm) | 1.0 × 0.5 × 0.5 |
| Operating temperature | -40 °C to +125 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-11.5 |
| VSWR | ~1.8:1 |
| Efficiency (%) | ~53 |
| Average Gain (dB) | ~-2.6 |
| Peak Gain (dBi) | ~0.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
The Admotus ceramic antenna is suitable for all GNSS positioning applications in the L1 band (1559 – 1609 MHz). The antenna is ultra-low profile with an omni-directional pattern and performs well on small PCB sizes. It gives comparable performance to a small patch antenna on a small ground plane.
Key Features
Passive Ceramic Chip Antenna
Ground Plane Dependent
0.9 dBi GNSS Peak Gain
up to 53% GNSS Efficiency
