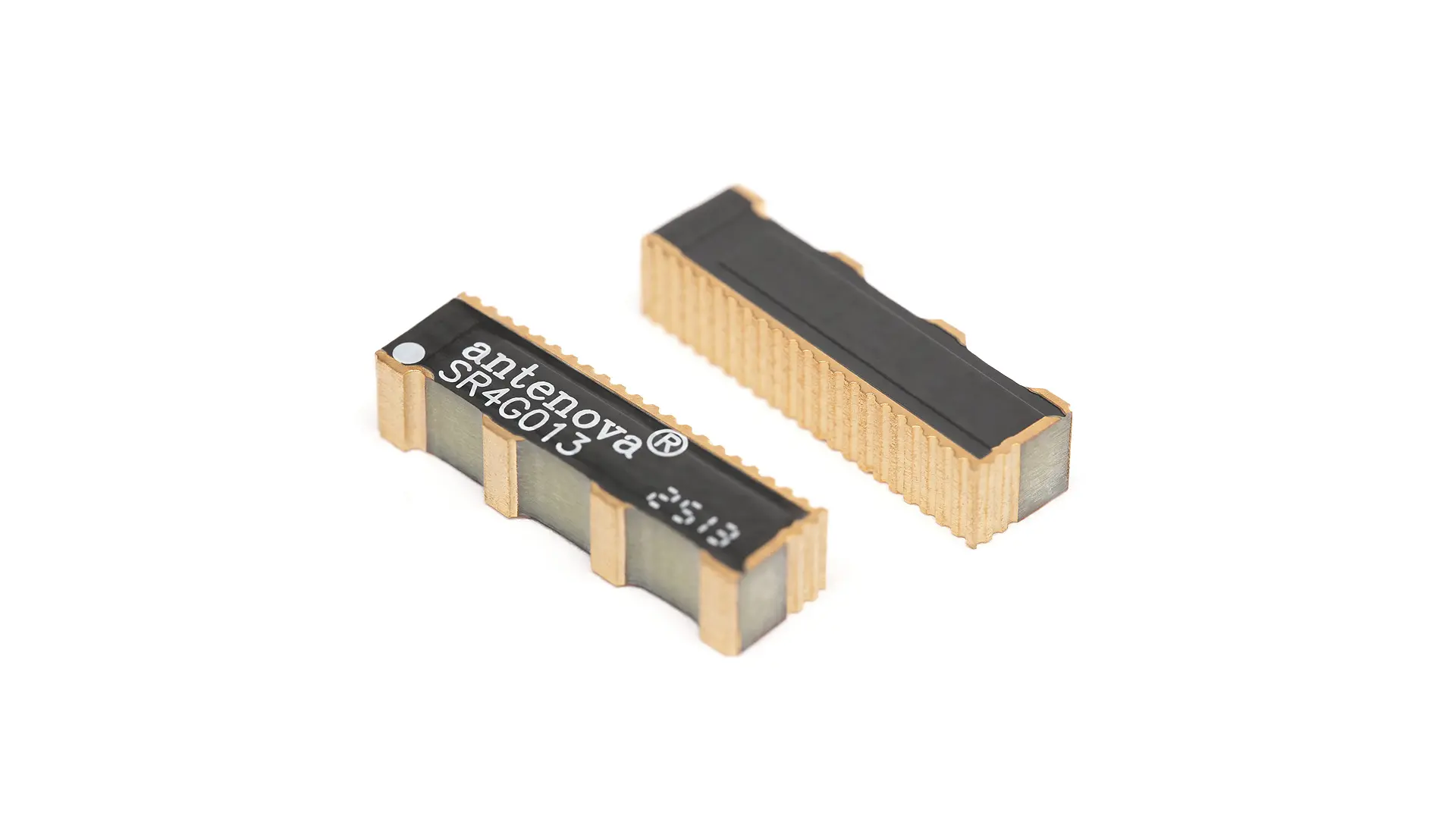

SR4G013 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive FR4 Chip Surface Mount SMD Antenna
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | SMD Surface Mount Rigid |
|---|---|
| Product P/N | SR4G013 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 15.6 × 3.3 × 4.4 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-8.0 |
| VSWR | ~2.2:1 |
| Efficiency (%) | ~60 |
| Average Gain (dB) | ~-2.3 |
| Peak Gain (dBi) | ~2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Beltii is a small antenna suitable for small designs and operates with all GNSS satellite constellations. It integrates into the corner of a PCB with no ground clearance required. Its high resistance to detuning makes it an ideal choice for small handheld, and even wearable, devices.
Key Features
Passive FR4 Chip Antenna
Ground Plane Dependent
2.3 dBi GNSS Peak Gain
up to 60% GNSS Efficiency
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
