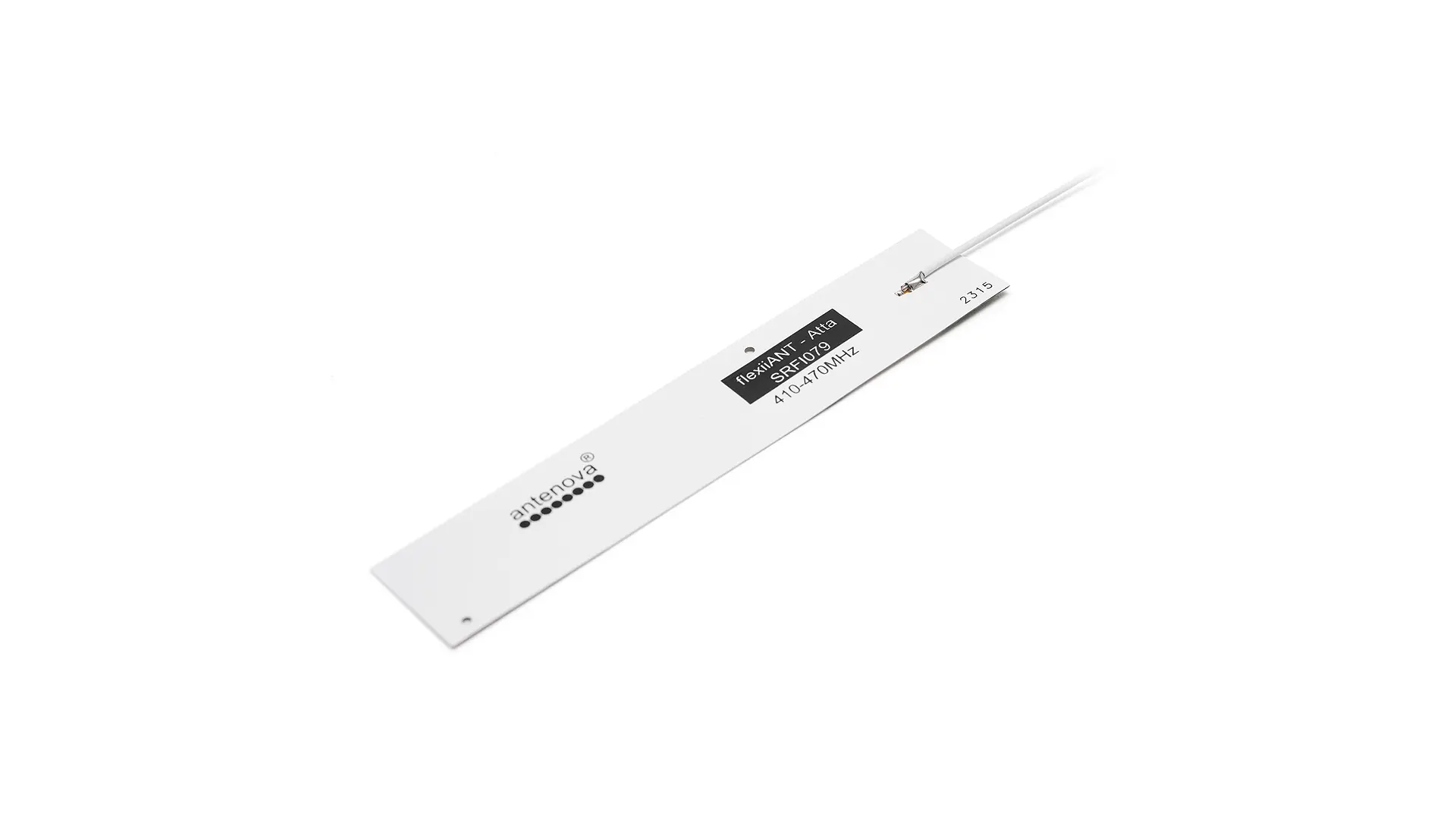

SRFI079 - Internal LTE 410 / LTE 450 Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
LTE 410 / LTE 450
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFI079 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 101.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
LTE 410 / LTE 450
| Frequency (MHz) | 410-432, 432-434, 434-470 |
|---|---|
| Return Loss (dB) | ~-9.0, ~-9.0, ~-6.0 |
| VSWR | ~2.2:1, ~2.2:1, ~3.0:1 |
| Efficiency (%) | ~60,~55,~45 |
| Average Gain (dB) | ~-1.7,~-2.3,~-3.2 |
| Peak Gain (dBi) | ~2.8,~1.7,~1.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Atta is a flexible printed circuit (FPC) antenna with cable that enables direct connection to the host PCB with an I-PEX coax connector. The host PCB ground is not used, therefore the antenna is easy to integrate.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
2.8 dBi LTE 410 / LTE 450 Peak Gain
up to 60% LTE 410 / LTE 450 Efficiency
Applications
Smart Home
Wearables
Mobile Networks
Entertainment and Multimedia
IoT - Internet of Things
Logistics and Shipping
Smart Cities
Industrial IoT & Monitoring
Smart Farming
Fleet Management
Medical and Healthcare
Autonomous Driving
Drone Operation
Security and Surveillance
Gaming and Virtual Reality
Cellular Networks
Mission Critical Communications
Transportation
GIS - Geographic Information System
Cartographic
Hazard Mitigation
Machine Control
Automation
Agriculture
Construction
Mining Industry
Unmanned Vehicles
Surveying
Defense
Aerial Photogrammetry
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Road Applications
Autonomous Applications
Mobile Applications
Automotive
Telecommunication
Data Processing
Broadband Communications
Remote Monitoring and Control
Wireless Security System
Energy Monitoring
Smart Metering
Smart Lighting
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Government & Public Safety
Building Control
M2M - Machine to Machine
Telemetry / Telematics
Manufacturing
Video Streaming
Smart Grid
Private Cellular Networks
Electricity Metering & Management
Resources Management
Digital Signage
Routers
Gateways & Data Terminals
Utilities
First Responder Fleets
C-V2X - Cellular Vehicle to Everything
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
