Mitis

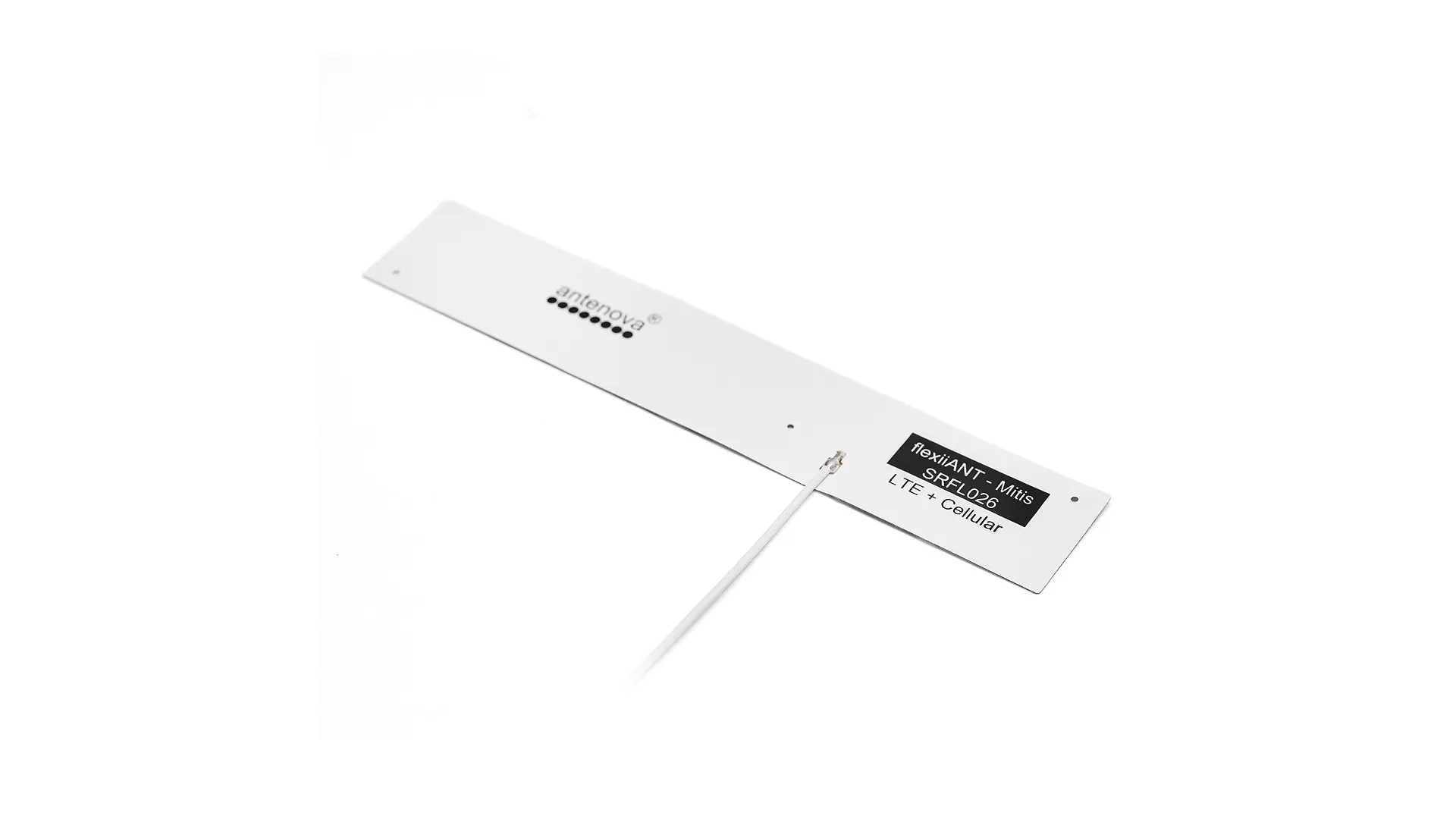

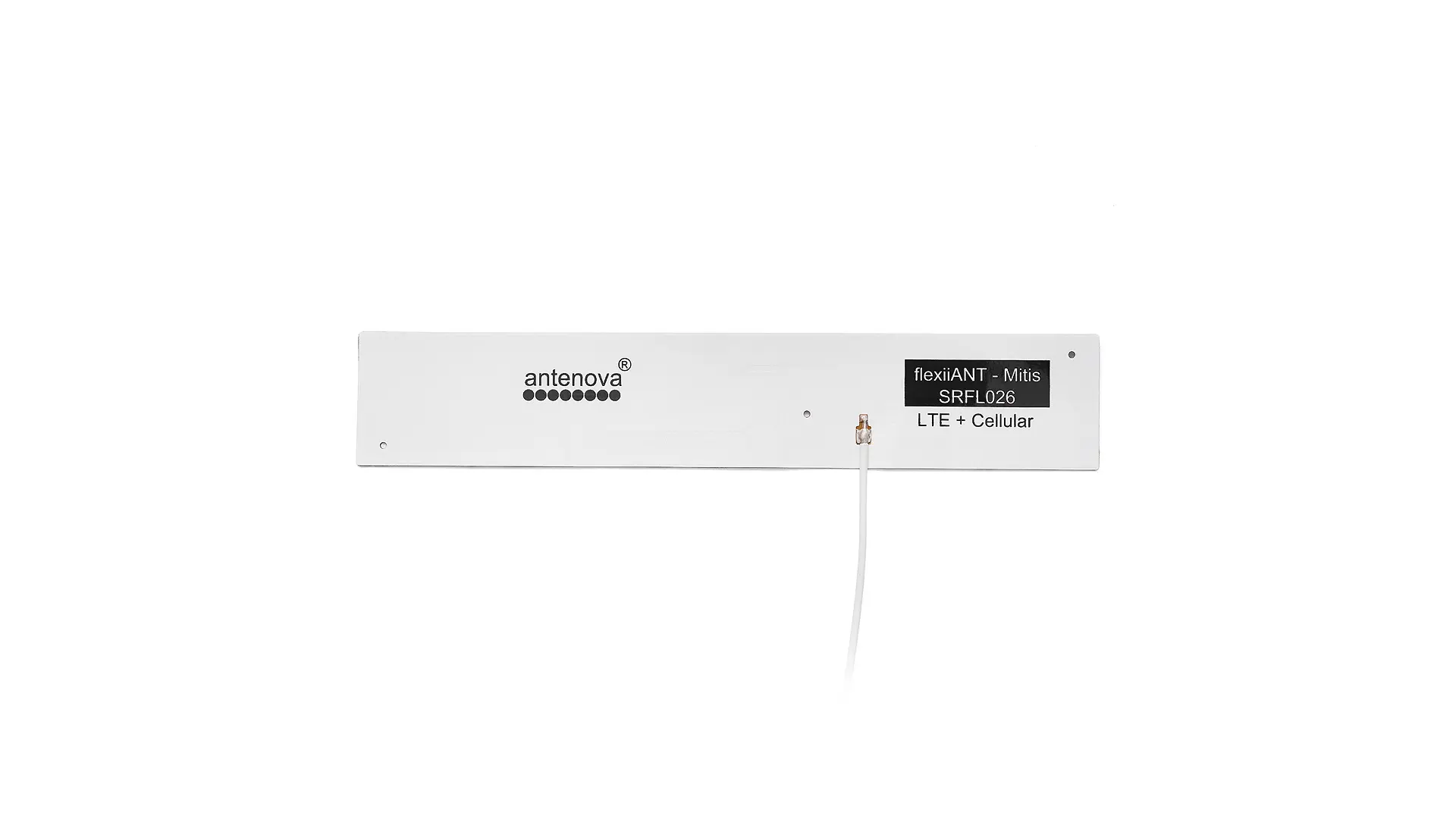

SRFL026 - Internal 4G LTE / Cellular / LPWA / NB-IoT Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFL026 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 110.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-798, 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.5, ~-10.0, ~-7.0, ~-7.0, ~-5.5 |
| VSWR | ~3.20:1, ~1.95:1, ~1.90:1, ~2.10:1, ~3.10:1 |
| Efficiency (%) | ~55,~65,~65,~55,~70 |
| Average Gain (dB) | ~-1.5,~-1.6,~-1.7,~-1.7,~-1.4 |
| Peak Gain (dBi) | ~2.5,~2.3,~3.5,~4.0,~4.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A flexible antenna for all 4G/ LTE bands: LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz) and LTE B40 (2300 – 2400MHz). Ideal for smart meters, network devices, Pico-basestations, remote monitoring, POS terminals, M2M, and IoT applications.
Available in 100mm and 200mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
Wide band 4G LTE Antenna
698-2690 MHz Frequency Range
up to 70% 4G LTE Efficiency
4.5 dBi 4G LTE Peak Gain
