Moseni

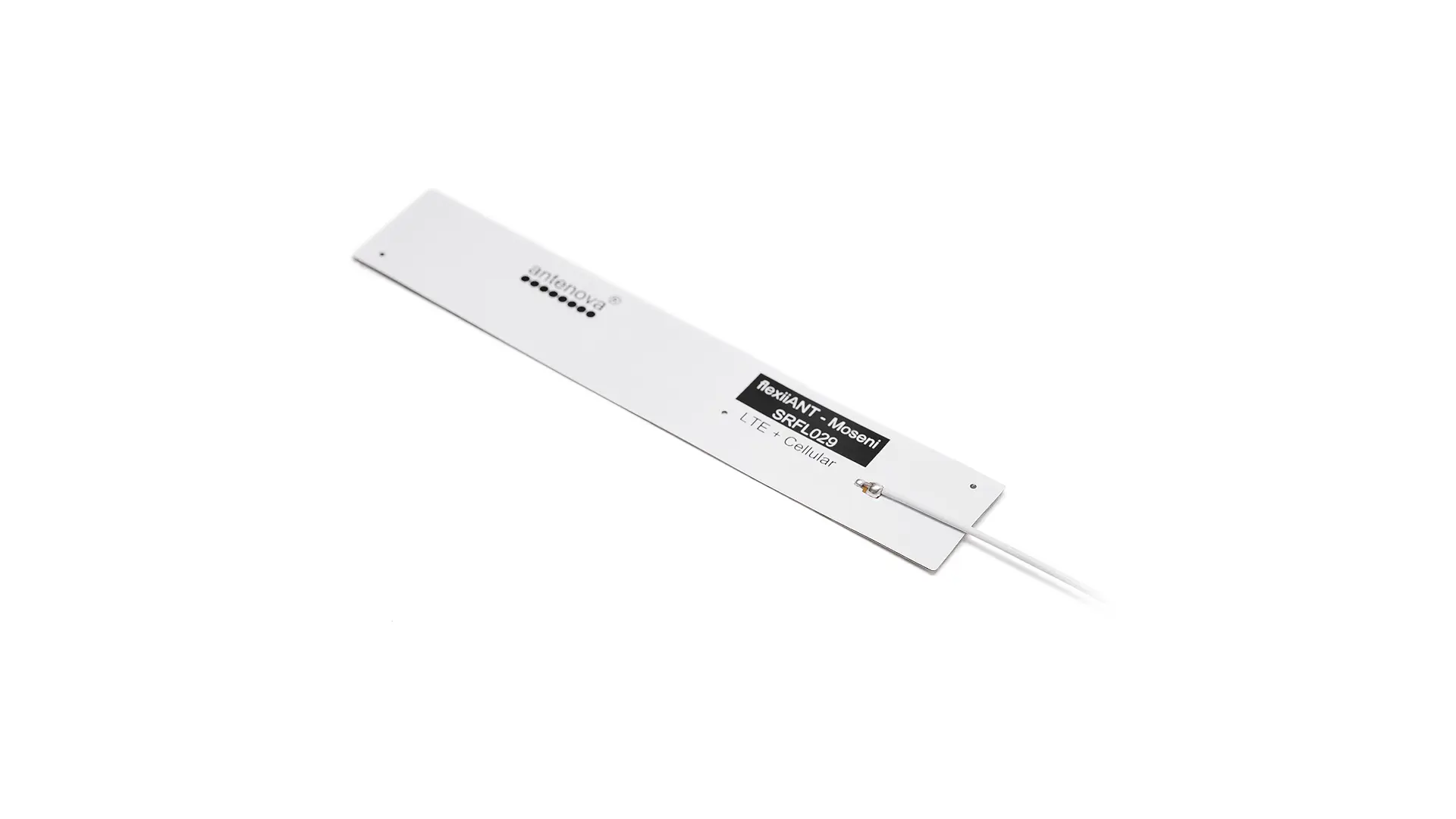

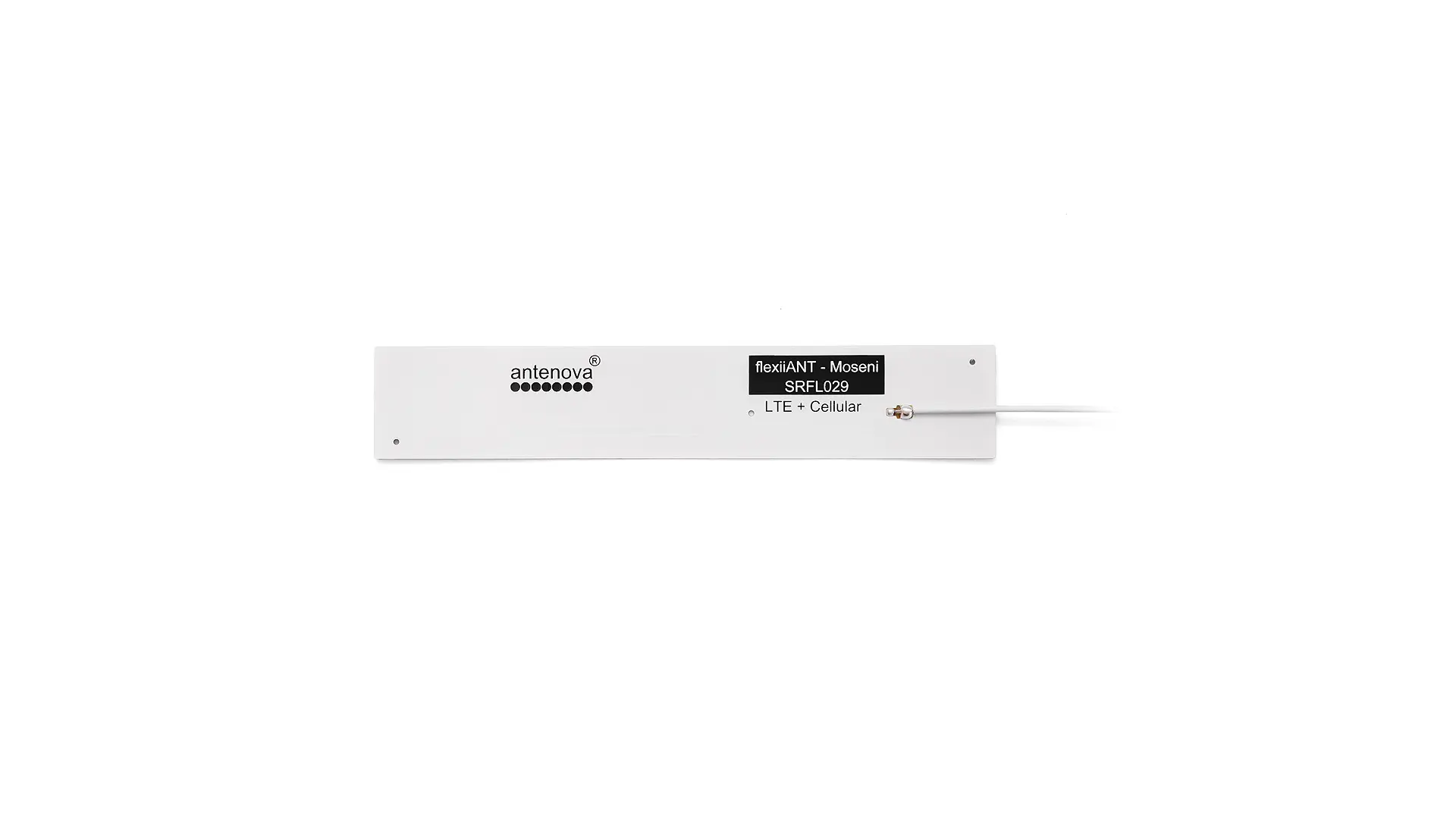

SRFL029 - Internal 4G LTE / Cellular / LPWA / NB-IoT Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFL029 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 110.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-798, 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.5, ~-8.0, ~-5.5, ~-12.0, ~-16.0 |
| VSWR | ~3.5:1, ~2.4:1, ~3.3:1, ~1.4:1, ~1.7:1 |
| Efficiency (%) | ~60,~60,~65,~80,~80 |
| Average Gain (dB) | ~-1.6,~-1.7,~-1.4,~-0.7,~-0.5 |
| Peak Gain (dBi) | ~3.5,~3.5,~3.8,~4.5,~4.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A flexible antenna for the 4G LTE bands: LTE 700, GSM 850, GSM900 DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690MHz) LTE B40 (2300-2400MHz). Suitable for smart meters, network devices, Pico-basestations, telematics, remote monitoring, POS terminals, M2M, and IoT applications.
Available in 100mm and 150mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
Wide band 4G LTE Antenna
698-2690 MHz Frequency Range
4.6 dBi 4G LTE Peak Gain
up to 80% 4G LTE Efficiency
