Inca

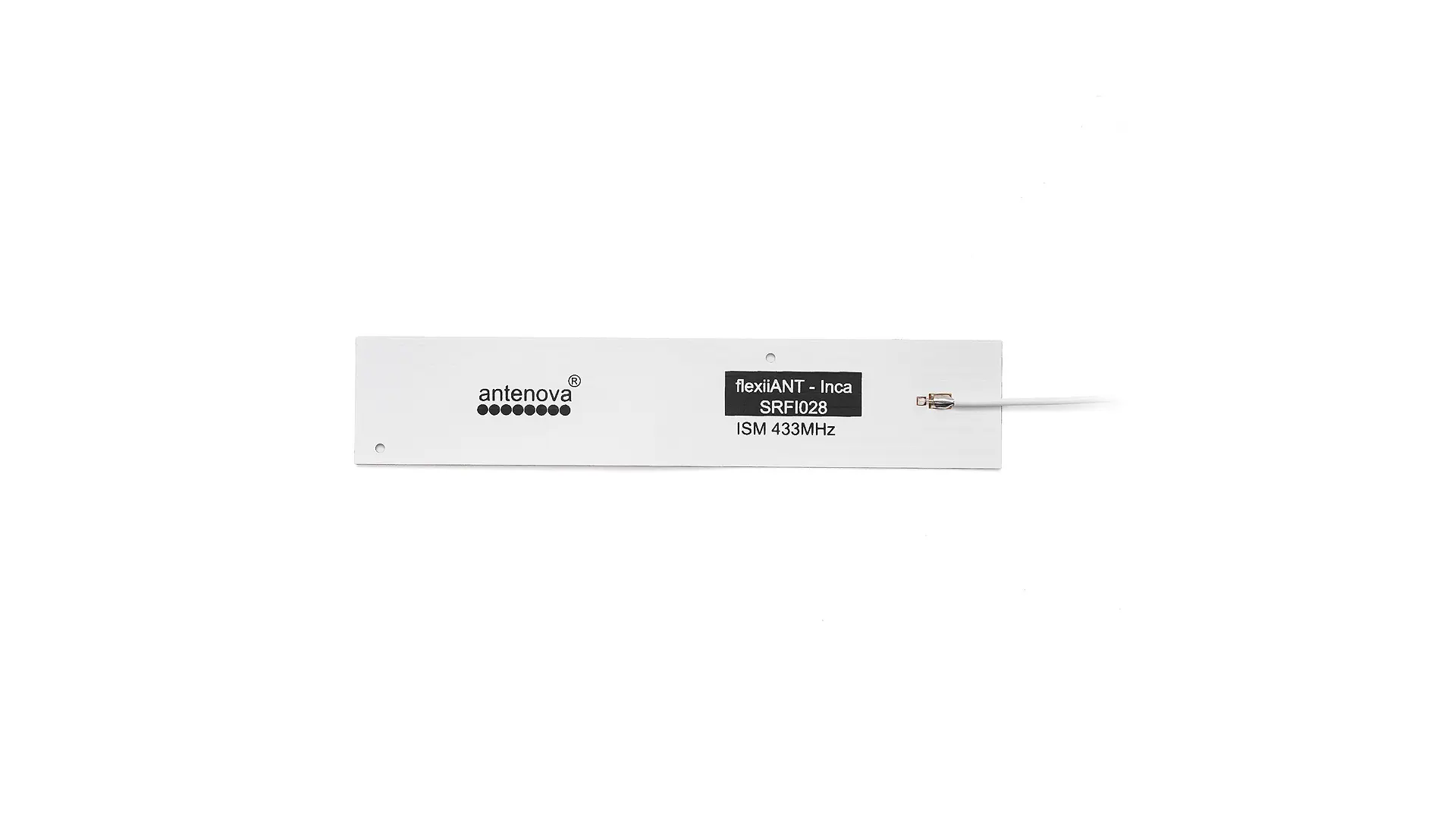

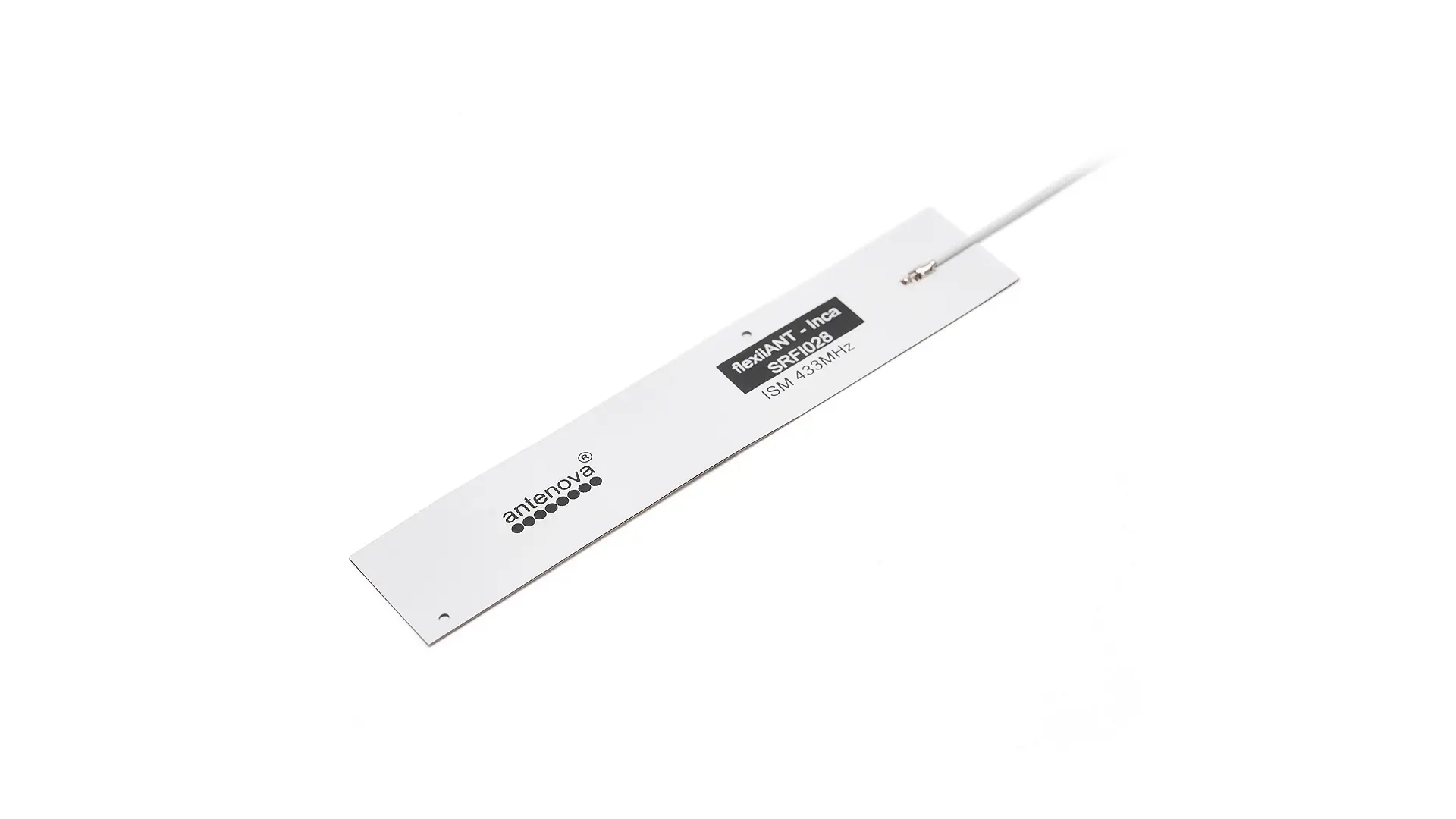

SRFI028 - Internal 433 MHz ISM / Sigfox / LoRa / LPWA Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
433 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFI028 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 101.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
433 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 432-434 |
|---|---|
| Return Loss (dB) | ~-11.0 |
| VSWR | ~1.6:1 |
| Efficiency (%) | ~45 |
| Average Gain (dB) | ~-2.7 |
| Peak Gain (dBi) | ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A flexible antenna for the 432 – 434 MHz ISM band. It can be folded or placed flat. Good for remote monitoring, smart meters, home automation and medical devices, and other M2M/IoT applications. Easy to integrate.
Available in 100mm and 200mm cable lengths. Other cable lengths are available, but minimum order quantities apply. Supplied in packs of 100.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
2.8 dBi 433 MHz ISM Peak Gain
up to 45% 433 MHz ISM Efficiency
Applications
Smart Home
IoT - Internet of Things
Smart Cities
Industrial IoT & Monitoring
Medical and Healthcare
Retail Services
Transportation
Hazard Mitigation
Machine Control
Automation
Mining Industry
Logistics
Asset Tracking and Security
Civil Applications
Road Applications
Autonomous Applications
Home Applications
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Sensor Reporting
Car Security System
Remote Keyless Entry
RFID devices
Energy Monitoring
Smart Metering
Smart Lighting
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Street Lighting
Product Tracking
Toll Road Payments
Telemetry / Telematics
Manufacturing
Smart Grid
Electricity Metering & Management
Resources Management
Low Power Wide-Range Networks
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
Wearables
