Montana

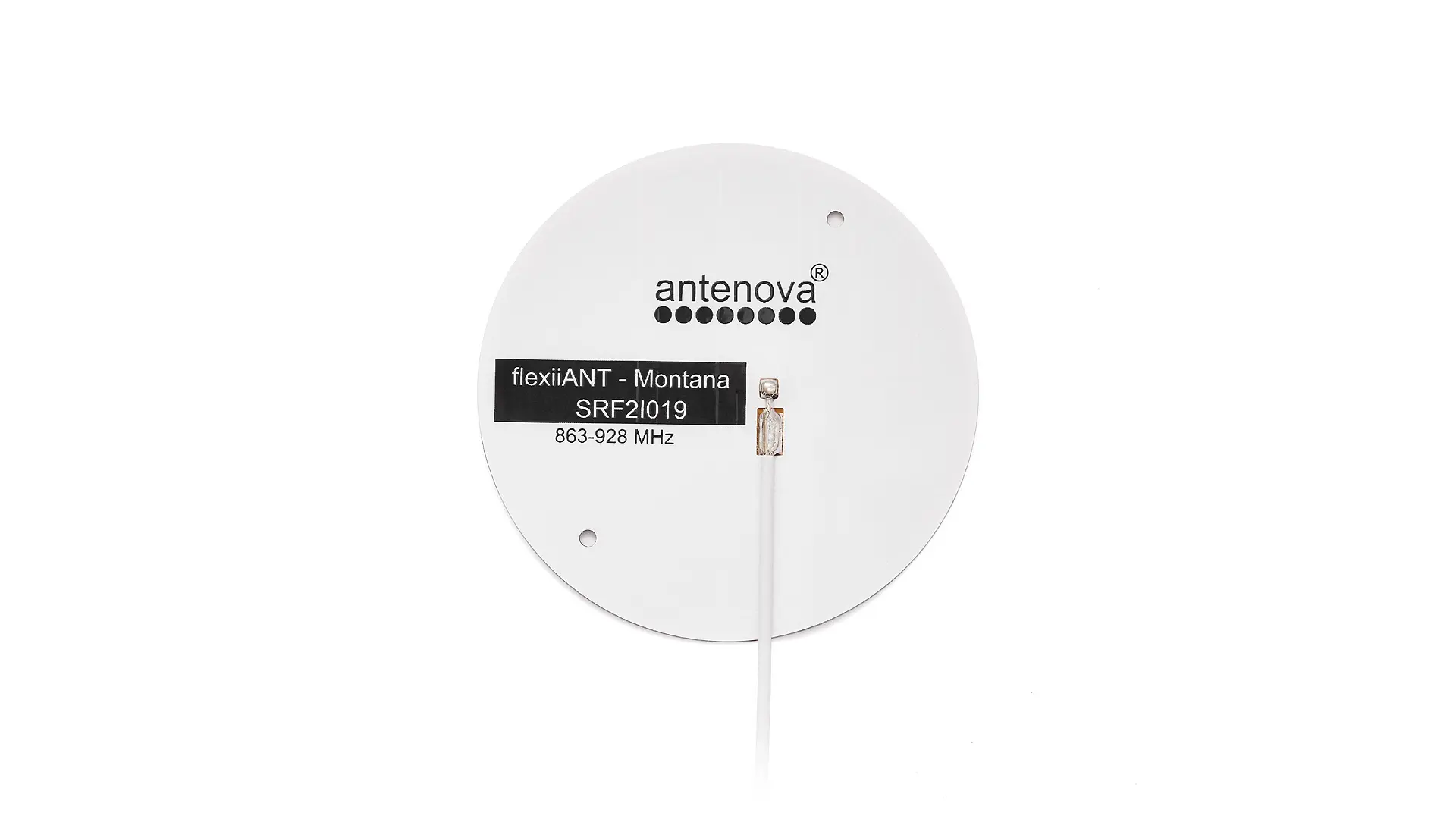

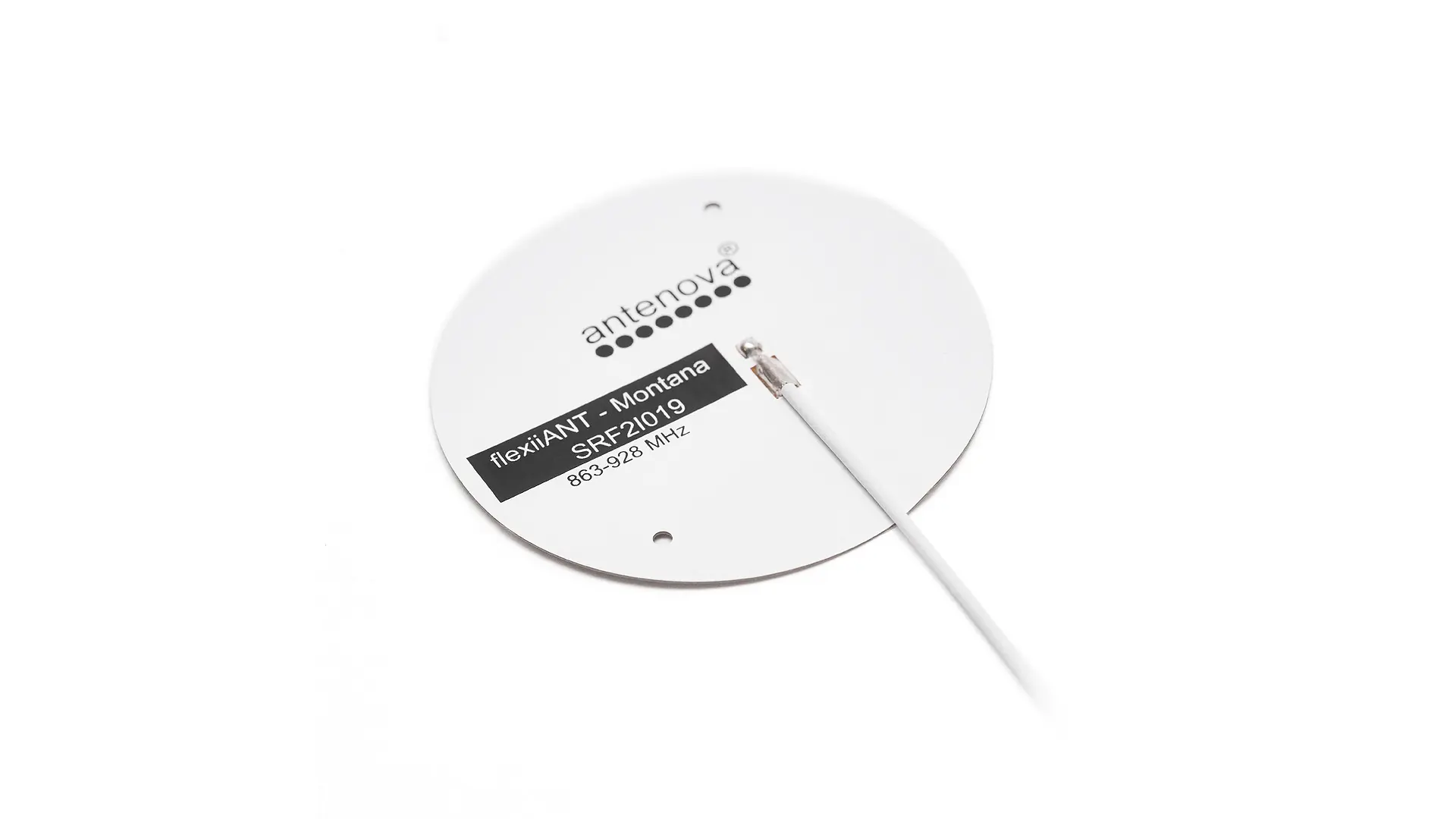

SRF2I019 - Internal 868 & 915 MHz ISM / Sigfox / LoRa / LPWA Passive Self-Adhesive Flexible PCB Antenna
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRF2I019-100 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | ø 45 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | Default Cable Length is 100mm |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 863-928 |
|---|---|
| Return Loss (dB) | ~-11.0 |
| VSWR | ~1.7:1 |
| Efficiency (%) | ~50 |
| Average Gain (dB) | ~-2.4 |
| Peak Gain (dBi) | ~1.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A self-adhesive FPC antenna for the ISM bands. Connected via an MHF IPEX connector. Available in a 100mm cable length. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
1.9 dBi 868 / 915 MHz ISM Peak Gain
up to 50% 868 / 915 MHz ISM Efficiency
Customizable Cable and Connector
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
