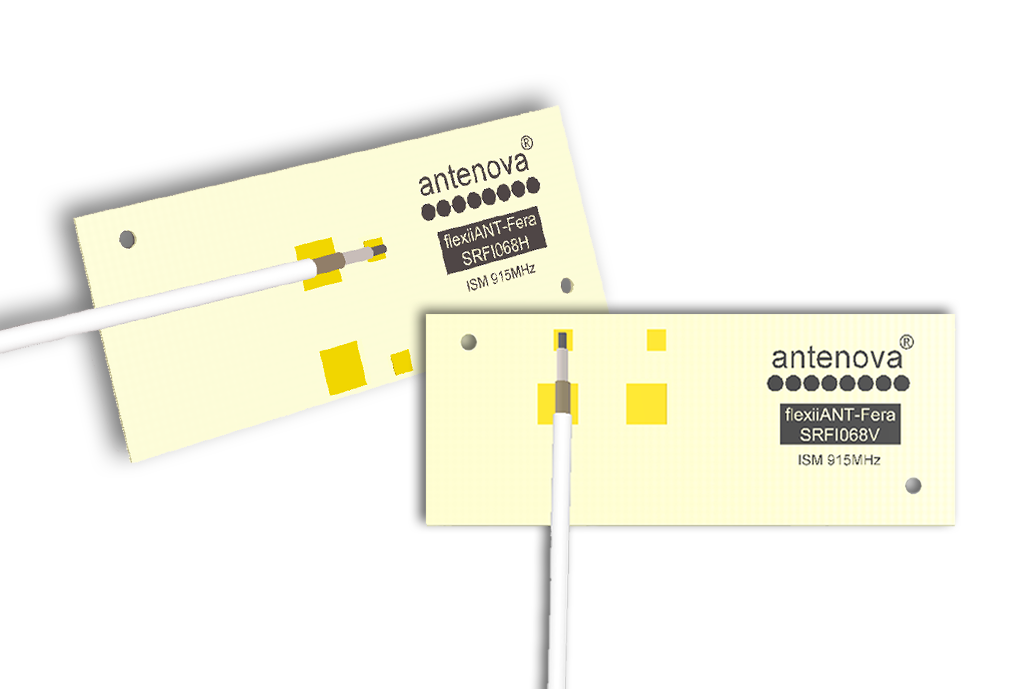

SRFI068 - Internal 915 MHz ISM / Sigfox / LoRa / LPWA Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFI068 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 33 × 13 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 902-928 |
|---|---|
| Return Loss (dB) | ~-15.0 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~36 |
| Average Gain (dB) | ~-4.4 |
| Peak Gain (dBi) | ~0.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Fera is intended for ISM and LoRa applications in the 915MHz band (North America). It is a compact flexible antenna with a cable and UFL connector, giving easy integration, and does not use the host PCB ground plane. Its small size enables a new generation of miniature monitoring devices.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
0.7 dBi 915 MHz ISM Peak Gain
up to 36% 915 MHz ISM Efficiency
Customizable Cable and Connector
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
