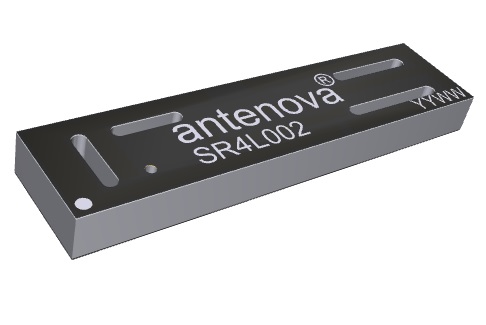

SR4L002 - Embedded 4G LTE / Cellular / LPWA / NB-IoT Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4L002 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 35.0 × 8.5 × 3.3 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 698-824, 824-960, 1710-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-6.0, ~-6.0, ~-6.0, ~-10.0, ~-5.0 |
| VSWR | ~3.2:1, ~2.8:1, ~3.1:1, ~1.7:1, ~3.4:1 |
| Efficiency (%) | ~45,~60,~65,~50,~50 |
| Average Gain (dB) | ~-1.5,~-1.5,~-1.5,~-2.0,~-2.0 |
| Peak Gain (dBi) | ~0.5,~1.0,~2.5,~1.6,~2.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A low profile antenna for 4G/LTE applications including MIMO, and covers LTE bands in the USA and other world regions. Novel design that is less susceptible to detune.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
Wide band 4G LTE Antenna
up to 65% 4G LTE Efficiency
698-2690 MHz Frequency Range
2.5 dBi 4G LTE Peak Gain
