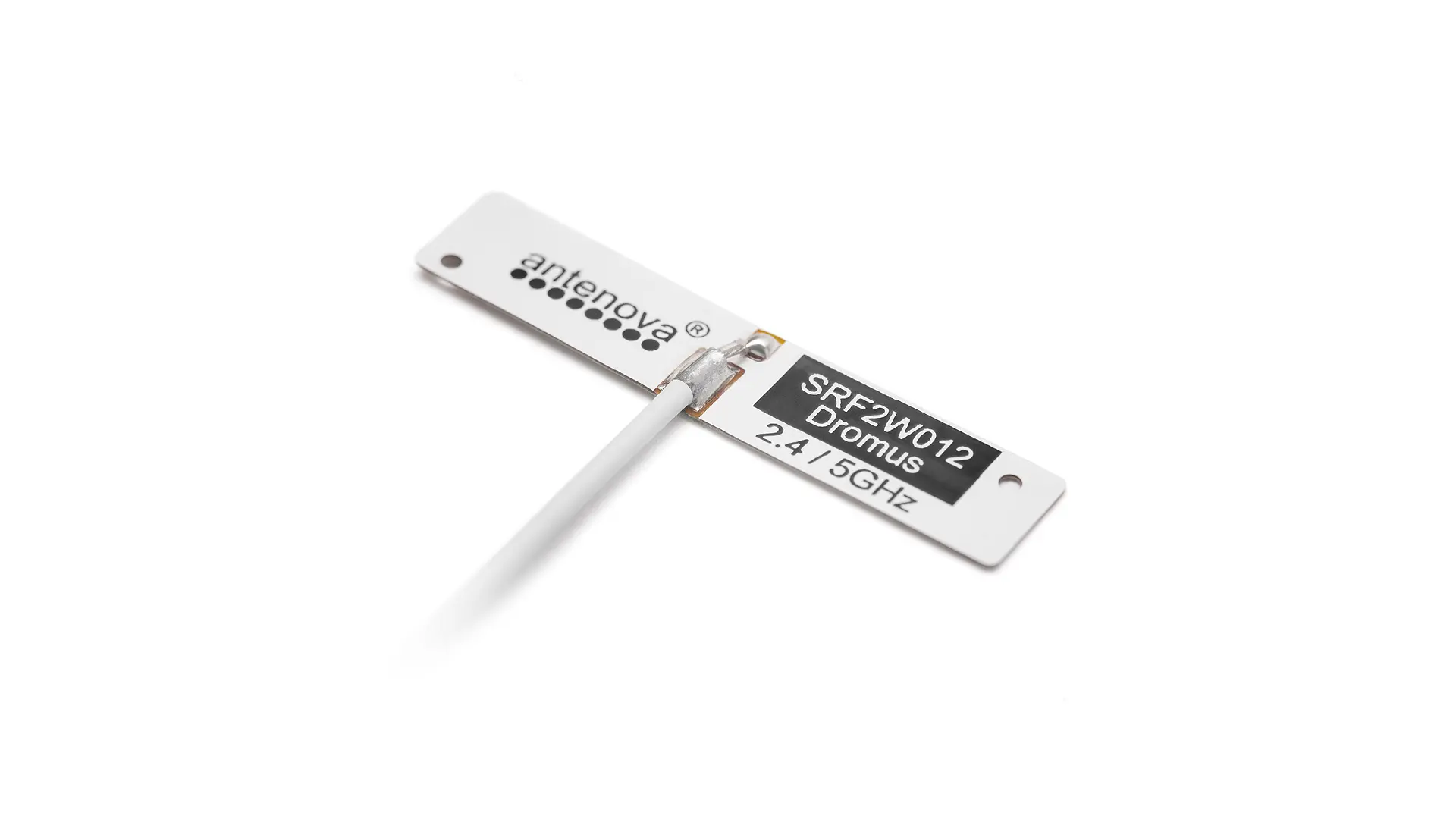

Dromus
SRF2W012 - Internal 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRF2W012 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 30.0 × 6.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-13.0, ~-13.0, ~-10.0 |
| VSWR | ~1.6:1, ~1.6:1, ~1.9:1 |
| Efficiency (%) | ~65,~65,~70 |
| Average Gain (dB) | ~-1.8,~-1.6,~-1.6 |
| Peak Gain (dBi) | ~2.9,~4.5,~4.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A self-adhesive FPC antenna for use with all Wi-Fi applications. The antenna maintains high performance within the device and is available in three standard cable lengths with an MHF connector.
Available with a 100mm cable, other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
up to 70% WIFI Efficiency
WIFI 6E / WIFI 7 Antenna
4.7 dBi WIFI Peak Gain
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
