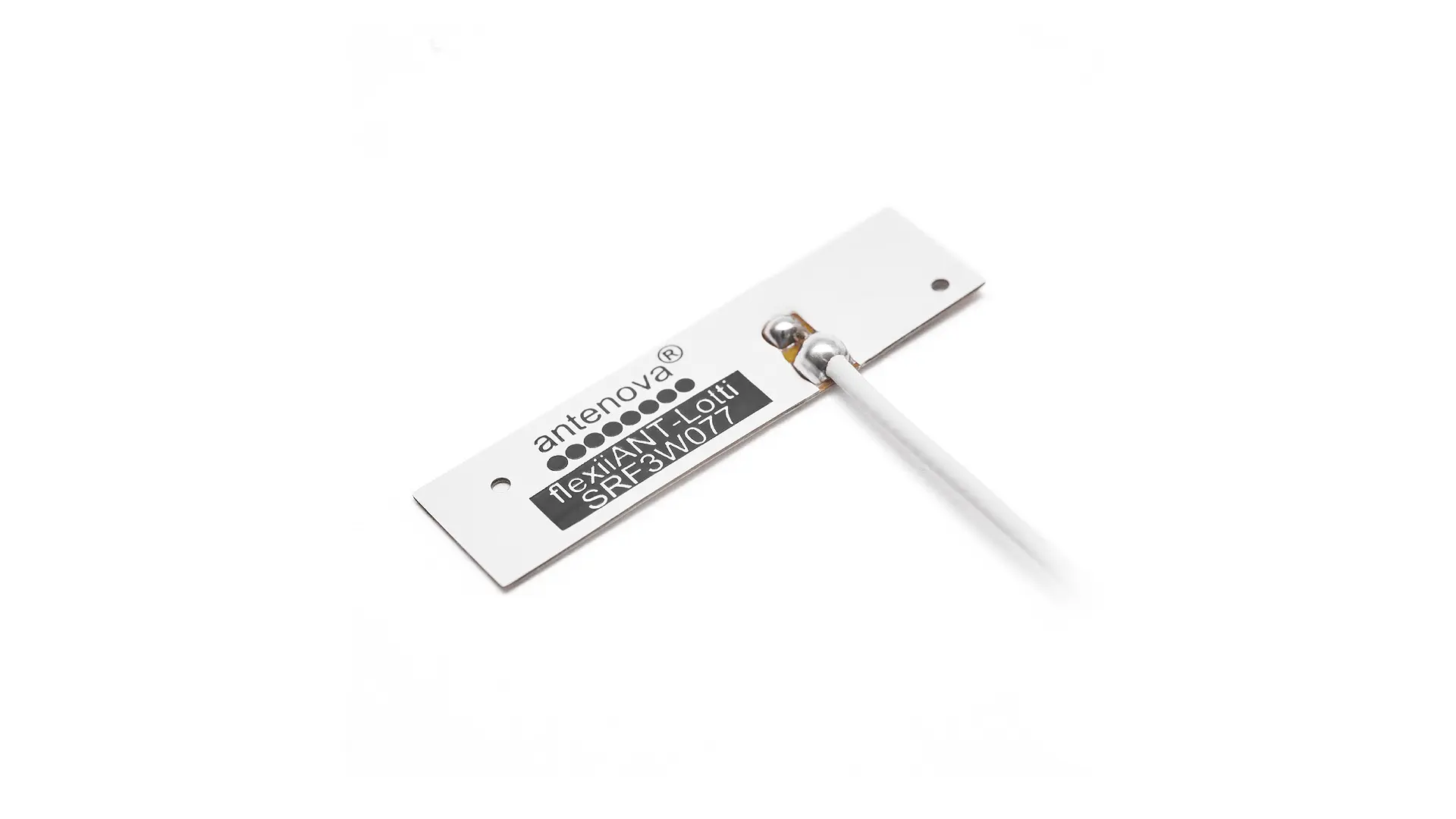

Lotti

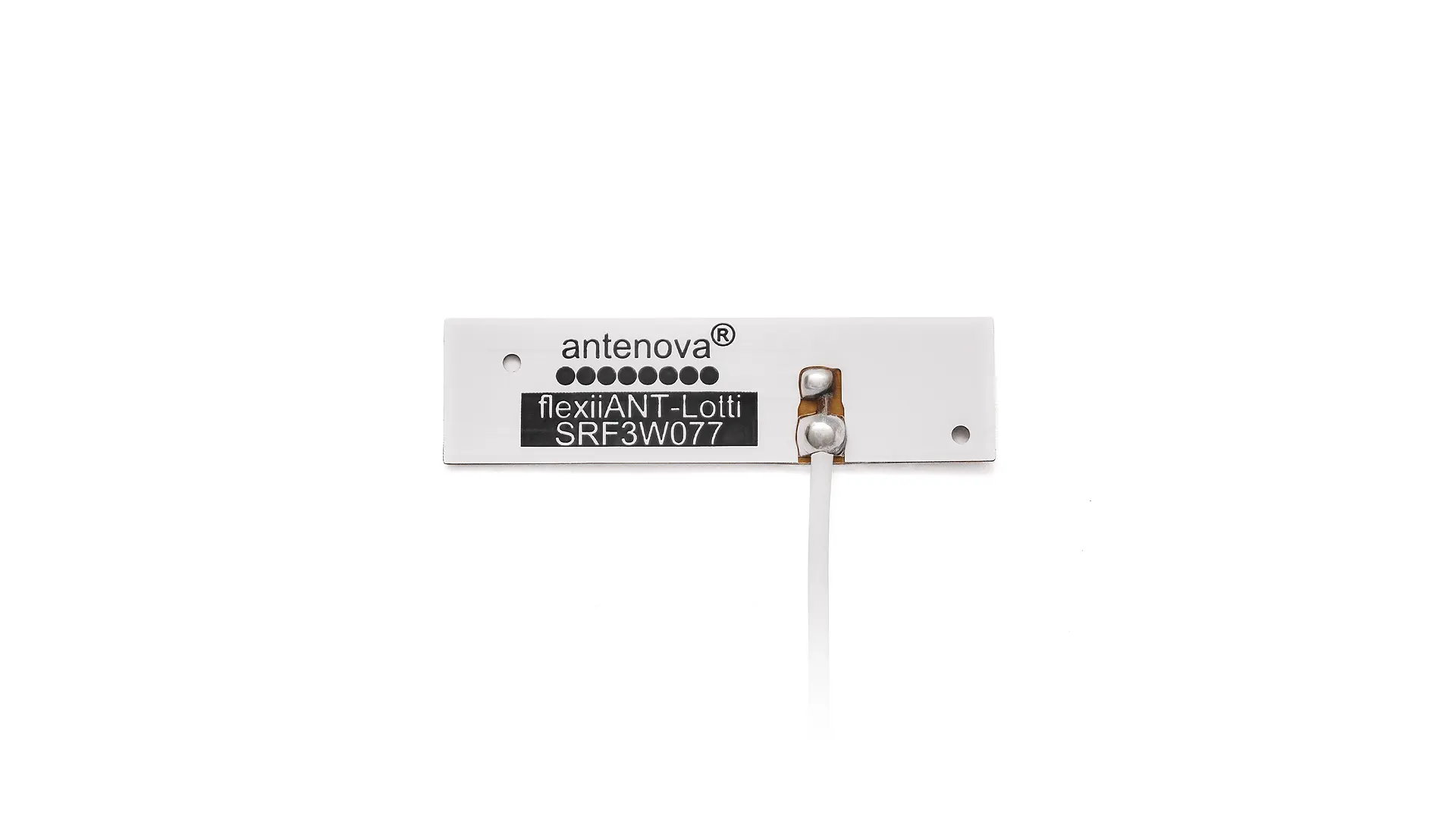

SRF3W077 - Internal 2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRF3W077 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 30.0 × 8.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Frequency (MHz) | 2400-2500, 4900-5900, 5925-7125 |
|---|---|
| Return Loss (dB) | ~-16.0, ~-12.0, ~-13.0 |
| VSWR | ~1.3:1, ~1.6:1, ~1.5:1 |
| Efficiency (%) | ~70,~65,~70 |
| Average Gain (dB) | ~-1.5,~-1.9,~-1.7 |
| Peak Gain (dBi) | ~2.8,~3.2,~4.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Lotti is a flexible PCB antenna for Wi-Fi6E applications. The antenna comes with cable & connector which enables a simple ‘plug and play’ connection to the host PCB. The antenna covers the Wi-Fi6E & WiFi7 bands: 2.4-2.5 GHz, 4.9-5.9GHz and 5.925-7.125GHz.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
up to 70% WIFI Efficiency
WIFI 6E / WIFI 7 Antenna
4.4 dBi WIFI Peak Gain
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
