Invicta

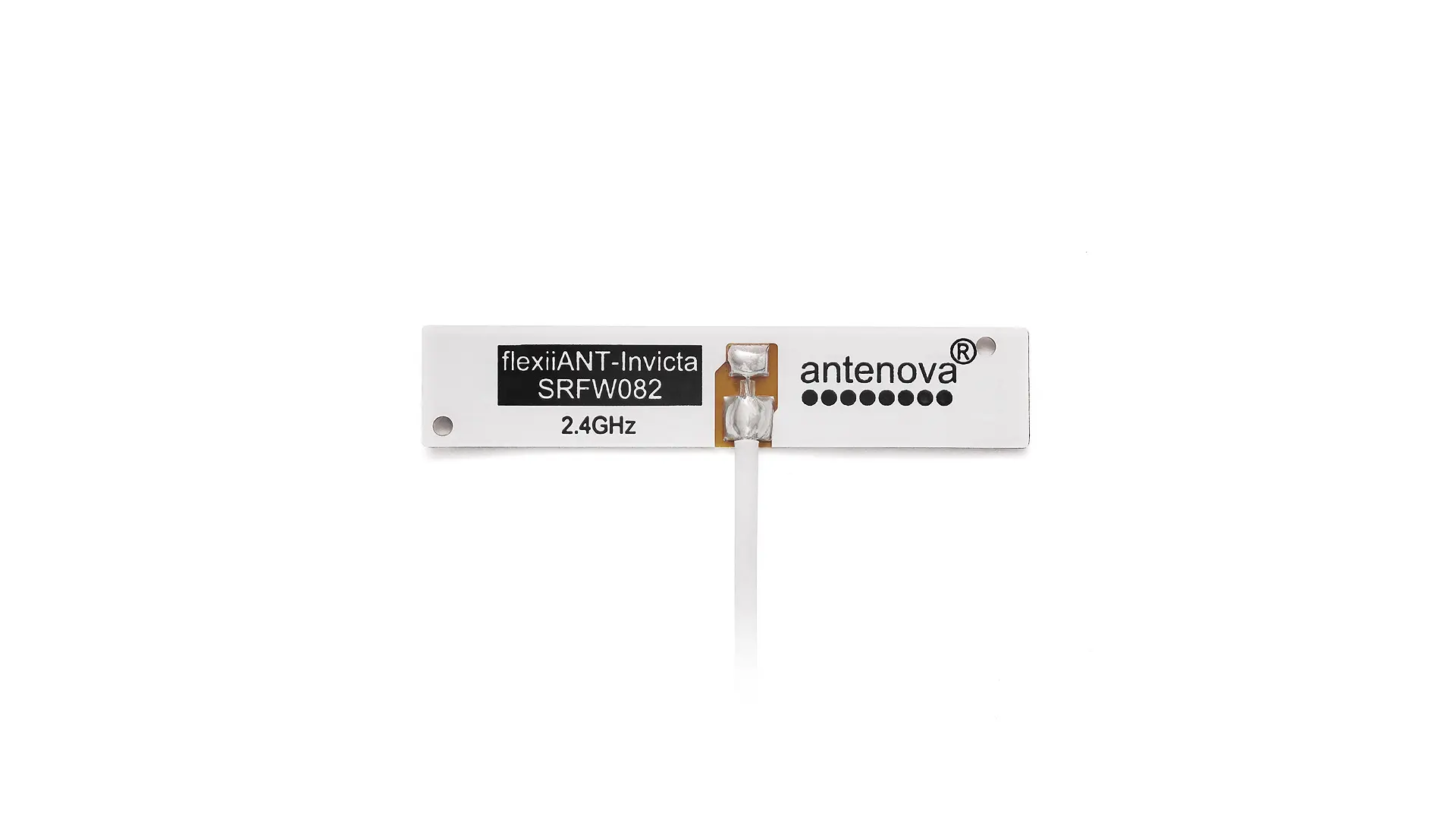

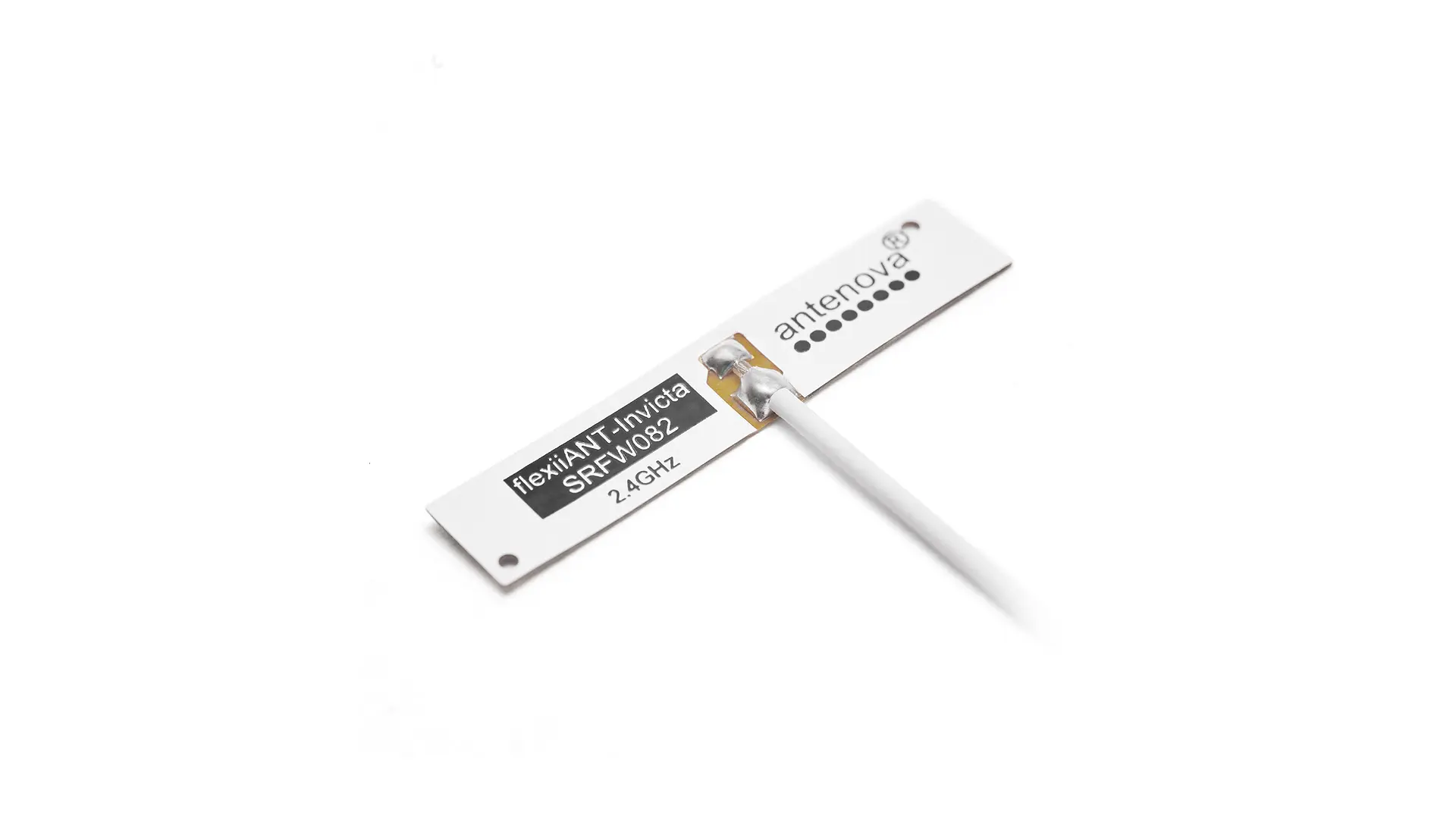

SRFW082 - Internal 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFW082 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 30 × 6 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Frequency (MHz) | 2400-2500 |
|---|---|
| Return Loss (dB) | ~-16.0 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~70 |
| Average Gain (dB) | ~-1.5 |
| Peak Gain (dBi) | ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Invicta is intended for long-range Wi-Fi, Bluetooth® and Zigbee applications. It is a flexible PCB antenna with cable that enables a ‘plug and play’ connection to the host PCB. The antenna achieves high efficiency within a small overall area. It covers the Wi-Fi/Bluetooth®/Zigbee band: 2.4-2.5 GHz.
Key Features
2.8 dBi WIFI Peak Gain
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
up to 70% WIFI Efficiency
Applications
Smart Home
Wearables
Entertainment and Multimedia
Smart Cities
Medical and Healthcare
Drone Operation
Gaming and Virtual Reality
Retail Services
Transportation
GIS - Geographic Information System
Hazard Mitigation
Machine Control
Automation
Defense
Logistics
Asset Tracking and Security
Location Based Services
Civil Applications
Autonomous Applications
Mobile Applications
Home Applications
Public Wi-Fi
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Manufacturing
Video Streaming
Short-Range Personal Area Networks
Digital Signage
Routers
Gateways & Data Terminals
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
RFID devices
