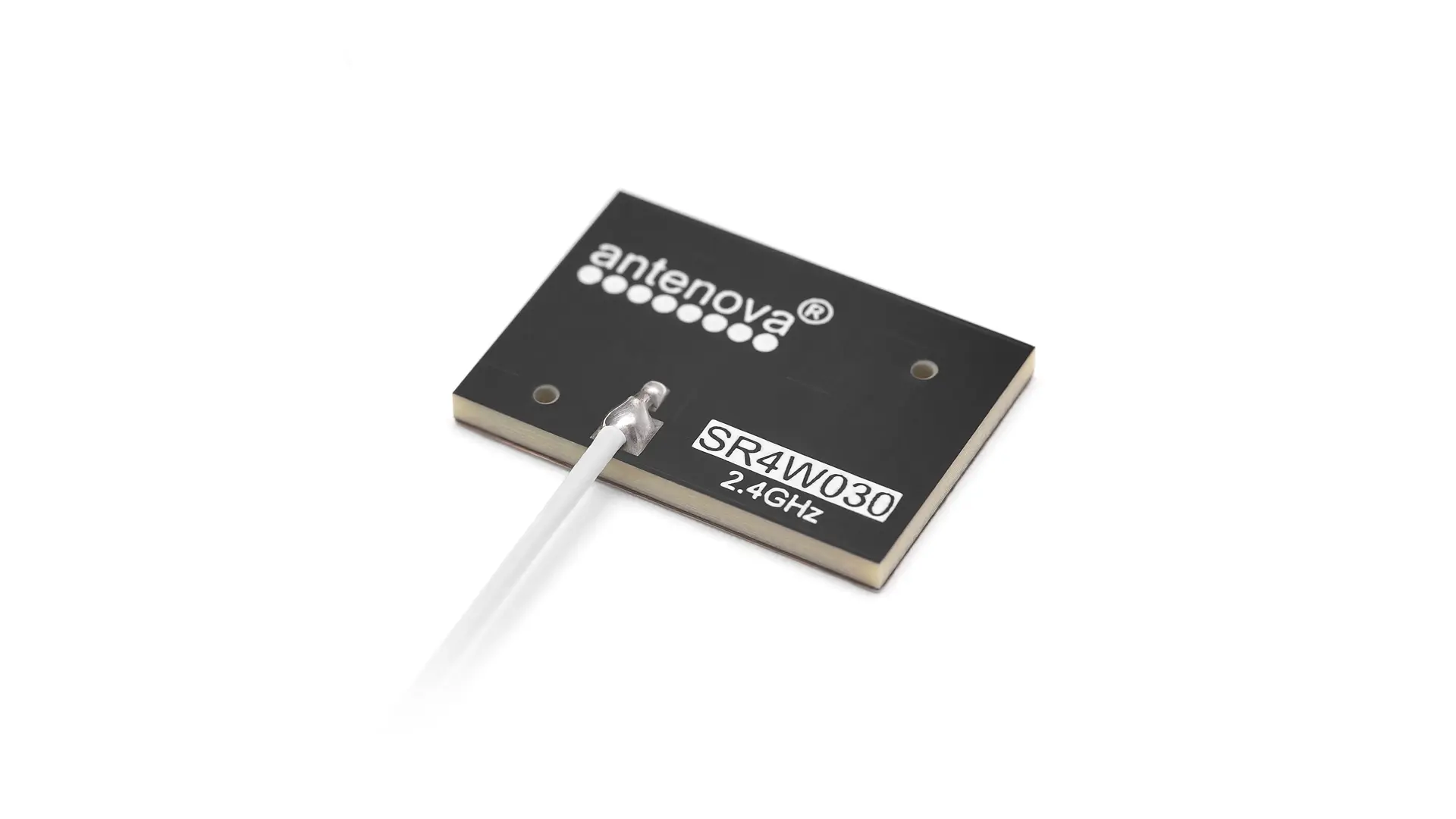

SR4W030 - Internal 2.4 GHz WIFI / Bluetooth® / ZigBee / ISM Passive Self-Adhesive Rigid PCB Antenna with Reflector technology allowing to use on metal
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Self-Adhesive Rigid PCB |
|---|---|
| Product P/N | SR4G031 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 23.0 × 16.0 × 1.6 |
| Operating temperature | -40 °C to +85 °C |
| Note | Reflector technology allowing to use on metal |
| Note | This product is compatible with Bluetooth® technology but does not incorporate Bluetooth® technology |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Frequency (MHz) | 2400-2500 |
|---|---|
| Return Loss (dB) | ~-8.0 (on Metal GND) |
| VSWR | ~2.3:1 (on Metal GND) |
| Efficiency (%) | ~50 (on Metal GND) |
| Average Gain (dB) | ~-3.0 (on Metal GND) |
| Peak Gain (dBi) | ~5.2 (on Metal GND) |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna designed to operate on metal surfaces, that uses Antenova’s layered technology to resist de-tuning in positions where a normal antenna will not operate. It’s easy to integrate – ideal to place inside small devices.
Key Features
Ground Plane Independent
Passive FR4 Chip Antenna
Reflector Antenna - works on Metal
5.2 dBi WIFI Peak Gain (on Metal GND)
up to 50% WIFI Efficiency
Applications
Embedded Antenna Solutions
Wearables
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
