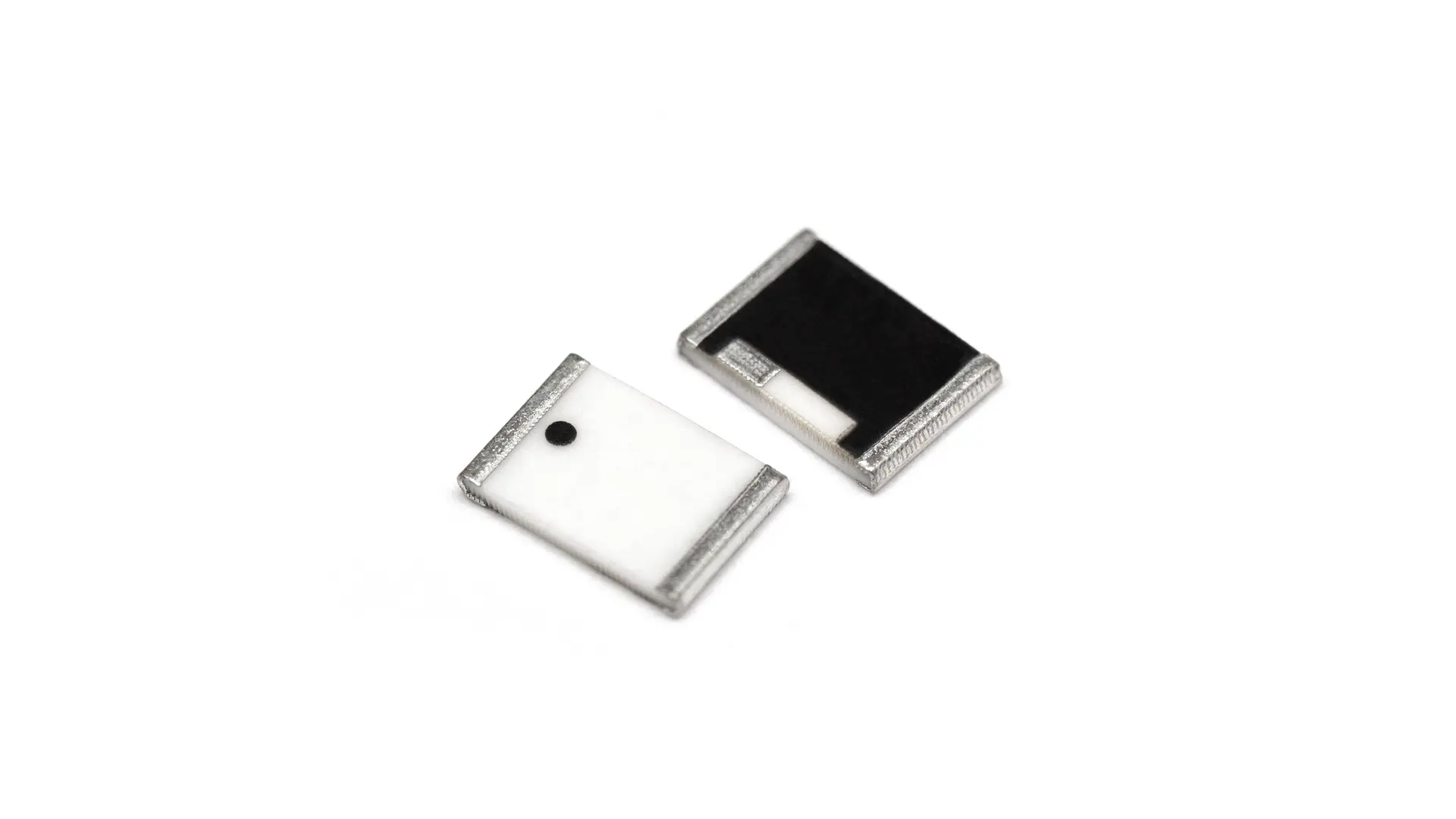

SRCI114 - Embedded 868 & 915 MHz ISM / Sigfox / LoRa / LPWA Passive Ceramic Chip Surface Mount SMD Loop Antenna
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | SMD Surface Mount Ceramic |
|---|---|
| Product P/N | SRCI114 |
| Antenna type | Passive Ceramic Loop |
| Dimensions (mm) | 5.2 × 3.7 × 0.7 |
| Operating temperature | -40 °C to +125 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 863-870, 902-928 |
|---|---|
| Return Loss (dB) | ~-16.6, ~-14.6 |
| VSWR | ~1.3:1, ~1.4:1 |
| Efficiency (%) | ~71.9,~80.7 |
| Average Gain (dB) | ~-1.4, ~-0.9 |
| Peak Gain (dBi) | ~3.3, ~4.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Garbei is a ceramic antenna for the 868/915MHz ISM bands. As a loop antenna, it is mounted in the centre of the long edge of the PCB. The recommended matching network component values are given to speed up design integration. The antenna can be matched to operate on a single band or matched for dualband operation. The frequency range covered is 863-870MHz for Europe and 902-928 MHz for North America.
Key Features
Passive Ceramic Chip Antenna
Ground Plane Dependent
4.2 dBi 868 / 915 MHz ISM Peak Gain
up to 80% 868 / 915 MHz ISM Efficiency
Compact Size
Surface Mount Ceramic Loop Antenna
Easy to Integrate
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
