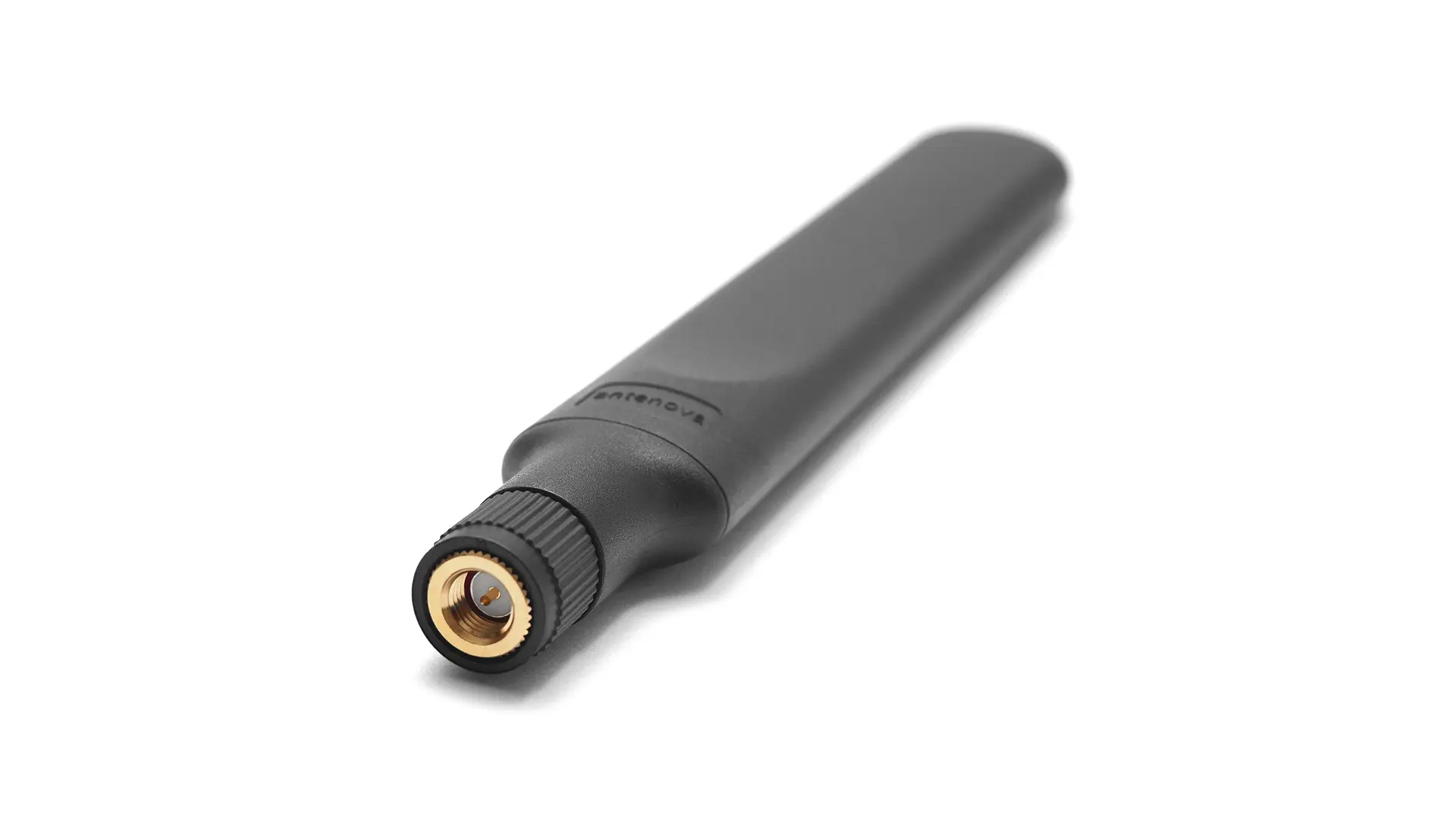

Check our latest 4G LTE antenna Inpai
Silvai
SRCI024 - Embedded 868 & 915 MHz ISM / Sigfox / LoRa / LPWA Passive Ceramic Chip Surface Mount SMD Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Surface Mount |
|---|---|
| Product P/N | SRCI024 |
| Antenna type | Passive Ceramic Chip |
| Dimensions (mm) | 1.0 × 0.5 × 0.5 |
| Operating temperature | -40 °C to +125 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 863-870, 902-928 |
|---|---|
| Return Loss (dB) | ~-17.7, ~-7.6 |
| VSWR | ~1.7:1, ~2.4:1 |
| Efficiency (%) | ~55,~70 |
| Average Gain (dB) | ~-2.6, ~-1.5 |
| Peak Gain (dBi) | ~0.3, ~1.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description

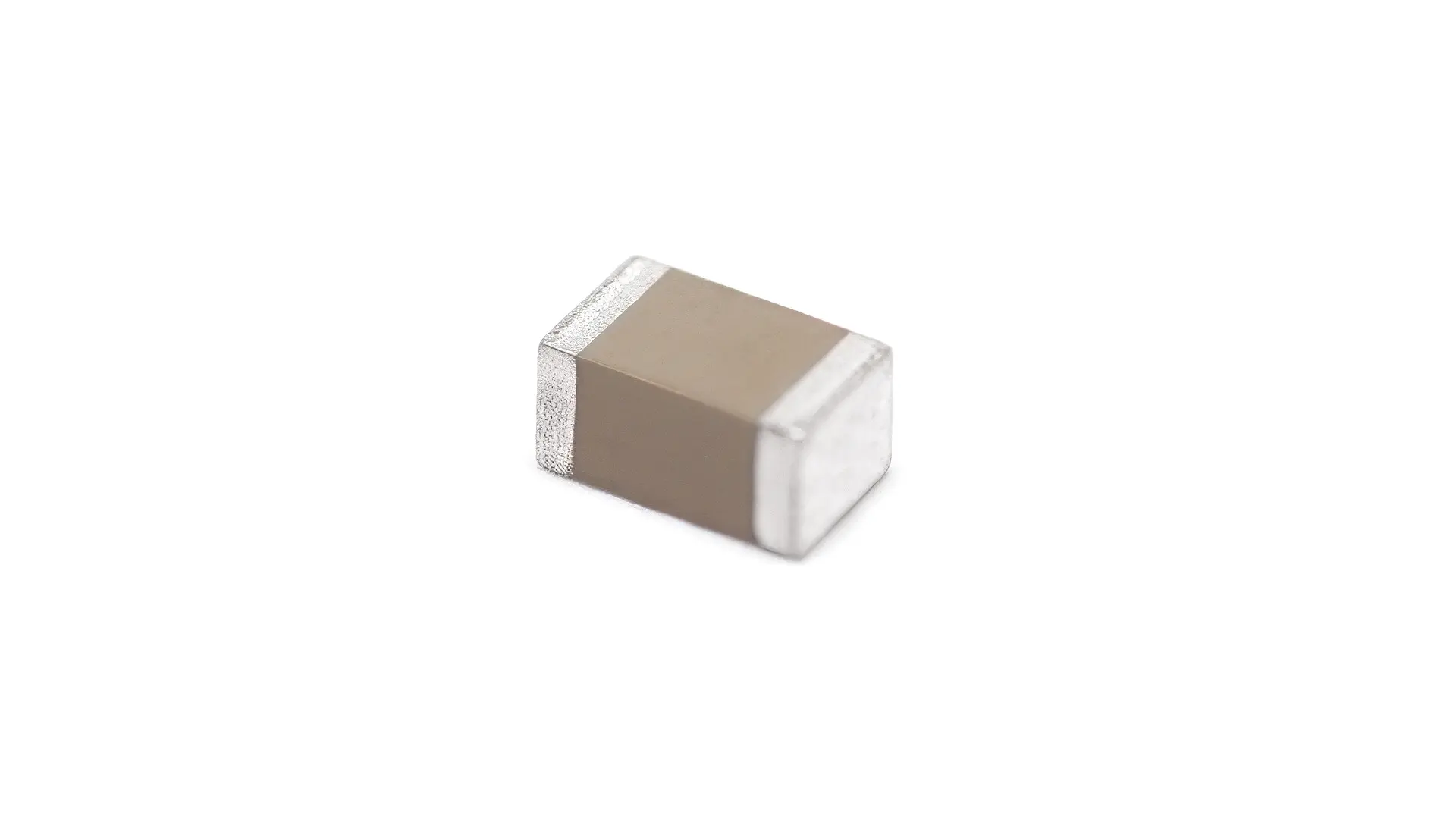

Silvai is a very small ceramic antenna that is fitted on a PCB. The PCB layout together with the matching circuit for both ISM bands (863 – 870MHz and 902 – 928MHz) is provided. Antenna clearance area for the PCB layout is 30mm x 11.5mm.
Key Features
Passive Ceramic Chip Antenna
Ground Plane Dependent
1.4 dBi 868 / 915 MHz ISM Peak Gain
up to 70% 868 / 915 MHz ISM Efficiency
Applications
Smart Home
IoT - Internet of Things
Smart Cities
Industrial IoT & Monitoring
Medical and Healthcare
Retail Services
Transportation
Hazard Mitigation
Machine Control
Automation
Mining Industry
Logistics
Asset Tracking and Security
Civil Applications
Road Applications
Autonomous Applications
Home Applications
Automotive
Data Processing
Remote Monitoring and Control
Wireless Security System
Sensor Reporting
Car Security System
Remote Keyless Entry
RFID devices
Energy Monitoring
Smart Metering
Smart Lighting
Air Quality and Pollution Monitoring
Smart Parking and Vehicle Control
Infrastructure Management
Fire Detection and Management
Waste Management
Water Metering & Management
Street Lighting
Product Tracking
Toll Road Payments
Telemetry / Telematics
Manufacturing
Smart Grid
Electricity Metering & Management
Resources Management
Low Power Wide-Range Networks
Utilities
Consumer Electronics
Robotics
Drones and UAV´s
Embedded Antenna Solutions
Wearables
