Latona-L

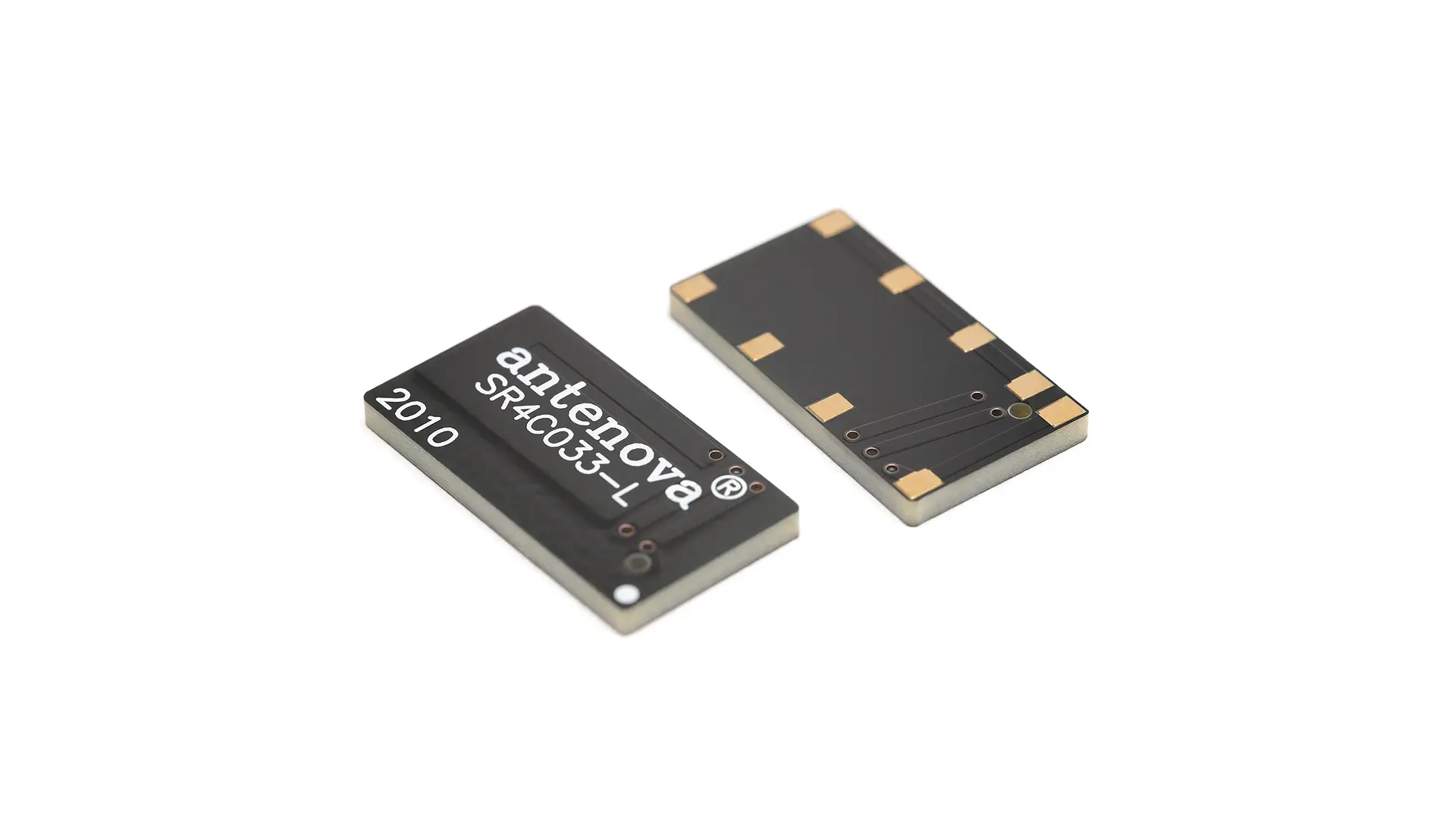

SR4C033-L - Embedded 3G / Cellular Passive FR4 Chip Surface Mount SMD Antenna
1×
3G / Cellular
| Mounting | SMD Surface Mount Rigid |
|---|---|
| Product P/N | SR4C033-L |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 20.0 × 11.0 × 1.6 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
3G / Cellular
| Frequency (MHz) | 791-862, 824-960 |
|---|---|
| Return Loss (dB) | ~-9.0, ~-7.0 |
| VSWR | ~2.1:1, ~2.6:1 |
| Efficiency (%) | ~60,~65 |
| Average Gain (dB) | ~-1.5, ~-1.5 |
| Peak Gain (dBi) | ~0.5, ~0.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Latona is for LP-WAN applications including NB-IoT, LoRa, SigFox, ISM where a small robust antenna is needed. It uses an innovative space-saving design and is placed in a corner. We offer Left and Right options so that you can optimise placement.
Key Features
Optimised for European Cellular Bands
Passive FR4 Chip Antenna
Ground Plane Dependent
0.8 dBi CELLULAR Peak Gain
up to 65% CELLULAR Efficiency
791-960 MHz Frequency Range
Applications
Embedded Antenna Solutions
Cellular & Wireless
Industrial & Automation
