Zhengi

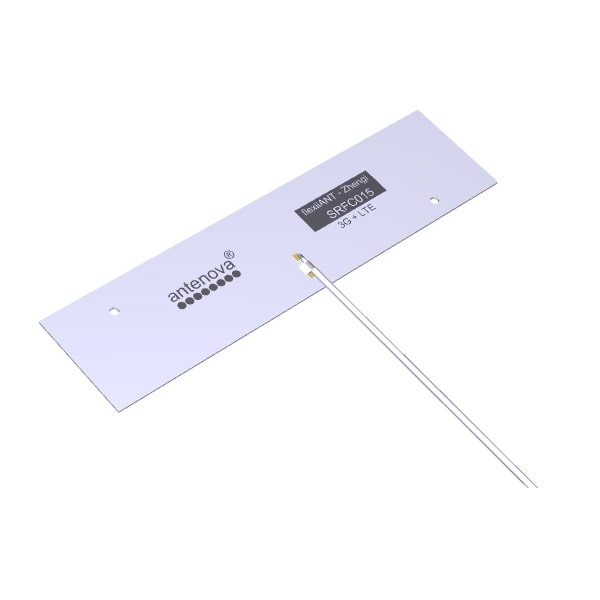

SRFC015 - Internal 4G LTE / Cellular / LPWA / NB-IoT Passive Self-Adhesive Flexible PCB Antenna
1×
4G LTE / Cellular / LPWA / NB-IoT
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFC015-100 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 80.0 × 20.0 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
| Note | Default Cable Length is 100mm |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
4G LTE / Cellular / LPWA / NB-IoT
| Frequency (MHz) | 824-960, 1710-1990, 2110-2170, 2300-2400, 2500-2690 |
|---|---|
| Return Loss (dB) | ~-5.4, ~-6.0, ~-8.0, ~-5.5, ~-6.0 |
| VSWR | ~3.3:1, ~2.9:1, ~2.1:1, ~3.2:1, ~2.9:1 |
| Efficiency (%) | ~50,~65,~50,~50,~65 |
| Average Gain (dB) | ~-2.5,~-1.5,~-2.5,~-2.5,~-1.5 |
| Peak Gain (dBi) | ~0.5,~4.0,~3.5,~3.8,~5.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Antenna for 3G, 4G, and LTE applications, and covers all of the 3G bands, along with LTE bands B7, B30, B38, B40, and B41. Ideal for smart meters, Pico-basestations, telematics, remote monitoring, point of sale terminals, and IoT applications. Available in 100mm and 200mm cable lengths. Other cable lengths are available, but minimum order quantities apply.
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Wide band 4G LTE Antenna
5.0 dBi 4G LTE Peak Gain
up to 65% 4G LTE Efficiency
824-2690 MHz Frequency Range
Customizable Cable and Connector
