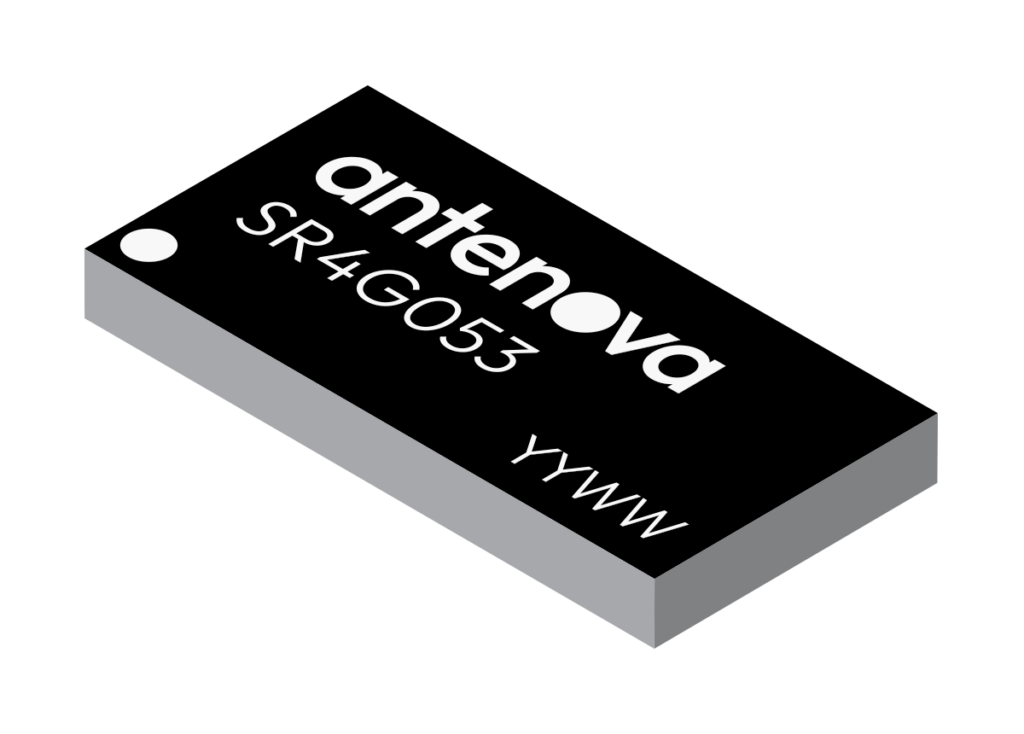

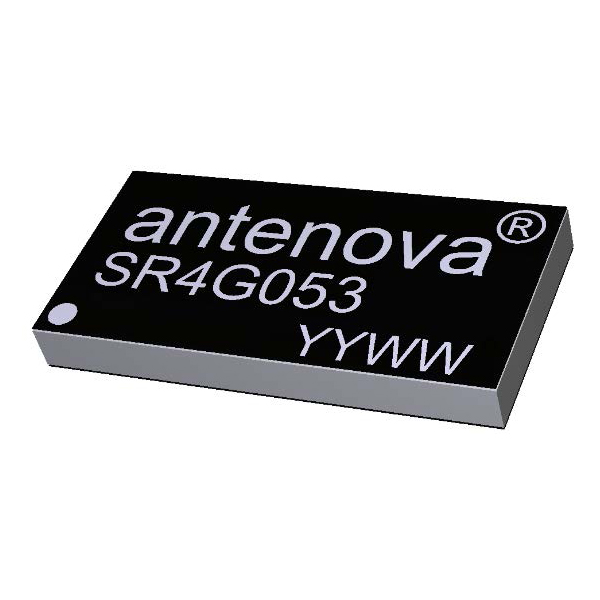

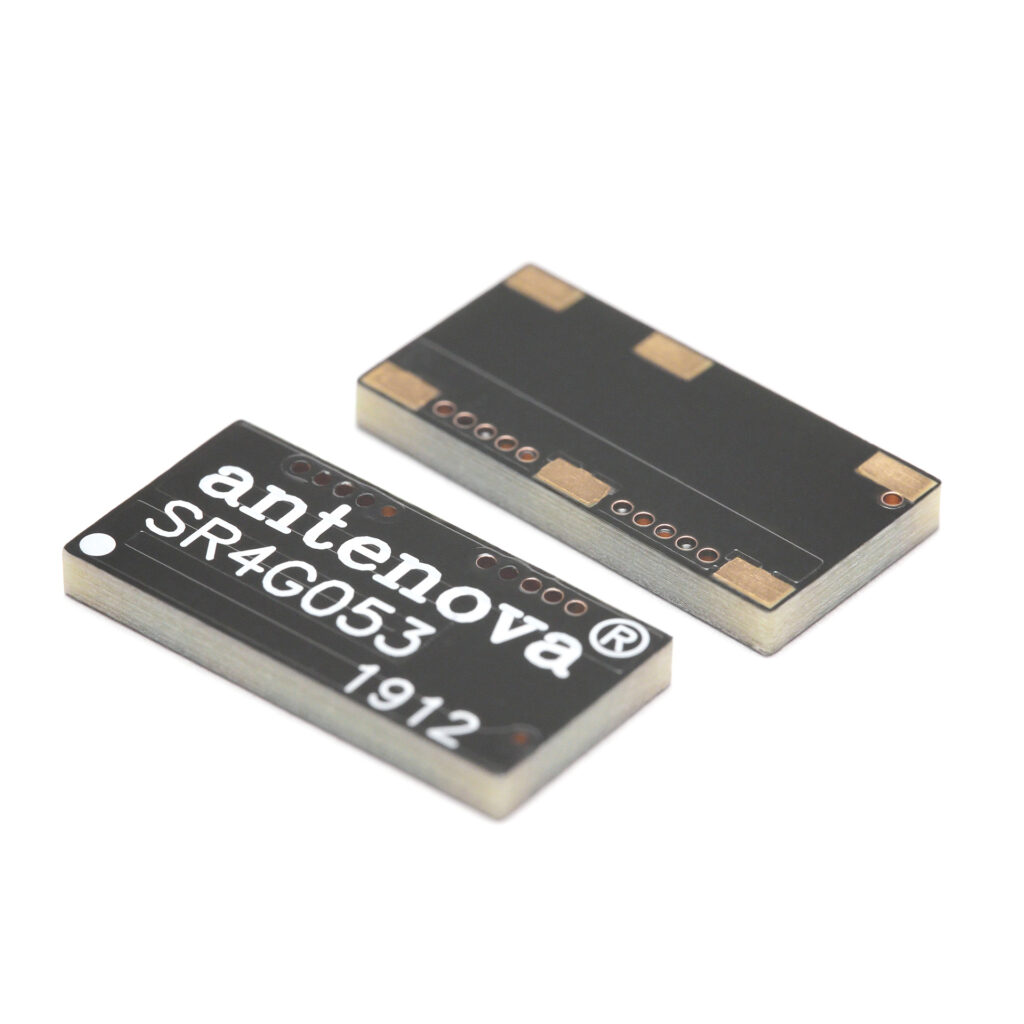

SR4G053 - Embedded High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5 Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4G053 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 16.0 × 8.0 × 1.7 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
High Precision GPS / GLONASS / BeiDou - L1 / L2 / L5
| Frequency (MHz) | 1164-1249, 1559-1610 (L5, L2, L1) |
|---|---|
| Return Loss (dB) | ~-8.5, ~-7.5 |
| VSWR | ~2.3:1, ~2.4:1 |
| Efficiency (%) | ~75,~65 |
| Average Gain (dB) | ~-0.9, ~-1.5 |
| Peak Gain (dBi) | ~2.3, ~2.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Raptor is an ultra-low profile antenna with RHCP to receive GNSS signals. It has comparable performance to a ceramic patch antenna. This makes it perfect for small trackers, wearables, drones, and any other positioning applications.
It is designed for easy integration and is placed on the shortest side of your PCB, at the left side edge.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
up to 75% GNSS Efficiency
2.3 dBi GNSS Peak Gain
L1 / L2 / L5 Multi-Band-Constellation
