Lama

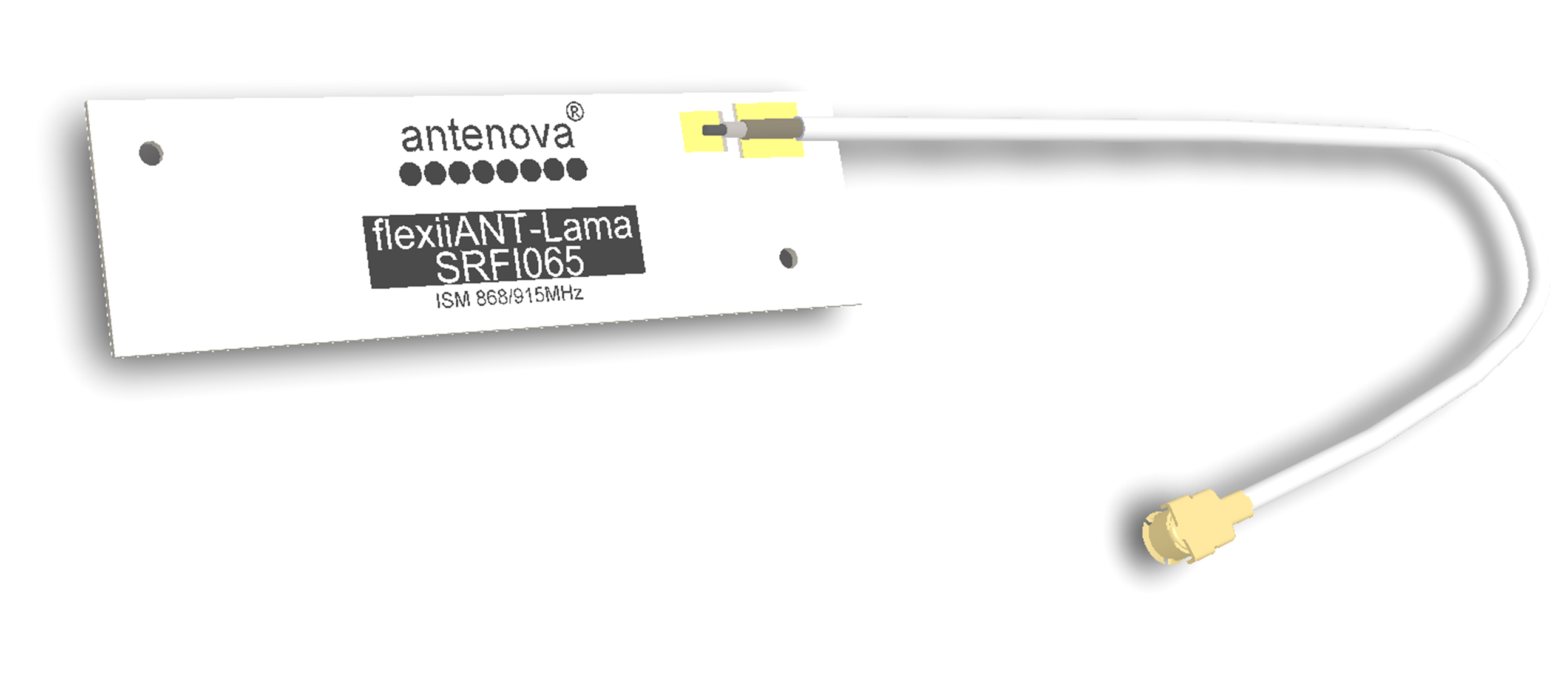

SRFI065 - Internal 868 & 915 MHz ISM / Sigfox / LoRa / LPWA Passive Self-Adhesive Flexible PCB Antenna
Connections (1)
1×
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Mounting | Self-Adhesive Flexible PCB |
|---|---|
| Product P/N | SRFI065 |
| Antenna type | Passive Flexible PCB |
| Dimensions (mm) | 35 × 10 × 0.15 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
868 & 915 MHz ISM / Sigfox / LoRa / LPWA
| Frequency (MHz) | 863-870, 902-928 |
|---|---|
| Return Loss (dB) | ~-15.0, ~-15.0 |
| VSWR | ~1.5:1, ~1.5:1 |
| Efficiency (%) | ~52,~52 |
| Average Gain (dB) | ~-2.84, ~-2.78 |
| Peak Gain (dBi) | ~0.82, ~1.33 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
Lama is a flexible PCB antenna with a cable that connects to the host PCB giving easy integration. The antenna covers both ISM bands (863 – 870MHz and 902 – 928MHz).
Key Features
Passive Flexible PCB Antenna
Ground Plane Independent
Customizable Cable and Connector
1.33 dBi 868 / 915 MHz ISM Peak Gain
up to 52% 868 / 915 MHz ISM Efficiency
Applications
Embedded Antenna Solutions
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Agriculture & Environmental
Energy & Utilities
