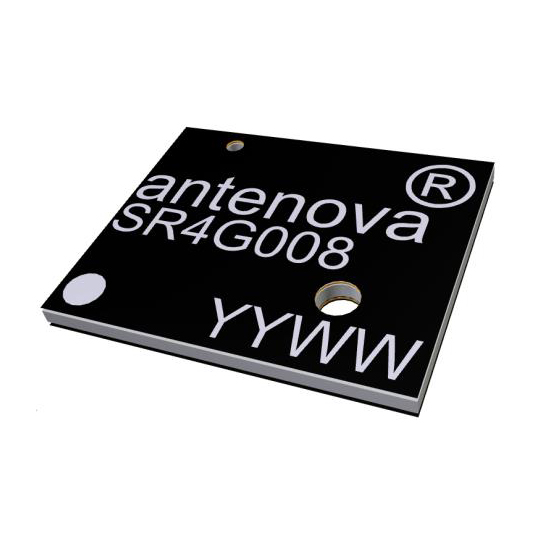

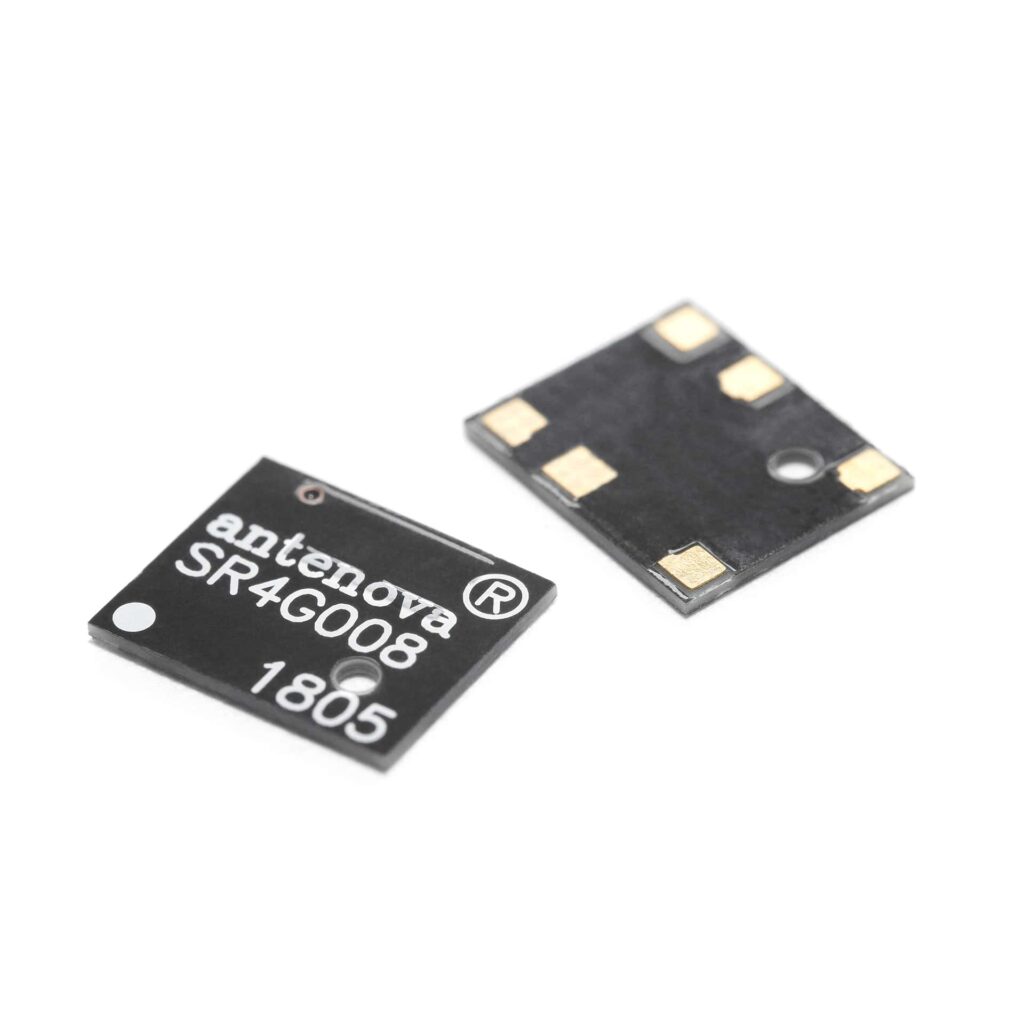

SR4G008 - Embedded GPS / GLONASS / BeiDou / QZSS / Galileo - L1 Passive FR4 Chip Surface Mount SMD Antenna
Connections (1)
1×
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Mounting | Surface Mount |
|---|---|
| Product P/N | SR4G008 |
| Antenna type | Passive FR4 Chip |
| Dimensions (mm) | 7.0 × 5.8 × 0.4 |
| Operating temperature | -40 °C to +140 °C |
Global Delivery
Ready to Ship
Easy Integration
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Frequency (MHz) | 1559-1610 |
|---|---|
| Return Loss (dB) | ~-12.0 |
| VSWR | ~1.4:1 |
| Efficiency (%) | ~60 |
| Average Gain (dB) | ~-2.1 |
| Peak Gain (dBi) | ~1.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
Antenna Description
A novel embedded antenna covering GPS / GLONASS / BEIDOU / GALILEO bands.
Key Features
Ground Plane Dependent
Passive FR4 Chip Antenna
up to 60% GNSS Efficiency
1.5 dBi GNSS Peak Gain
Applications
Embedded Antenna Solutions
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
